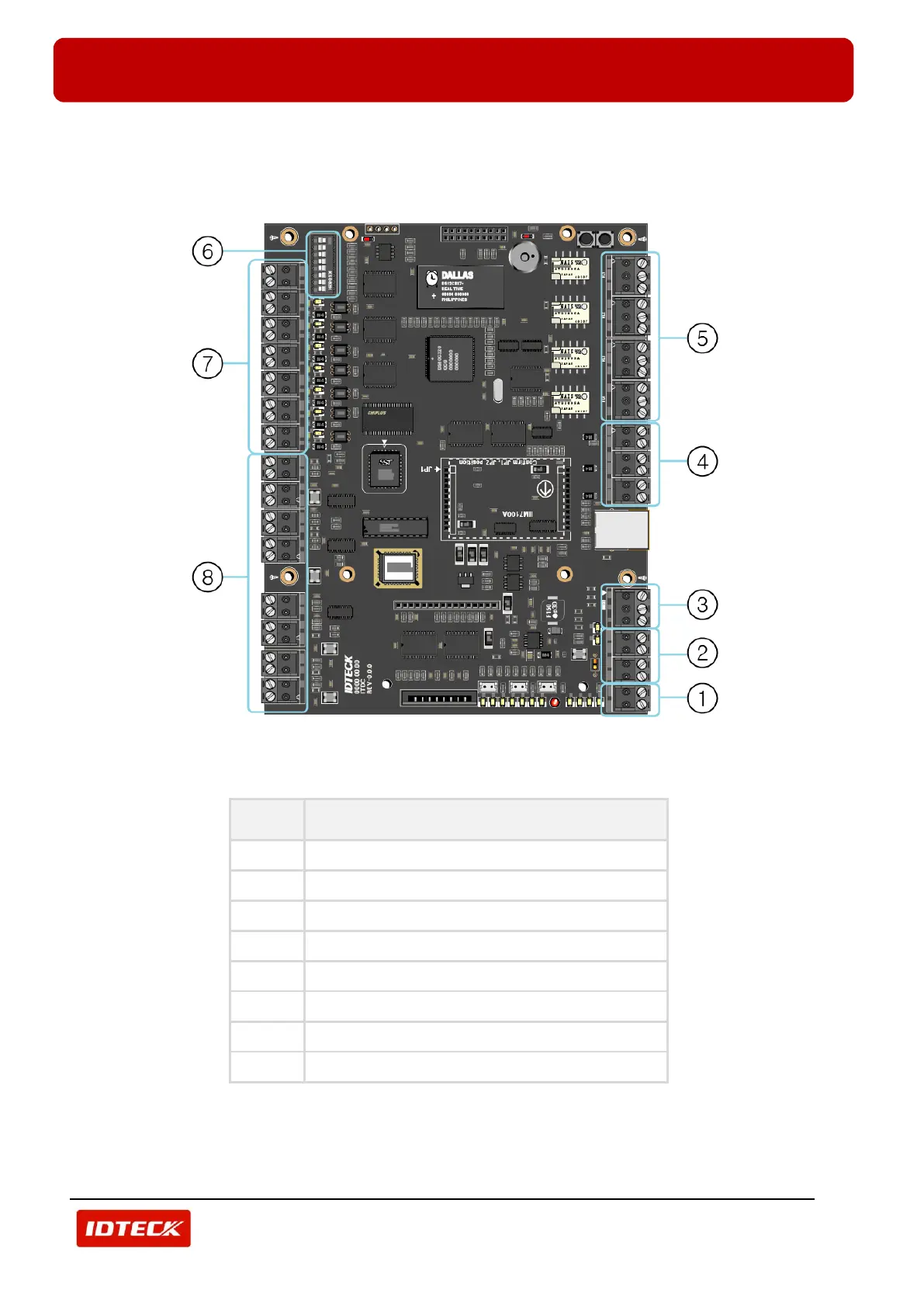

1.4 WIRING PARTS CODE
1.2.1 iTDC/iTDC-SR
]
No.
Code
①
Power Port Terminal Block
②
RS422 Communication Port Terminal Block
③
RS232 Communication Port Terminal Block
④
TTL Output Port Terminal Block
⑤
Relay Output Port Terminal Block
⑥
Board ID Setting Switch
⑦
Input Port Terminal Block
⑧
Reader Port Terminal Block
