Press
Select Display operation:
On = Full Display
Off = Minimal display
Display On
Display Off
See Page 20
MODE
NOTE: Each step
# is located at the
top right corner of
the display for easy
reference.
Press the MODE and
FAN buttons at the
same time for 10
seconds to enter
Advanced Setup
screens.

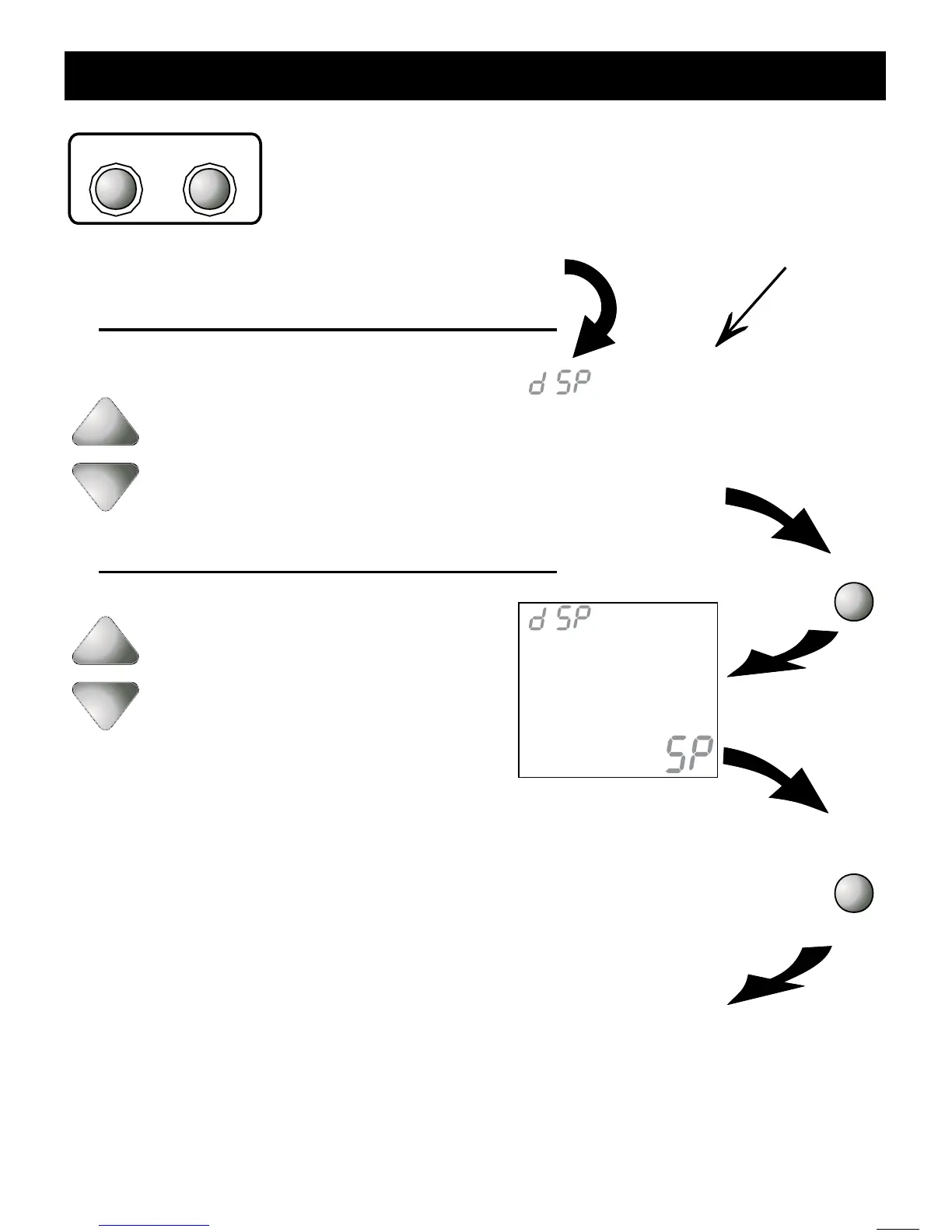

Advanced Setup
MODE FAN
I
ON
Setup
Press
MODE
Continued
Page 10
Select Display operation:
1 = Single Setpoint
2 = Dual Setpoint
See Page 24
cooling setpoint will always be displayed. To
display the room temperature, press and hold
the MODE button for two seconds. The
degree icon will blink when the large number
is displaying room temperature and will
remain solid when displaying the heating or
cooling setpoint.
2
Setup
2
Note: When Single Setpoint
is selected, the heating or
Advanced Setup
Select fan coil system
type:
2 = 2-pipe fan coil
4 = 4-pipe fan coil
4
2
Step #4 only appears if step #3 = 2.
2-PIPE SYSTEM OPERATION
1= Heat only system
2= Cool only system
3= Heat/Cool Auto
changeover
4= Heat/Cool Aux Electric
heat, Lockout Electric Heat
when Hot Water is available
5= Heat/Cool total electric
heat, no Hot Water, only
Electric Heat.
Note: #3 & #4 require accessory
changeover sensor
4
3
Setup
Press
MODE
Press
MODE
Continued
I
4
Setup
Page 11
On
Off
See Page 20, Note #2
Select operation when
fan is in the Auto mode:
On = continuous low
speed fan
Off = only energize
during a heating or
cooling cycle.
5
AUTO
Press
MODE
To Next Page
