Display
OUTSIDE
unoccupied
5
6
7
8
5
6
7
8

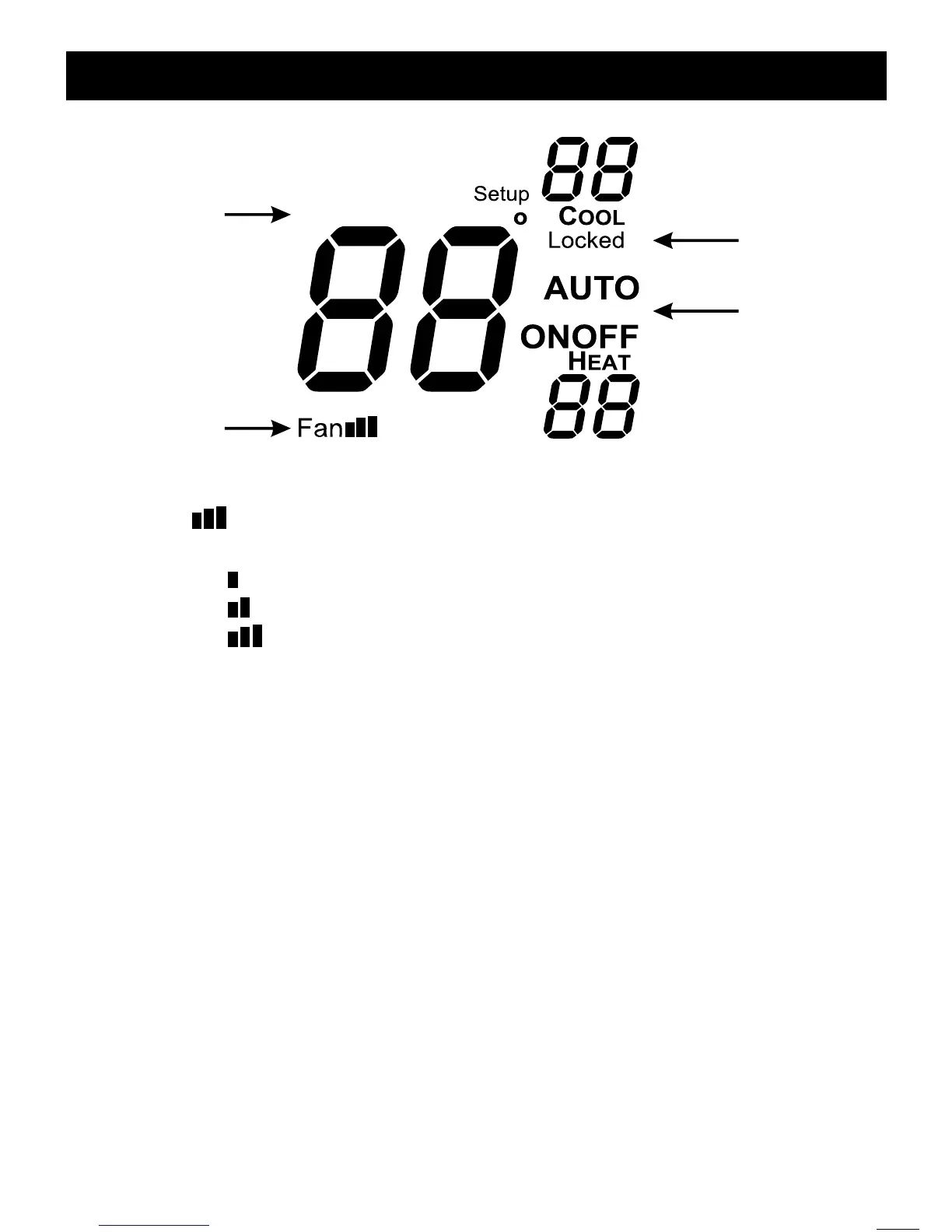

Fan icon - Page 9
Indicates fan operation.
Fan = low speed
Fan = medium speed
Fan = high speed
When only the Fan icon is displayed, the fan is in
the Auto mode and will run only when necessary to
heat or cool.
Locked icon - Page 21
Indicates keypad has been locked.
Outside icon - Pages 13 & 22
Indicates the temperature displayed is from the
optional outside sensor.
Unoccupied icons - Pages 13-14
Indicates a dry contact forced Unoccupied time
period is in effect.
Page 4
70
68
HEAT
70
76
COOL
70
76
68
COOL
HEAT
AUTO
70
OFF
Press
MODE
Press
Press
MODE
MODE
Page 5
The HEAT setting indicates
the temperature the room
has to reach before the
heating source will turn
on to heat the room.
Heating Only
The COOL setting indicates
the temperature the room
has to reach before the
cooling source will turn
on to cool the room.
Cooling Only
OFF indicates both heating
and cooling are turned off.
Off
AUTO will automatically
select heat or cool based
on room temperature
demand.
Heating or Cooling
Select Mode by Pressing the MODE Button
Selecting the Heat or Cool Mode 4-Pipe Operation
To Next Page
