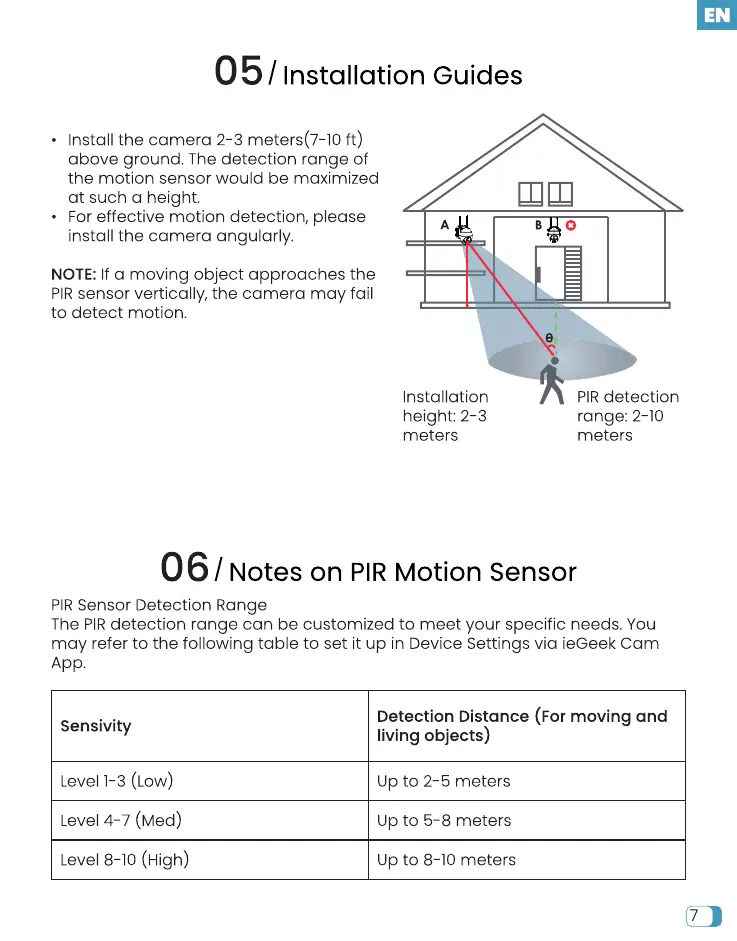

05/ Installation Guides
• Install the camera 2-3 meters(7-lO ft)
above ground. The detection range of
the motion sensor would be maximized
at such a height.
• For effective motion detection, please
install the camera angularly.
NOTE: If a moving object approaches the
PIRsensor vertically, the camera may fail
to detect motion.
Installation
height: 2-3
meters
o
B
PIR detection
range: 2-10
meters
06/ Notes on PIRMotion Sensor
PIRSensor Detection Range
The PIRdetection range can be customized to meet your specific needs. You
may refer to the following table to set it up in Device Settings via ieGeek Cam
App.
Sensivity
Level 1-3 (Low)
Level
Level8-10 (High)
Detection Distance(Formoving and
living objects)
Up to 2-5 meters
Up to 5-8 meters
Up to 8
-10 meters
