IEI Technology IMB-9454G-R20 User Manual

IMB-9454G Motherboard

11
Serial port 6 IRQ address is 11
5.3.5 Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 8) shows the operating
temperature, fan speeds and system voltages.

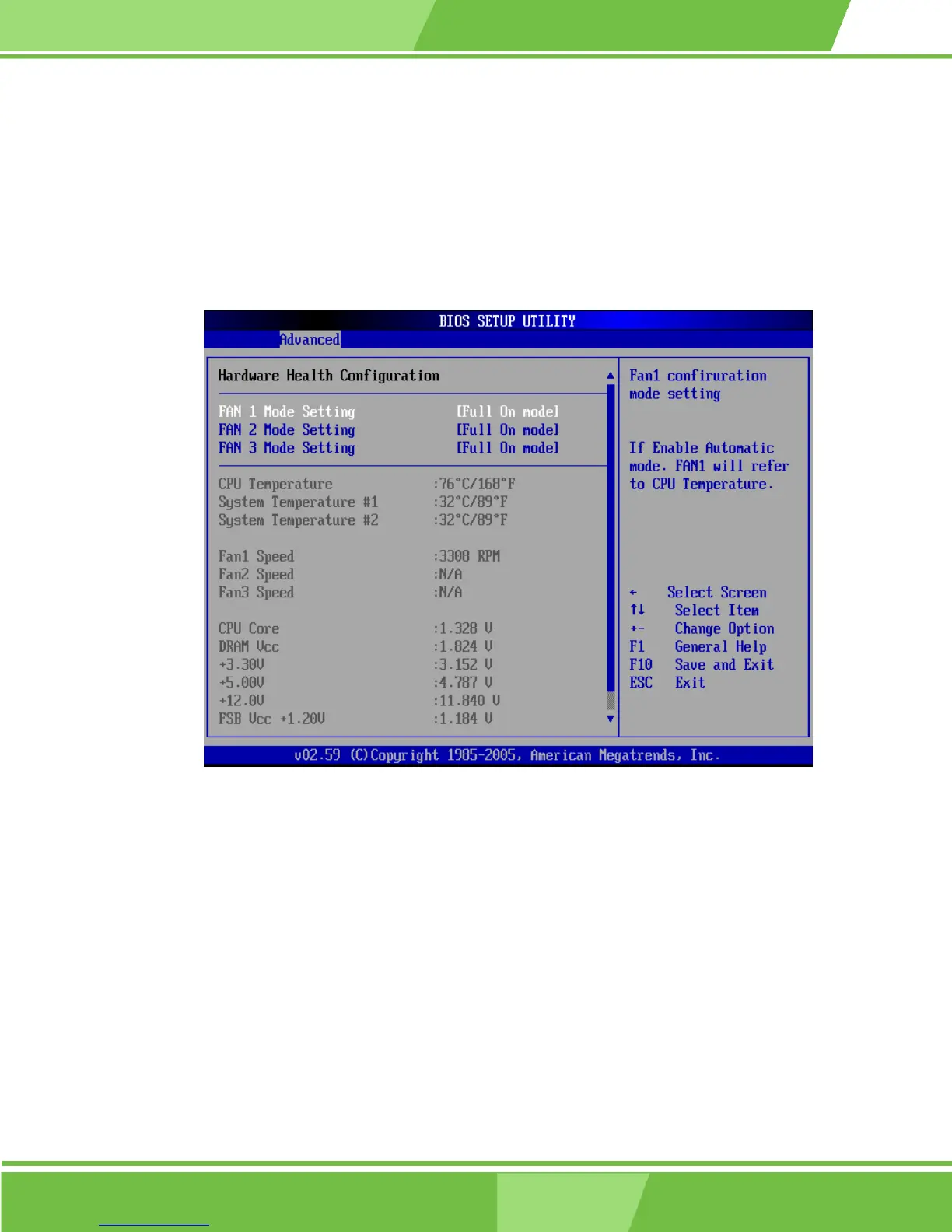

BIOS Menu 8: Hardware Health Configuration
 FAN 1 Mode Setting: [Full On]
The FAN 1 Mode Setting has the following options:

Full On DEFAULT
If selected, there are no additional configurable options.

Automatic
Mode
If selected, the following options will appear with values
that can be configured:
 Temperature 1 Limit of OFF
Page 110
IEI
®
Technology, Corp.

IEI Technology IMB-9454G-R20 Specifications

General

Form Factor	ATX
Processor Socket	LGA 775
Audio	Realtek ALC662
Parallel Port	1
Power Supply	ATX
Memory Slots	4
Expansion Slots	1 x PCI
LAN	1 x Gigabit Ethernet
Graphics	Integrated Intel Graphics
Serial Ports	2 x RS-232
Operating Temperature	0°C ~ 60°C
