13
10
K
M
N
76
L
A
80
72
75

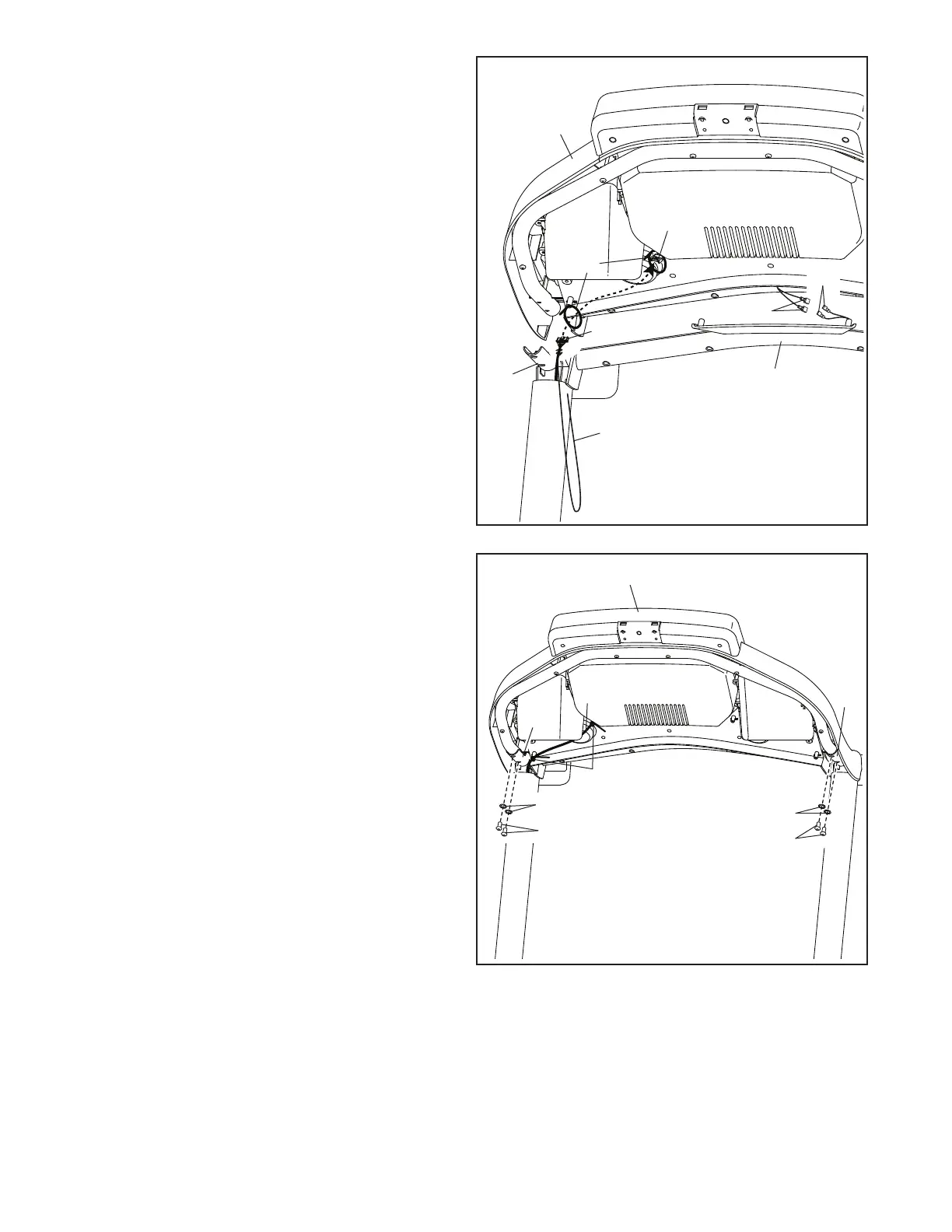

10. With the help of a second person, hold the con-
sole assembly (K) near the Handrails (72).
Connect the ground wires (L) from the console
assembly (K) to the Console Ground Wires (76)
on the Crossbar (75).
Next, insert the Upright Wire (80) through the
two indicated looped ties (M).
Then, connect the Upright Wire (80) to the
console wire (N). The connectors should slide
together easily and snap into place with an
audible click. If they do not, turn one con-
nector and try again. Then, remove the wire tie
(A) from the Upright Wire.
11. Set the console assembly (K) on the Handrails
(72). Make sure that no wires are pinched.
Insert the excess Upright Wire (80) into the con-
sole assembly (K). Then, tighten the two ties (M)
around the Upright Wire and cut off the ends of
the ties.
Attach the console assembly (K) with the four
5/16" x 3/4" Screws (13) that you removed in
step 8 and four 5/16" Star Washers (7); do not
tighten the Screws yet.
11
K
M
13
7
13
7
80
72
72
To Next Page
