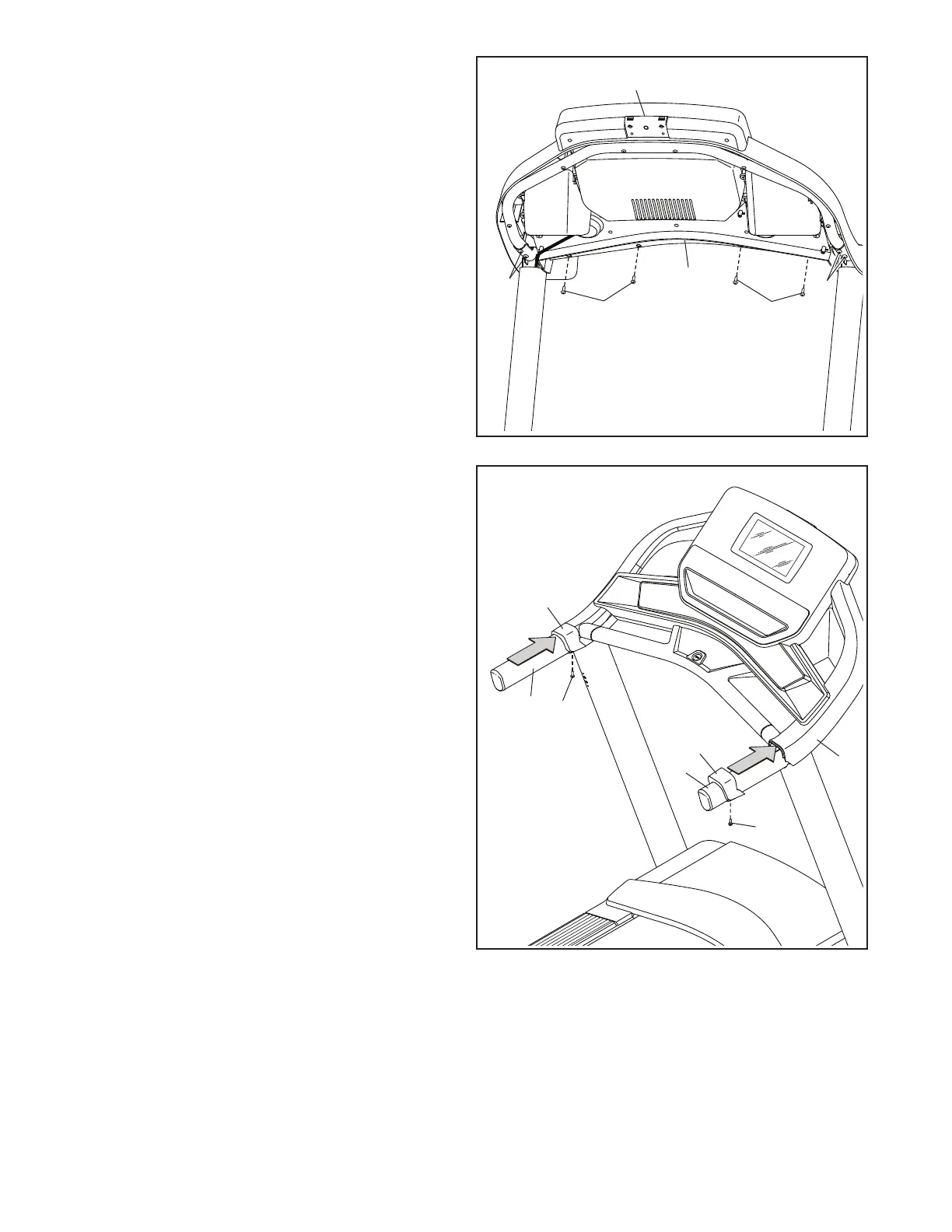

12. Attach the Crossbar (75) to the console assem-
bly (K) with four #8 x 3/4" Screws (11); start all
four Screws, and then tighten them. Do not
overtighten the Screws.
Then, firmly tighten the four 5/16" x 3/4"
Screws (13).
12
K
13
75
11
11
13
13. Slide the Right Handrail Cover (71) onto the right
Handrail (72) and against the console assembly
(K). Then, tighten a #8 x 3/4" Screw (11) into
the bottom of the Right Handrail Cover. Do not
overtighten the Screw.
Attach the Left Handrail Cover (70) to the left
Handrail (72) as described above.
11
13
72
72
71
70
11
K
