12

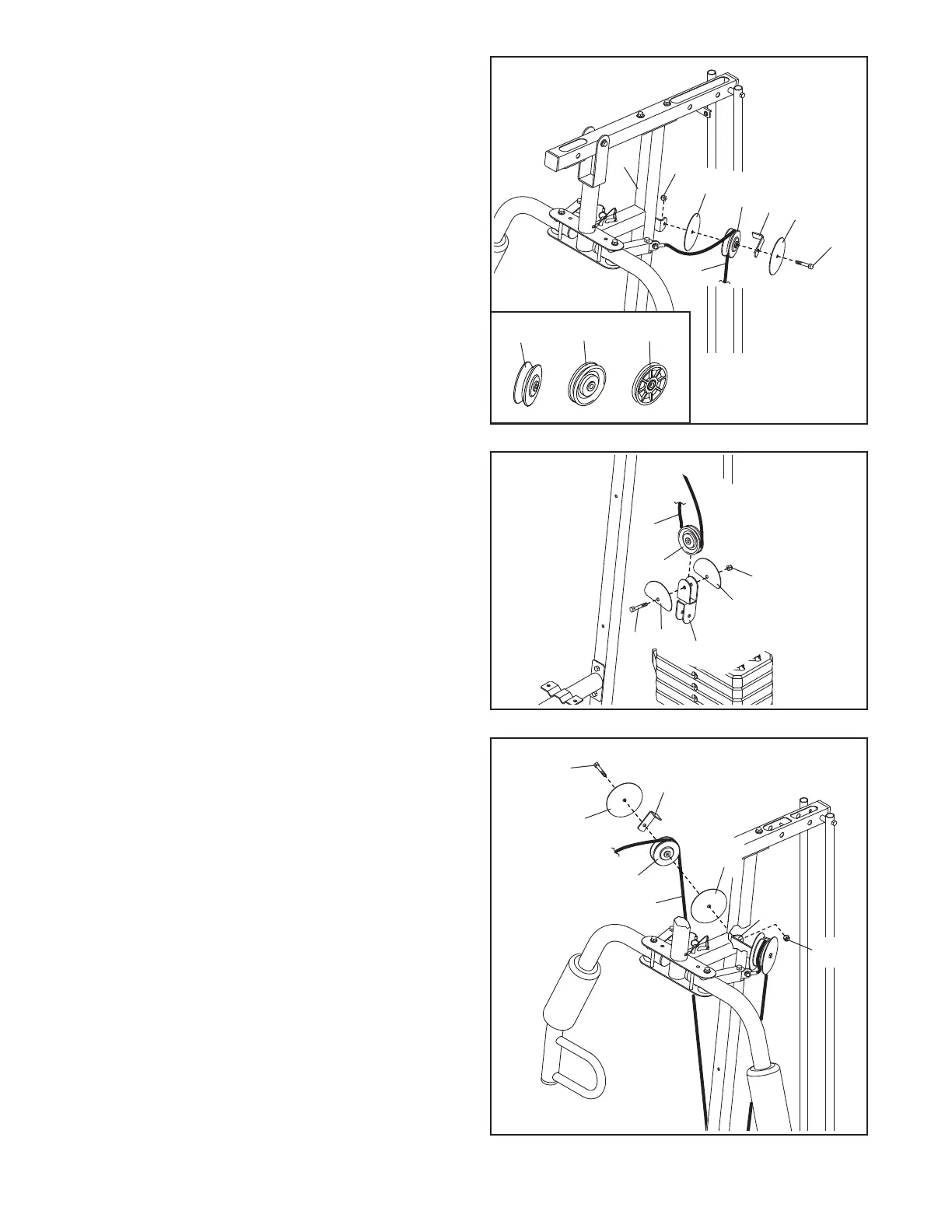

13. IMPORTANT: Identify the two V-pulleys (46), the
nine Pulleys (48), and the two Thin Pulleys (47).
Tip: It may be helpful to refer to the EXPLODED
DRAWING near the end of this manual to
identify the locations of the pulleys.
Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley (46), a Cable Trap (50), and
two Full Guards (41) to the Upright (3) with an
M10 x 63mm Bolt (75) and an M10 Locknut (56).
Make sure that the Cable Trap (50) is oriented
to hold the Arm Cable (54) in the groove of the
V-pulley (46).
15. Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley (46), a Cable Trap (50), and
two Full Guards (41) to the Upright (3) with an
M10 x 63mm Bolt (75) and an M10 Locknut (56).
Make sure that the Cable Trap (50) is oriented
to hold the Arm Cable (54) in the groove of the
V-pulley (46).
14. Route the Arm Cable (54) under a Pulley (48).
Attach the Pulley (48) and two Half Guards (43)
to the Double U-bracket (63) with an M10 x 45mm
Bolt (81) and an M10 Locknut (56). Make sure
that the Half Guards are on the outside of the
U-bracket as shown.
48
43
43
63
81
56
54
56
3
46
50
41
75
54
41
13
14
56
3
46
50
75
54
41
15
41
48 47
46
