14

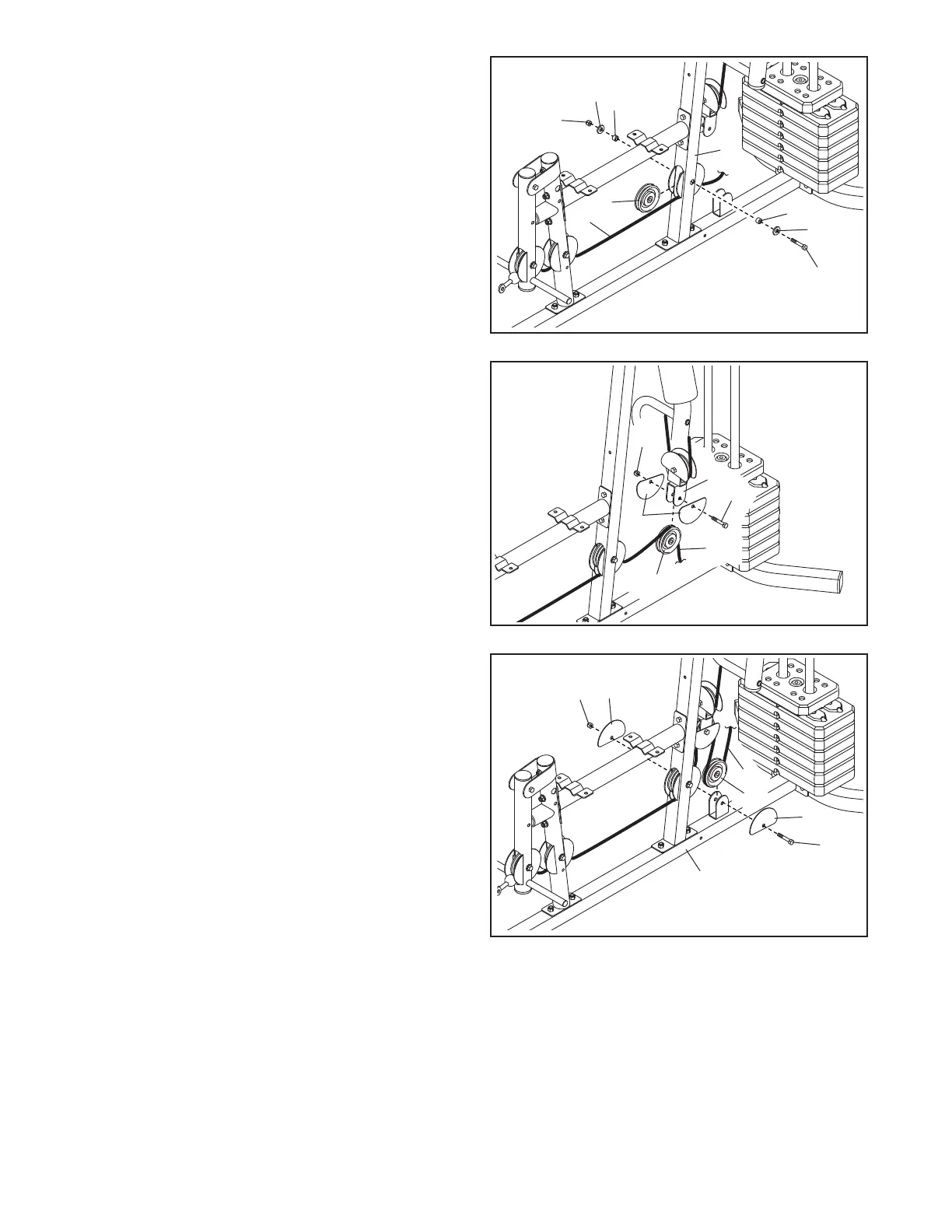

19. Route the Low Cable (53) under a Pulley (48) and
through the Upright (3).
Attach the Pulley (48) inside the Upright (3) with an
M10 x 68mm Bolt (71), two M10 Washers (57), two
13mm Spacers (52), and an M10 Locknut (56).
20. Route the Low Cable (53) over a Pulley (48).
Attach the Pulley (48) and two Half Guards (43)
to the Double U-bracket (63) with an M10 x 45mm
Bolt (81) and an M10 Locknut (56). Make sure
that the Half Guards are on the outside of the
U-bracket as shown.
43
20
56
3
53
52
52
57
57
48
71
19
21. Route the Low Cable (53) under a Pulley (48).
Attach the Pulley (48) and two Half Guards (43)
to the Base (1) with an M10 x 45mm Bolt (81) and
an M10 Locknut (56). Make sure that the Half
Guards are on the outside of the bracket as
shown.
43
1
43
81
56
21
63
81
48
56
53
48
53
To Next Page
