iFIT WEIDER 2980 X - Seat and Backrest Installation

17

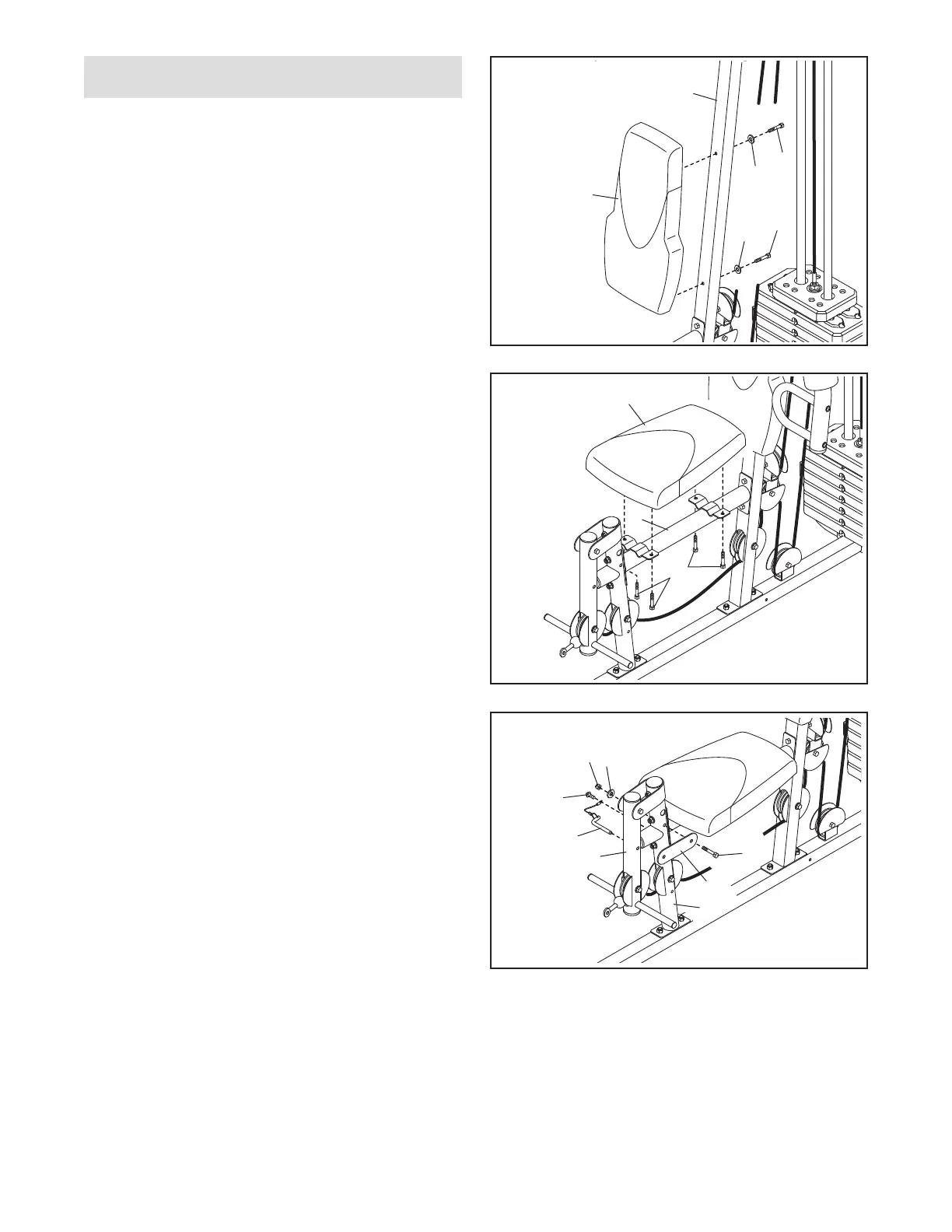

29. Attach the Backrest (16) to the Upright (3)
with two M6 x 65mm Screws (70) and two M6
Washers (80).
30. Attach the Seat (15) to the Seat Frame (6) with
four M6 x 16mm Screws (62).
Seat Assembly
15
62
6
30
70
70
80
80
3
29
31. Attach the Lock Plate (73) to the Front Leg (7) with
an M10 x 68mm Bolt (71), an M10 Washer (57),
and an M10 Locknut (56). Do not overtighten the
Locknut; the Lock Plate must pivot easily.
Next, attach the Leg Lever Pin (38) to the
Front Leg (7) with an M4 x 19mm Self-tapping
Screw (69).
Then, insert the Leg Lever Pin (38) through the
Leg Lever (8) and the Lock Plate (73).
56
57
69
38
8
31
16
73
7
71
