iFIT WEIDER 2980 X - Frame Assembly

8
3. Orient the two Weight Guides (21) so that the
indicated holes (A) are closer to the lower ends.
Attach the Weight Guides (21) and the
Stabilizer (2) to the Base (1) with two M10 x 68mm
Bolts (71), two M10 Washers (57), and two M10
Locknuts (56). Fully tighten the Locknuts.
Then, attach the Upright (3) to the Base (1) with
the two indicated M8 x 58mm Carriage Bolts (64)
and two M8 Locknuts (58); do not tighten the
Locknuts yet.
64
56
58
3
1
58
71
71
2
57
57
21
A
21
3

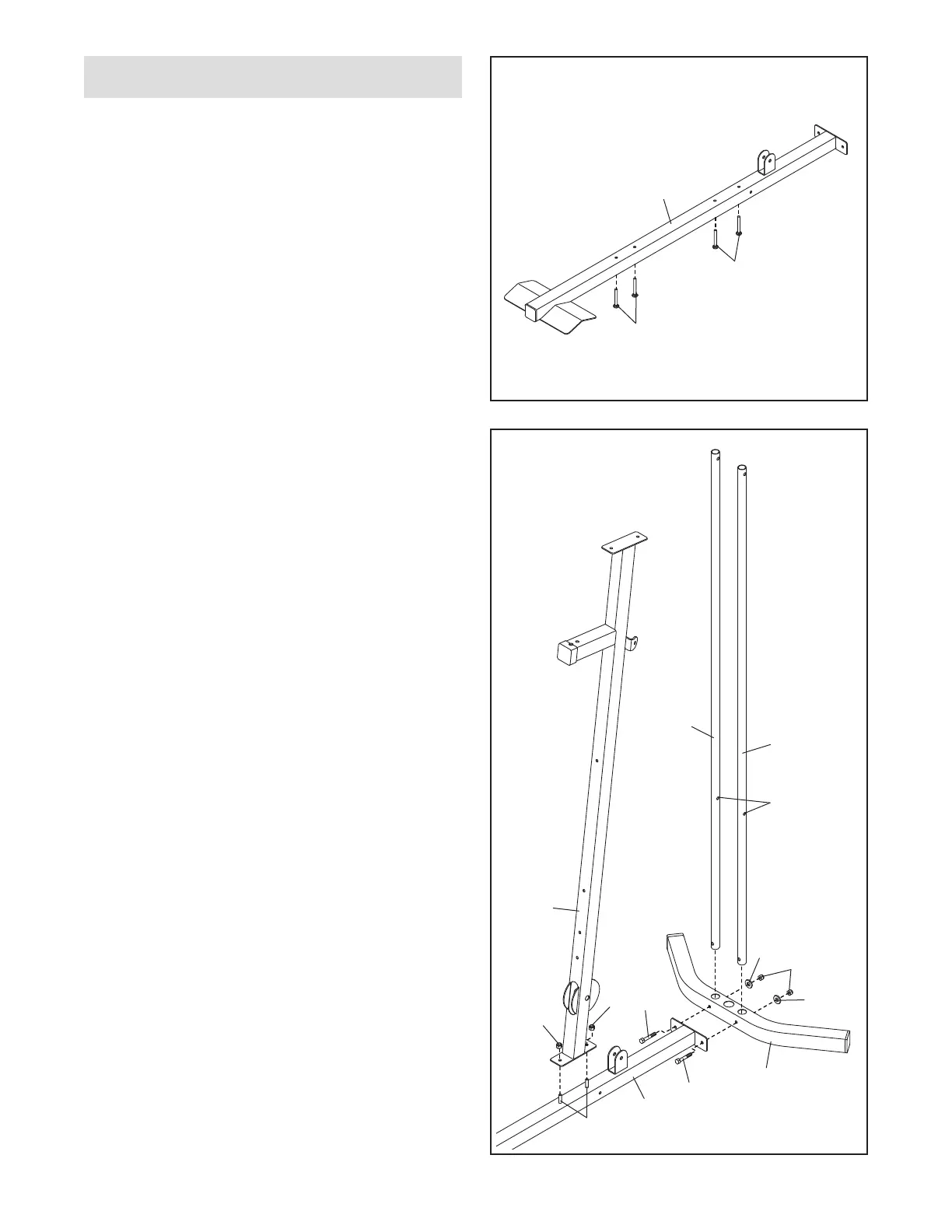

2. To make assembly easier, read the information
on page 7. Before you begin, make sure that
you have:
• removed the packaging materials from all of
the parts
• placed all parts near you in a cleared area
• located the included grease packet
Insert four M8 x 58mm Carriage Bolts (64) upward
into the Base (1). Tip: It may be helpful to place
a piece of tape over the bolt heads to hold
them in place.
Frame Assembly
1
64
64
2
