20

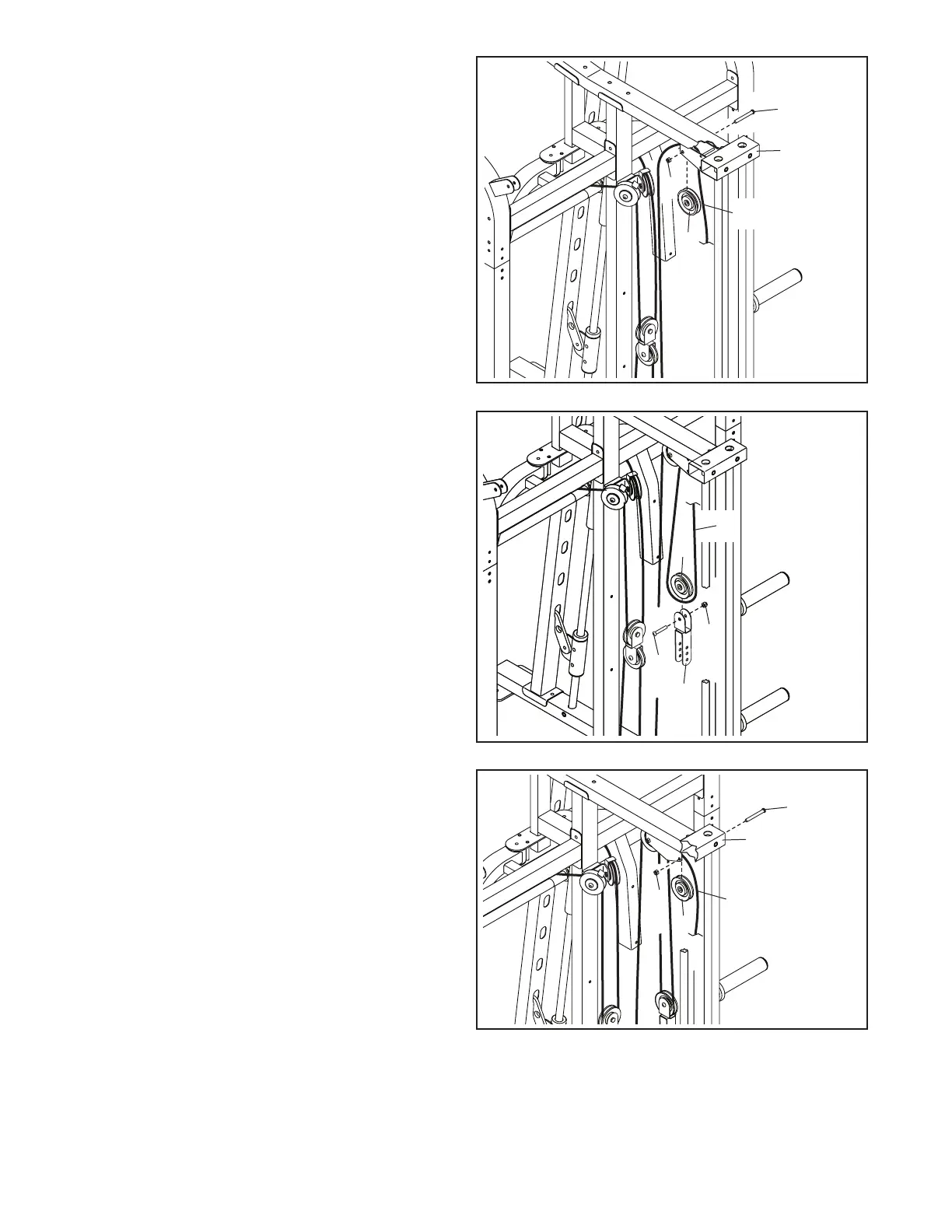

31. Wrap the Low Cable (72) over a 90mm Pulley
(58). Attach the 90mm Pulley to the Top Frame
(16) with an M10 x 43mm Bolt (96) and an M10
Locknut (79).
33. Wrap the Low Cable (72) over a 90mm Pulley
(58). Attach the 90mm Pulley to the Top Frame
(16) with an M10 x 43mm Bolt (96) and an M10
Locknut (79).
79
79
96
96
16
16
58
58
31
33
72
72
32. Route the Low Cable (72) under a 90mm Pulley
(58). Attach the 90mm Pulley to the Long Double
U-bracket (47) with an M10 x 43mm Bolt (96)
and an M10 Locknut (79).
32
72
79
96
58
47
