36

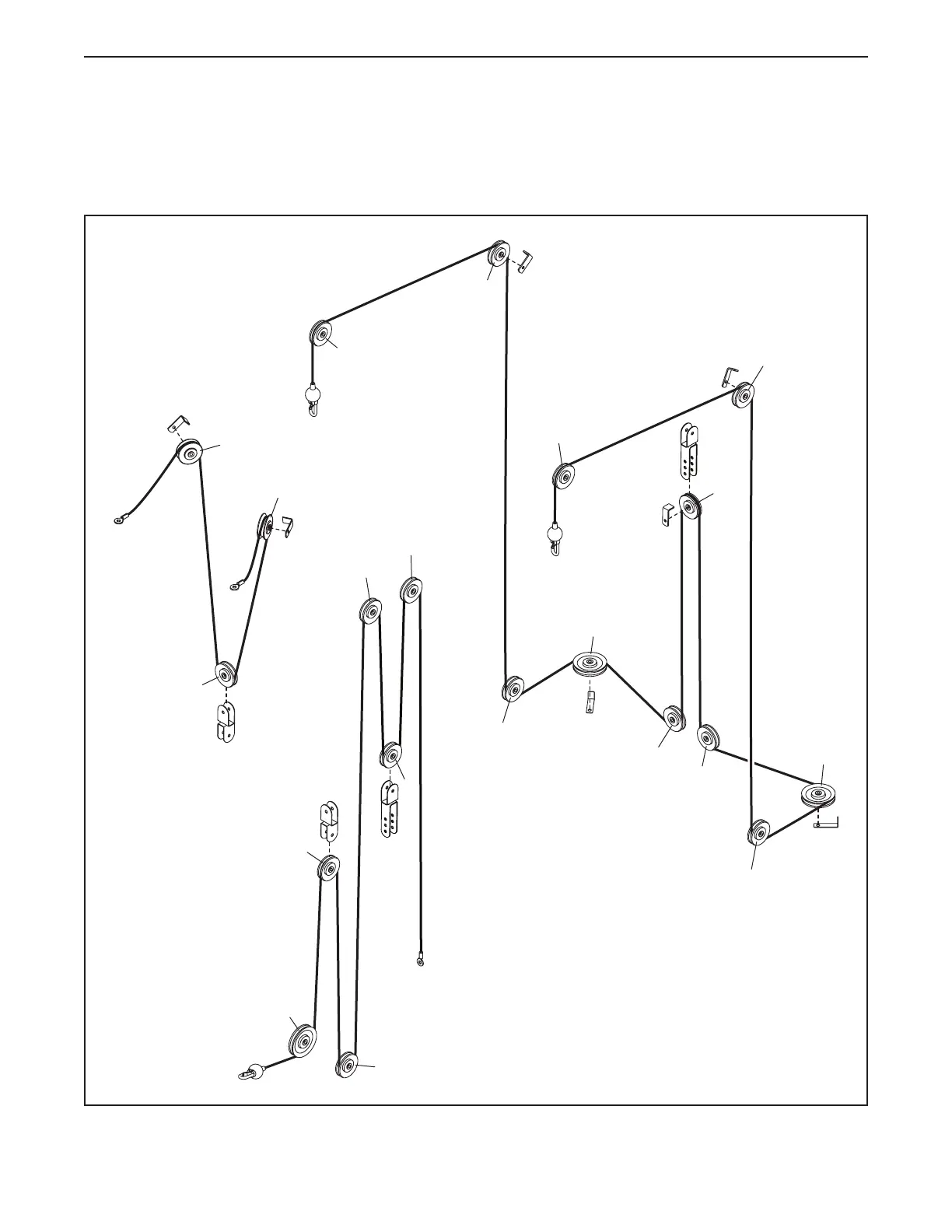

CABLE DIAGRAM
The diagram below shows the correct route of each cable. The numbers in each drawing show the correct route of
that cable. Use the diagram to make sure that each cable is correctly routed. If a cable is not correctly routed,
the weight bench will not function properly and damage may occur. If the weight bench has one or more
cable traps, make sure that no cable trap is touching or binding a cable.
1
11
4
10
2
6
1
1
2
2
3
4
5
6
High Cable (54)
Low Cable (72)
Butterfly Cable (71)
3
7
9
3
8
5
To Next Page
