3. Installation

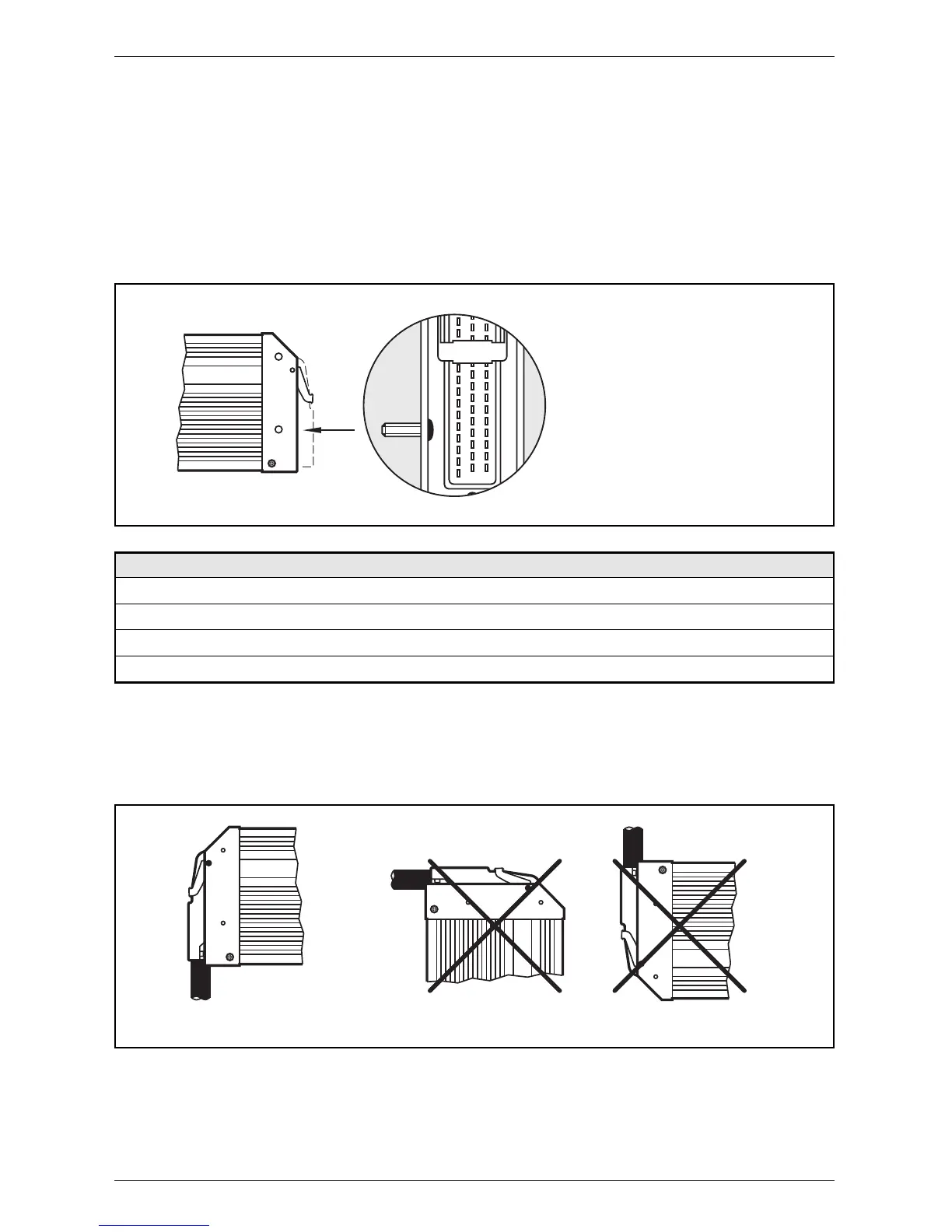

3.1 Fastening
Fix the controller to a flat surface using 4 M5 screws.
Tightening torque: 8
±2
Nm
Use screws with a low head to avoid that the connector is damaged when placed
and locked..
3.2 Installation position
Align the controller in such a way that the cable entry of the connector faces
downwards.
CLASSICCONTROLLER CR0505
PAGE 4
Screws to be used (examples) Standard
Button head hexagon socket screws (M5 x L) ISO 7380
Cylinder screws with hexagon socket and low head (M5 x L) DIN 7984
Cutting screws for metric ISO thread with low head DIN 7500
Screw material: steel or stainless steel
Example button head
hexagon socket screw
