3 Installation
Using process adapters the unit can be adapted to different process connections�
• Adapters have to be ordered separately as accessories�
A correct fit of the unit and ingress resistance of the connection are only
ensured using ifm adapters�
• For small flow rates ifm adapter blocks are available�

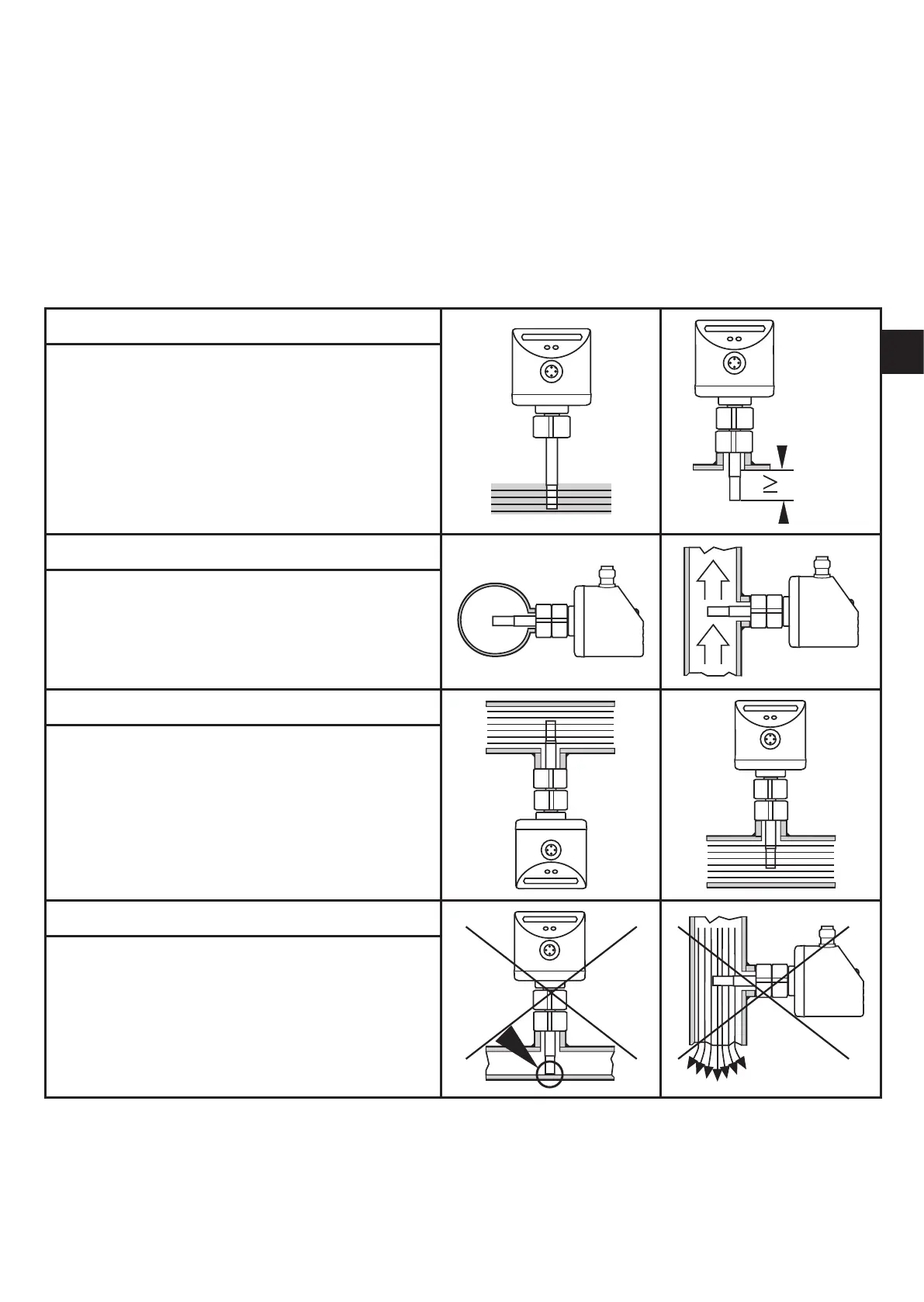

3.1 Installation location
General
• The sensor tip is to be completely sur-
rounded by the medium�
• Insertion depth of the sensor: minimum
12 mm�
Recommended
• For horizontal pipes: mounting from
the side�
• For vertical pipes: mounting in the rising
pipe�
Conditional
• Horizontal pipe /mounting from the bot-
tom: if the pipe is free from build-up�
• Horizontal pipe /mounting from the
top: if the pipe is completely filled with
medium�
To avoid
• The sensor tip must not be in contact
with the pipe wall�
• Do not mount in downpipes that are
open at the bottom!
