4.6 Volumetric flow or temperature monitoring / analogue
function

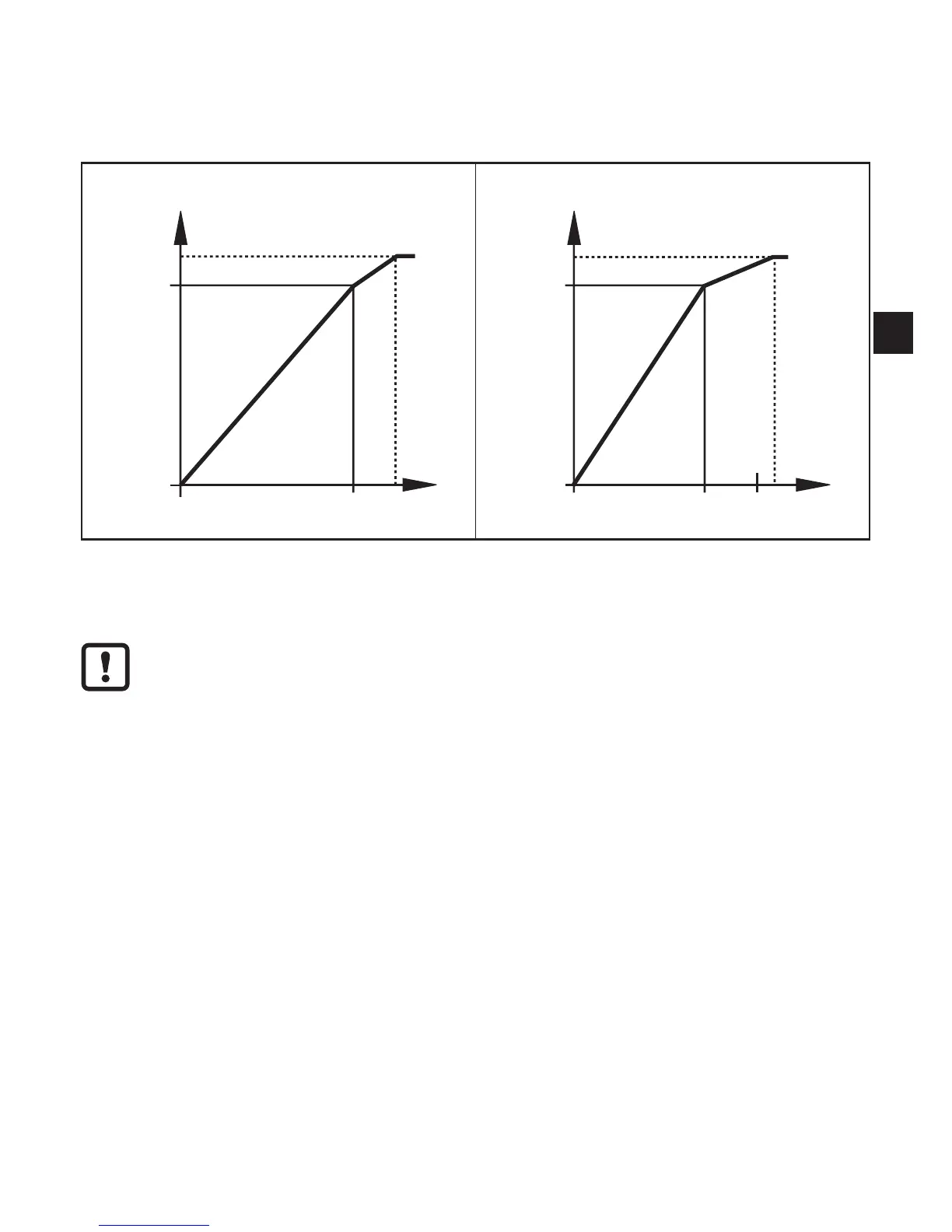

4.6.1 Voltage output 0 ... 10 V (example volumetric flow monitoring)
Factory setting Measuring range scaled
U [V]
10
0
0 MEW Q
U [V]
10
0
0 MEWAEPASP Q
MEW = final value of the measuring range
ASP = analogue start point: determines at which measured value the output signal is 4 mA
AEP = analogue end point: determines at which measured value the output signal is 20 mA�
Minimum distance between ASP and AEP = 20 % of the measuring range�
In the set measuring range the output signal is between 0 and 10V�
For an output signal > 10 V the flow quantity is above the final value of the meas-
uring range�
