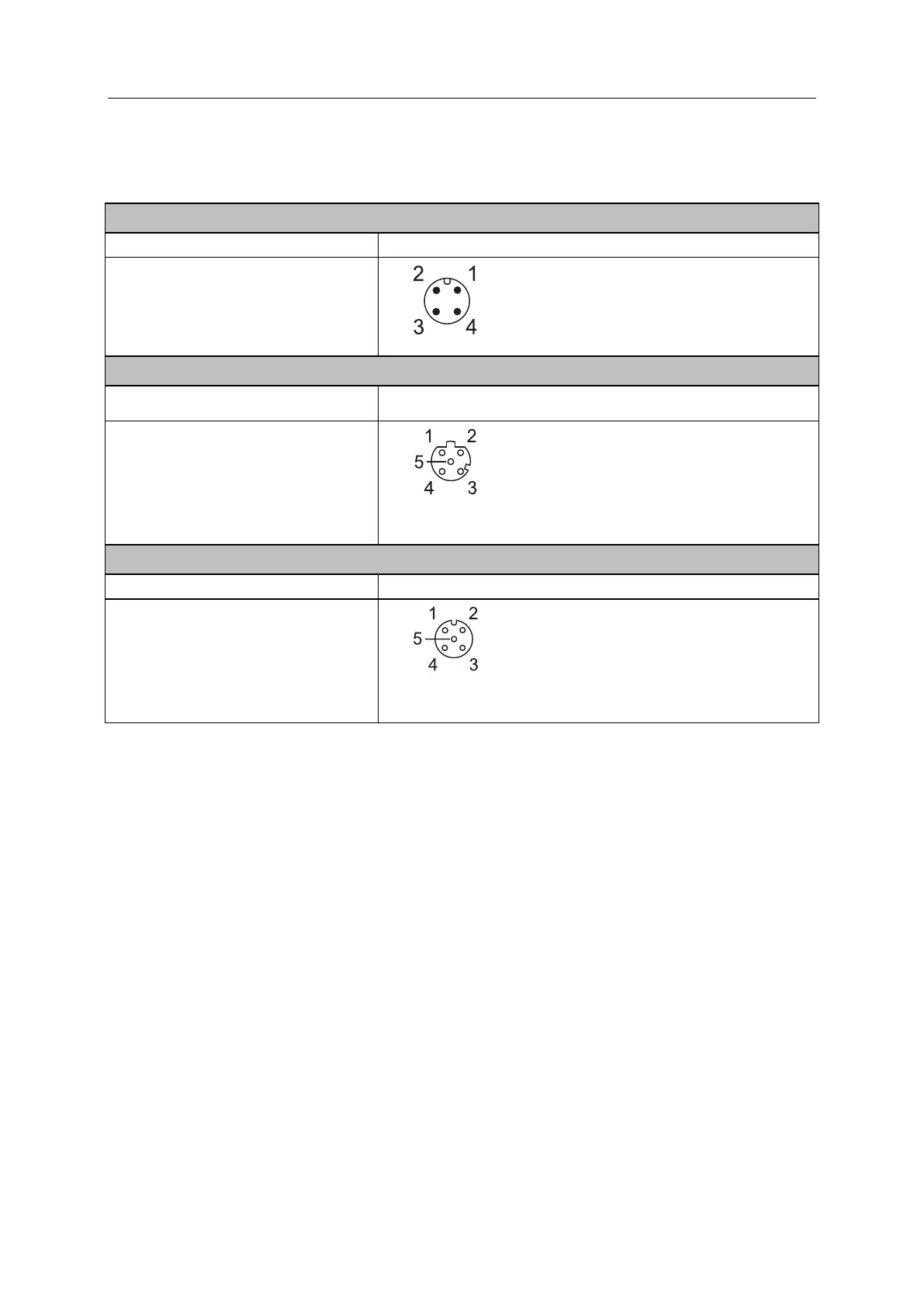

13.1.10 Electrical connection
52261
Voltage supply IN X31
Plug and socket connection
M12
Wiring
1:
+ 24 V DC (US)
2:
-
3:
GND (US)
4:
-
IoT port X21, X22
Plug and socket connection
M12
Wiring
1:
TX +
2:
RX +
3:
TX -
4:
RX -
5:
-
Process connection IO-Link ports class A X01...X04
Plug and socket connection
M12
Wiring
1:
Sensor supply (US) L+
2:
DI
3:
Sensor supply (US) L-
4:
C/Q IO-Link
5:
-
