CR3133 CANwireless
8
6 Electrical connection

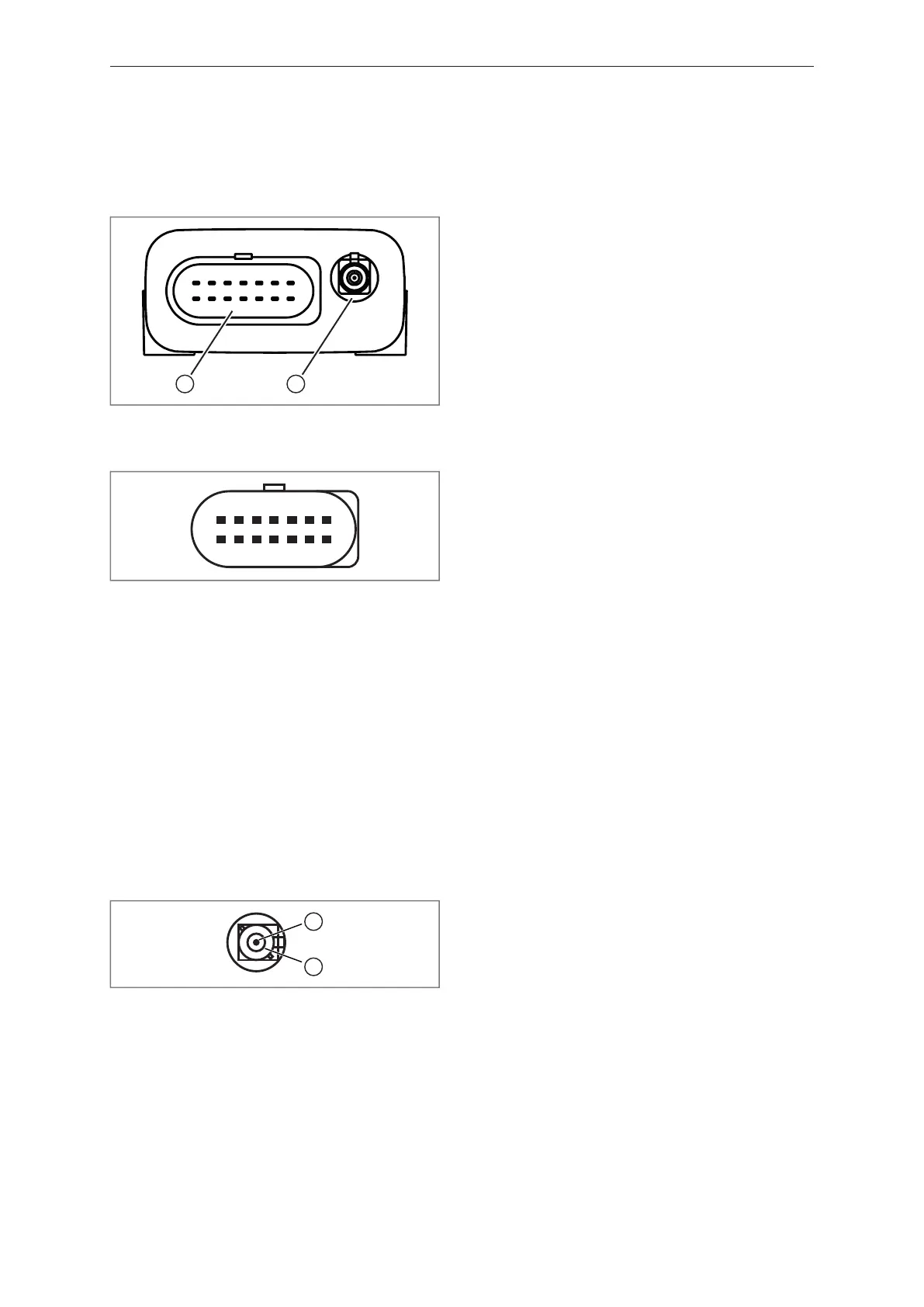

6.1 Connectors
21
1: Micro Timer II connector, 14-pin
(CAN, supply, inputs, outputs)
2: FAKRA connector, I-coded
6.1.1 Operating voltage, CAN interface, inputs and outputs
1
2
13
14
Fig.2: Micro Timer II connector, 14-pin
1: VCC/ terminal 30 (supply)
2: factory setting 1 (input)
3: GND/ terminal 31 (supply)
4: analogue input 1
5: analogue input 2
6: not used
7: digital output
8: digital input/ terminal 15 (input, ignition signal)
9: factory setting 2 (input)
10: GND/ terminal 31 (supply)
11: CAN2_H (CAN interface 1 (high) bidirectional)
12: CAN2_L (CAN interface 1 (low) bidirectional)
13: CAN1_H (CAN interface 1 (high) bidirectional)
14: CAN1_L (CAN interface 1 (low) bidirectional)
6.1.2 Antenna terminal
2
1
Fig.3: FAKRA connector, I-coded
1: Signal — WLAN or Bluetooth signal
2: GND — shielding/ housing
