IFR COM-120B Service Manual

STEP PROCED
URE
88.
Remove
Extender
Coaxial Cables
and SMB-SMB
Adapters from
Analyzer Tray
coaxial
cables.
Install
Analyzer Tray
Coaxial Cables to
Analyzer Tray.
89. Set COM-12O8 Main Power
Switch to
ON.
Apply
Powerto
COM-1208.
Allow
5 minute
warm-up
period.
90.
Press
ANLYZ
Instruments Key
(a)
to access Spectrum
Analyzer
Operation
Screen.
91. Go
to
Step 77.
92. Set
COM-1208
power
to
OFF and disconnect test equipment.
1-35

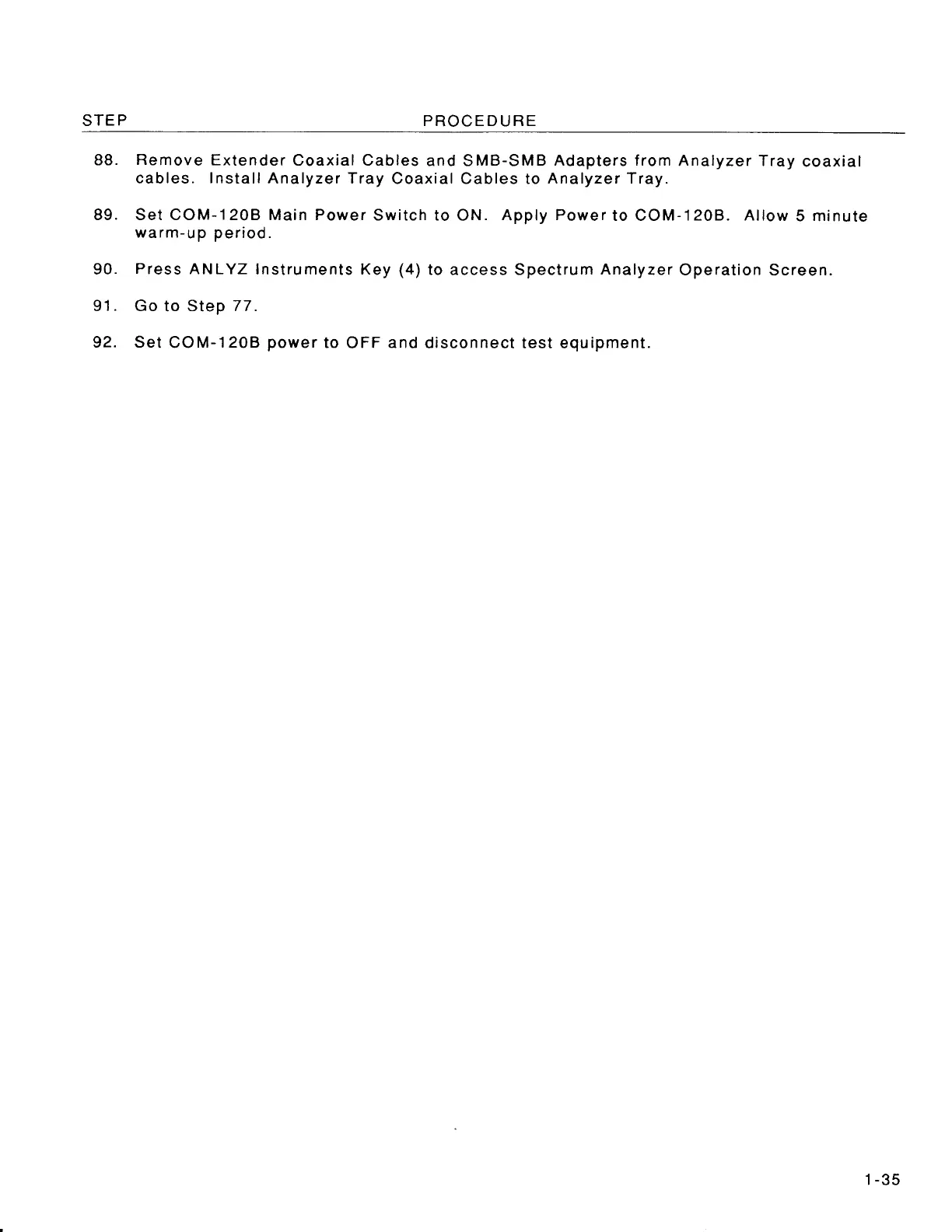

STEP PROCEDURE
88. Remove Extender Coaxial Cables and 5MB-SMB Adapters from Analyzer Tray coaxial
cables. I nstall Analyzer Tray Coaxial Cables to Analyzer Tray.
89. Set COM-120B Main Power Switch to ON. Apply Power to COM-120B. Allow 5 minute
warm-up period.
90. Press ANL YZ Instruments Key (4) to access Spectrum Analyzer Operation Screen.
91. Goto Step 77.
92. Set COM-120B power to OFF and disconnect test equipment.
1-35
