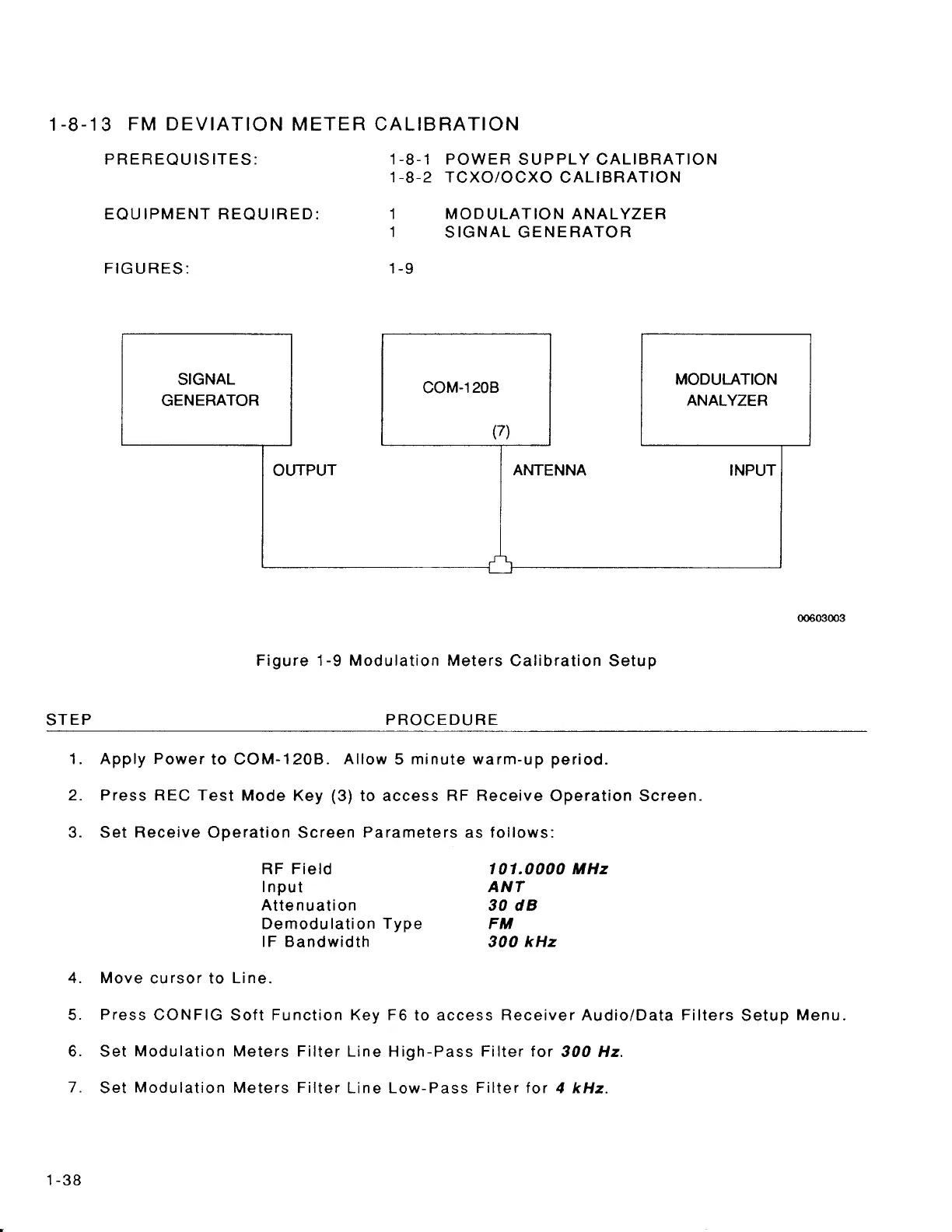

1-8-13 FM DEVIATION METER CALIBRATION
PREREQUISITES:
EQU IPMENT REQUIRED:
FIGURES:
1-8-1 POWER SUPPLY CALIBRATION
1-8-2 TCXO/OCXO CALIBRATION
1-9
MODULATION ANALYZER
SIGNAL GENERATOR
SIGNAL
COM-120B
MODULATION
GENERATOR ANALYZER
(7)
OUTPUT
ANTENNA
INPUT
Figure 1-9 Modulation Meters Calibration Setup
STEP PROCEDURE
1. Apply Power to COM-120B. Allow 5 minute warm-up period.
2. Press REC Test Mode Key (3) to access RF Receive Operation Screen.
3. Set Receive Operation Screen Parameters as follows:
RF Field
Input
Attenuation
Demodulation Type
IF Bandwidth
4. Move cu rsor to Li ne.
101.0000 MHz
ANT
30 dB
FM
300 kHz
00603003
5. Press CONFIG Soft Function Key F6 to access Receiver Audio/Data Filters Setup Menu.
6. Set Modulation Meters Filter Line High-Pass Filter for 300 Hz.
7. Set Modulation Meters Filter Line Low-Pass Filter for 4 kHz.
1-38
