IFR COM-120B Service Manual

STEP
PROCEDURE
16. Set
COM-1208
power
to OFF and disconnect
test equipment.
PERFORM
THE
FOLLOWING
ONLY WHEN REOUIRED.
17.
Press
SETUP
MEMORY Key
(21).
18.
Select
"1.
Calibration"
f rom
Setup
Screen.
19. Press
ENTER
Key
to access
Password Field.
Press
SHIFT,
F,
M, Y,
S,
V,
C, D
and
SHIFT
Data Entry
Keys
(5).
Press ENTER Key.
20.
Select
"12.
PM DEVIATION METER"
to
access
PM DEVIATION
METER
CALIBRATION
Screen.
21.
Enter Modulation
Analyzer Reading in Data Field
using
DATA
ENTRY Keys
(5).
22.
Press ENTER
Key
and
wait
until
Field
displays
CALIBRATED.
23. Press
RETURN Soft
Function
Key F6.
Go to Step 2.
1-42

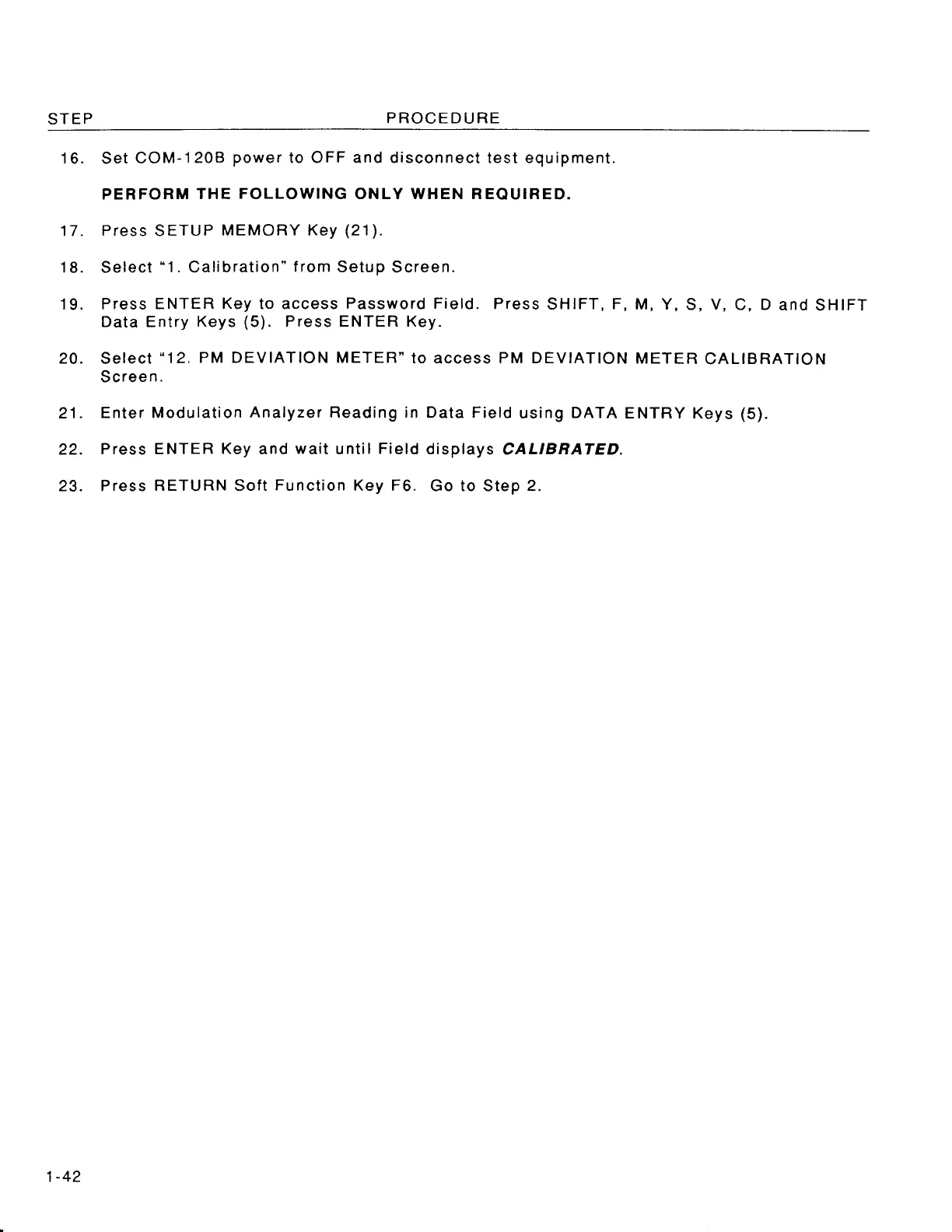

STEP
PROCEDURE
16. Set COM-120B power to OFF and disconnect test equipment.
PERFORM THE FOLLOWING ONLY WHEN REQUIRED.
17. Press SETUP MEMORY Key (21).
18. Select "1. Calibration" from Setup Screen.
19. Press ENTER Key to access Password Field. Press SHIFT, F, M, Y, S, V, C, D and SHIFT
Data Entry Keys (5). Press ENTER Key.
20. Select "12. PM DEVIATION METER" to access PM DEVIATION METER CALIBRATION
Screen.
21. Enter Modulation Analyzer Reading in Data Field using DATA ENTRY Keys (5).
22. Press ENTER Key and wait until Field displays CALIBRATED.
23. Press RETURN Soft Function Key F6. Go to Step 2.
1-42
