SPECIFICATIONS

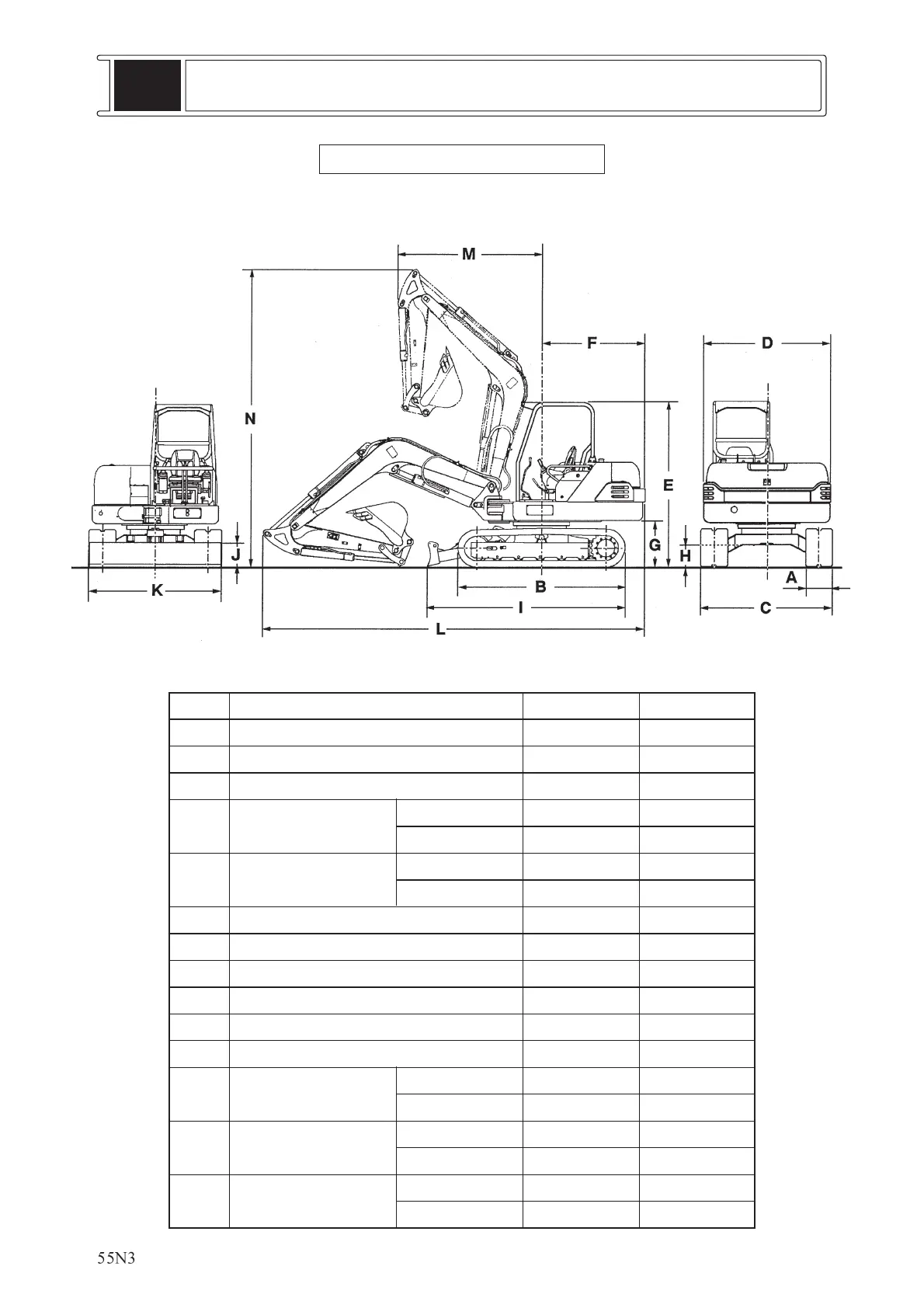

7-2 OVERALL DIMENSIONS
1. OVERALL DIMENSIONS
Codes Description Rubber shoe Steel shoe
A Crawler shoe width 400 400
B Overall length of crawler 2500 2480
C Overall width of crawler 2000 2000
D
Overall width of
Canopy 1880 1880
upper structure
Cabin 1880 1880
E Overall height
Canopy 2500 2500
Cabin 2500 2500
F Rear end swing radius 1560 1560
G Rear end ground clearance 695 695
H Ground clearance 340 340
I Overall length of undercarriage 2950 2940
J Blade height 370 370
K Blade width 2000 2000
L Overall length
Blade in front 5710 5710
Blade in rear 5850 5850
M
Front end mini.
Canopy 2220 2220
radius at center
Cabin 2220 2220
N
Arm head
Canopy 4480 4480
clearance
Cabin 4480 4480
Unit : mm
