IHI 55N3 - Engine Oil Level Check

3 – 10
ᵑ
MAINTENANCE
3-4 DAILY MAINTENANCE AND CHECKS




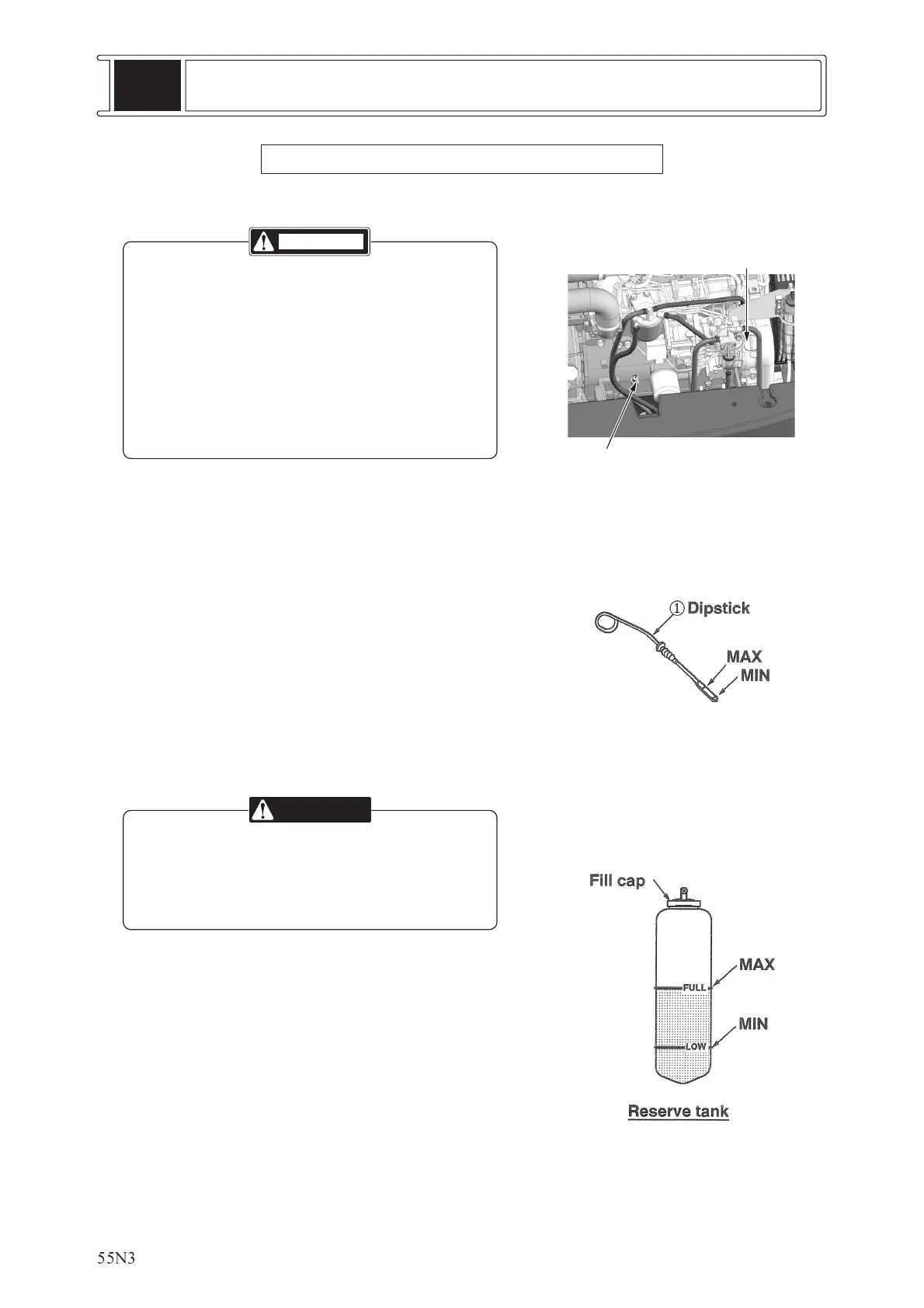

Check the Engine Oil Level
* Check the oil level with the engine stopped.
DO NOT check the oil level with engine
running.
* DO NOT overfill the crankcase to avoid
engine damaged. Engine damage can
result.
* NEVER operate the engine when oil level is
above MAX or MIN marks.
1. Place the machine on level ground. Stop the
engine.
2. Remove the dipstick
c
and wipe it clean.
Insert dipstick
c
, then remove it again to read
actual oil level. Install dipstick
c
.
3. Maintain the oil level to the MAX mark on the
dipstick
c
. Add oil if necessary.
4. Remove the oil fill plug
d
and add oil.
Clean and install the oil fill plug
d
.
5. Close the access door.



Check the Coolant Level
* Steam generated by hot fluid under pressure
in radiator can cause personal injury.
* Remove filler cap only when cool enough to
touch with bare hand.
1. Open the access door on the rear of the
machine.
2. Always check the coolant level in the reserve
tank. Maintain the coolant level between the
MAX and MIN marks on the reserve tank.
3. Remove the coolant fill cap
c
and add the
coolant if necessary.
4. If the reserve tank is empty, check the radiator
level with the engine stopped. Add coolant to
the radiator and the reserve tank.
5. Close the access door.
WARNING
CAUTION

Oil fill plug

Dipstick
DAILY
