2 – 21
ᵐ
OPERATION
STEERING CONTROL
* Be sure no one is working on or near the machine to prevent injury.
Keep the machine under control at all times to prevent injury.
* Before control levers, confirm which direction the track frame faces.
* Always travel with sprockets under the rear of the machine.
1. Move engine throttle lever
c
to the operating
range.
2. Move the travel lever lock and control shut-off
lever to the unlocked position.
3. Raise the boom and the blade enough to provide
sufficient ground clearance.

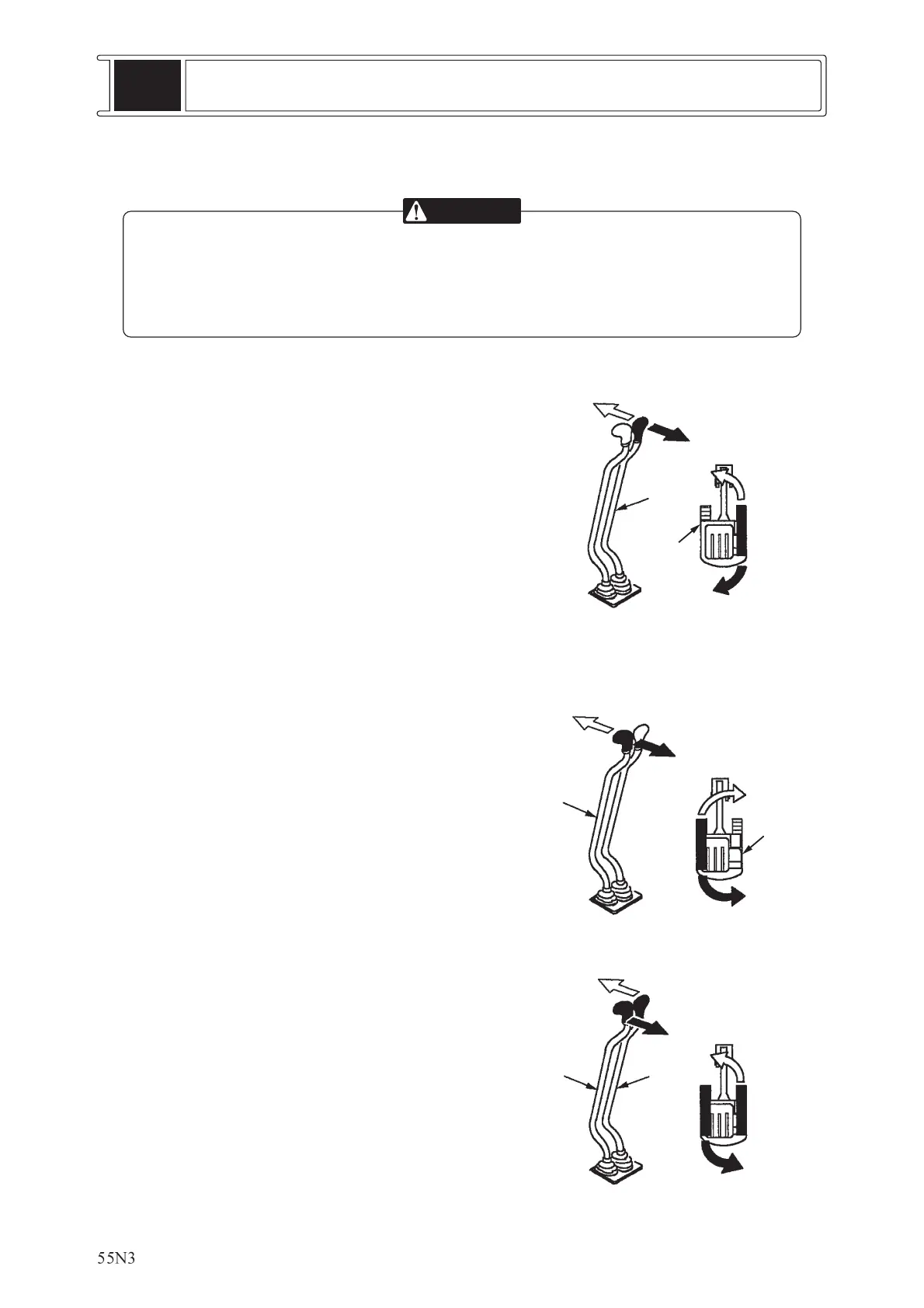

STEERING
To make turns, control the travel levers.
Control the two travel levers as follows.
Pivot Left Turn
Move the right lever c forward to travel forward
and left, and move it rear to travel reverse and left,
pivoting on the left track.
Pivot Right Turn
Move the left lever d forward to travel forward
and right, and move it rear to travel reverse and
right, pivoting on the right track.
SPOT TURN
Spot Left Turn
Move the left travel lever d rear and move the
right lever c forward at the same time. This
allows a quick left turn.
Spot Right Turn
Move the right travel lever c rear and move the
left lever d forward at the same time, allowing a
quick right turn.
Forward
Steering
Reverse
Steering
Stop the
left track
PIVOT LEFT TURN
➀
WARNING
Forward
Steering
Reverse
Steering
Stop the
left track
PIVOT RIGHT TURN
SPOT LEFT TURN
