ENGLISH
42 APPENDIX

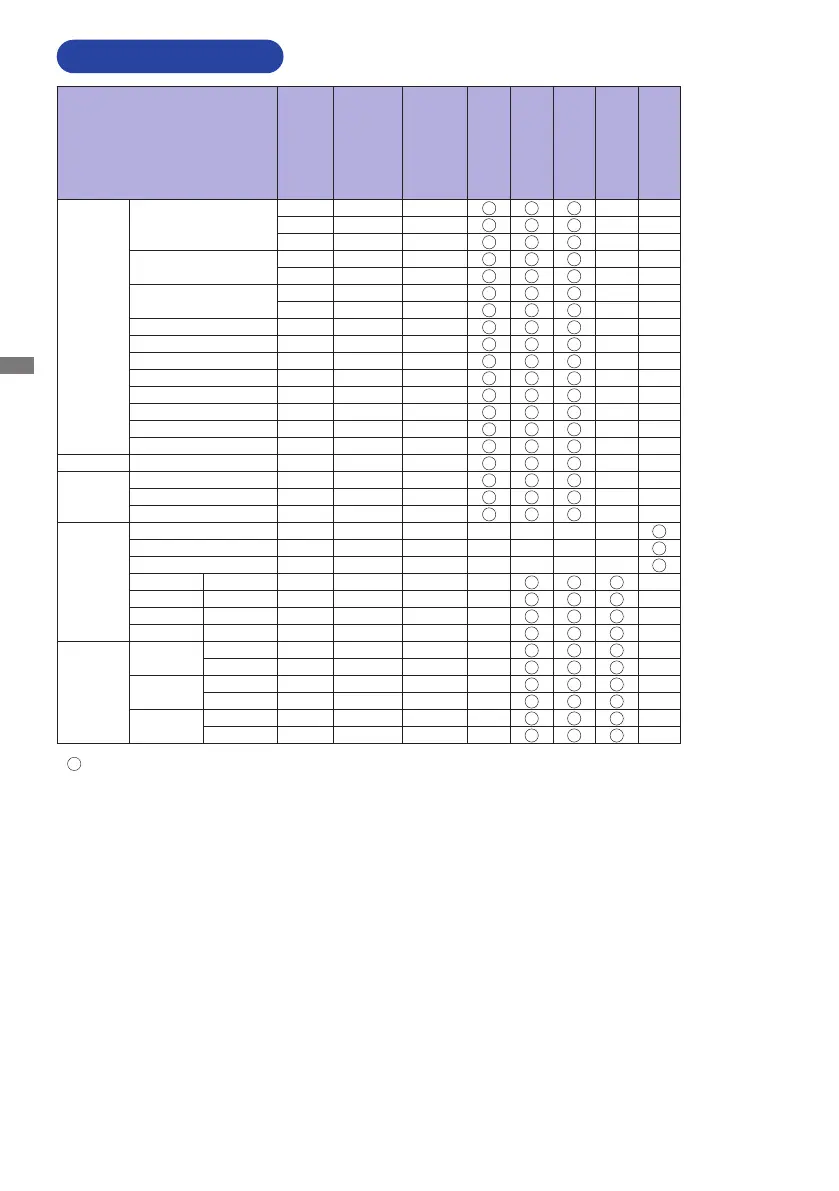

COMPLIANT TIMING
* means supported the timing.
Timing
VESA
VGA 640x480
31.469 59.940 25.175
37.861 72.809 31.500
37.500 75.000 31.500
SVGA 800x600
37.879 60.317 40.000
46.875 75.000 49.500
XGA 1024x768
48.363 60.004 65.000
60.023 75.029 78.750
WXGA 1280x768 47.776 59.870 79.500
WXGA 1280x800 49.702 59.810 83.500
SXGA 1280x960 60.000 60.000 108.000
SXGA 1280x1024 63.981 60.020 108.000
WXGA1360x768 47.712 60.020 85.500
WXGA1366x768 47.712 59.700 85.500
UXGA 1600x1200 75.000 60.000 162.000
FHD 1920x1080 67.500 60.000 148.500
IBM 720x400 31.467 70.080 28.320
MAC
640x480 35.000 66.667 30.240
832x624 49.725 74.500 57.283
1152x870 68.681 75.062 100.000
SD
NTSC(SD480i) 15.734 59.940 13.500
PAL(SD576i) 15.625 59.940 13.500
SECAM(SD576i) 15.625 59.940 13.500
480i 60Hz 15.734 59.940 27.000
576i 50Hz 15.625 50.000 13.500
480p 60Hz 31.469 59.940 27.000
576p 50Hz 31.250 50.000 27.000
HD
720p
50Hz 37.500 50.000 27.000
60Hz 45.000 60.000 74.250
1080i
50Hz 28.125 50.000 74.250
60Hz 33.716 60.000 74.250
1080p
50Hz 56.250 50.000 148.500
60Hz 67.500 60.000 148.500
fH(kHz)
fV(Hz)
Dot clock
(MHz)
HDMI
VGA
YPbPr
AV
DVI
M150LL21
