Iiyama ProLite TE8612MIS User Manual

ENGLISH
22 OPERATING THE MONITOR
OPERATING THE MONITOR

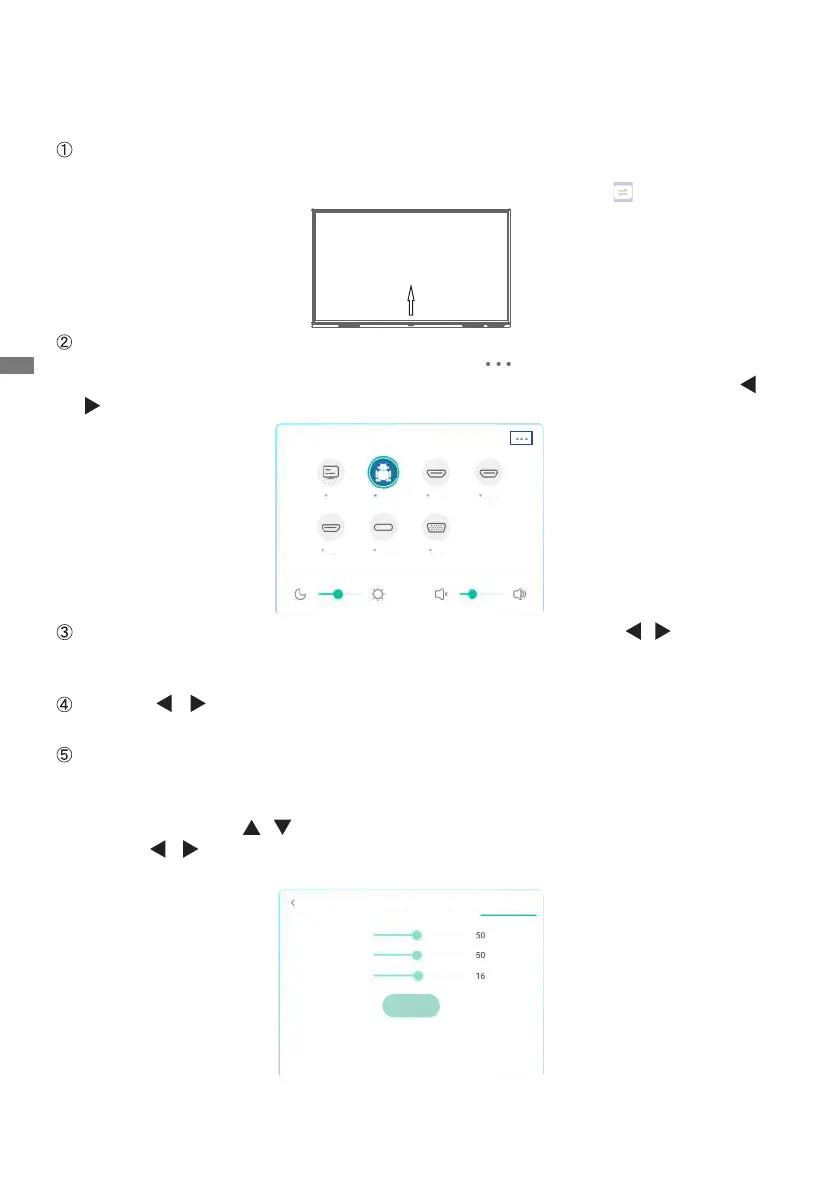

To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT
TIMING shown on page 63. You are also able to adjust the picture by following the button operation
shown below. For more detailed adjustments, see page 44 for SCREEN ADJUSTMENTS.
Take middle point position on the buttom of display screen as starting point, use the
touch pen to drag towards screen center position to call up source menu as shown
below. Or press Input Button on the remote control. Click the icon at the top
right of the screen.
Start the On Screen Display feature. "General setting" is displayed. Then, press
the menu button on the remote control or click on General setting menu with
touch pen. There are additional Menu items which can be switched by using the /
Buttons on the remote control or with the touch pen.
Select the Menu item of the adjustment you want to make. Use the / Buttons on
the remote control or with the touch pen to highlight the desired adjustment item.
Then, press the Enter button on the remote control.
Use the / Buttons on the remote control or with the touch pen to make the
appropriate adjustment or setting.
Press the Back Button on the remote control or click blank area outside menu with
the touch pen to exit menu.
For example, to correct for vertical position, select Menu item of "Adjust setting". Select "V
Position" by using the / Buttons on the remote control or with the touch pen.
Use the / Buttons on the remote control or with the touch pen to change the vertical
position settings. The vertical position of the overall display should be changing accordingly
while you are doing this.
Press the Back Button on the remote control or click blank area outside menu with the touch
pen, it ends, all changes are saved in the memory.
PC
iiWare
HDMI1
HDMI2
HDMI3
Type-C
VGA
Common settings
Screen center
H Position
AdjustDisplayScreenAudio
V Position
Phase
AUTO
PHASE
* "Adjust setting" is only
available for VGA input.

Iiyama ProLite TE8612MIS Specifications

General

Haze rate	28 %
Panel life	50000 h
Pixel pitch	0.4935 x 0.4935 mm
Response time	8 ms
Display diagonal	86 \
Surface hardness	7H
Display brightness	400 cd/m²
Display technology	LED
Number of displays	1
Native aspect ratio	16:9
Horizontal scan range	30 - 135 kHz
LED backlighting type	Direct-LED
Touchscreen technology	Infrared
Display number of colors	1.073 billion colors
Display diagonal (metric)	217.4 cm
Active display area (W x H)	1895 x 1066 mm
Number of simultaneous touchpoints	40
Orientation	Horizontal
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	16.5 mm
Placement supported	Indoor
Bezel width (bottom)	31 mm
Positioning accuracy	1.5 mm
Panel mounting interface	800 x 600 mm
Bluetooth version	5.0
Power supply type	Internal
Internal memory	32 GB
Processor cores	4
Internal storage capacity	4 GB
Operating system installed	Android 11
On-board graphics card model	ARM Mali-G52
DVI port	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
USB connector type	USB Type-C
USB ports quantity	6
HDMI input ports quantity	3
Ethernet LAN (RJ-45) ports	2
RMS rated power	32 W
Purpose	Commercial
HDCP version	2.2
Number of OSD languages	9
Operating hours (hours/days)	16/7
On Screen Display (OSD) languages	CZE, DEU, DUT, ENG, ESP, FRE, ITA, POL, RUS
Sustainability certificates	RoHS, WEEE
Cables included	AC, HDMI, USB
Base material	Metal
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	215 W
Package depth	225 mm
Package width	2110 mm
Package height	1283 mm
Package weight	75900 g

Weight and Dimensions

Display depth	100 mm
Display width	1957 mm
Display height	1160 mm
Display weight	58600 g
