SCREEN ADJUSTMENTS

The screen adjustments described in this manual are designed to set image position and minimize
ickerorblurfortheparticularcomputerinuse.

The monitor is designed to provide the best performance at resolution of 1920 × 1080, but can
not provide the best at resolutions of less than 1920 × 1080 because the picture is automatically
stretchedtotthefullscreen.Itisrecommendedtooperateatresolutionof1920×1080innormal
use.

Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to
the screen enlargement process.

It is preferable to adjust the image position and frequency with the monitor controls, rather than
the computer software or utilities.

Perform adjustments after a warm-up period of at least thirty minutes.

Additional adjustments may be required after the Auto Adjust depending on the resolution or signal
timing.

The Auto Adjust may not work correctly when displaying the picture other than the screen
adjustment pattern. In this case, manual adjustments are required.
There are two ways to adjust the screen. One way is automatic adjustment for Position, Clock
Frequency and Phase. The other way is performing each adjustment manually.
Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is
changed.Ifthescreenhasaickerorblur,orthepicturedoesnottinthedisplayareaafterperforming
the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the
screenadjustmentpattern(Test.bmp)obtainedviatheiiyamawebsite(https://iiyama.com).
Adjust the image by following the procedure below to get the desired picture.
This manual explains adjustment under Windows
®
OS.
Display the picture at the optimum resolution.
Enter the Test.bmp (screen adjustment pattern) to wallpaper.

Consult the appropriate documentation for doing this.

Set the display position to center in the wallpaper setting dialogue box.

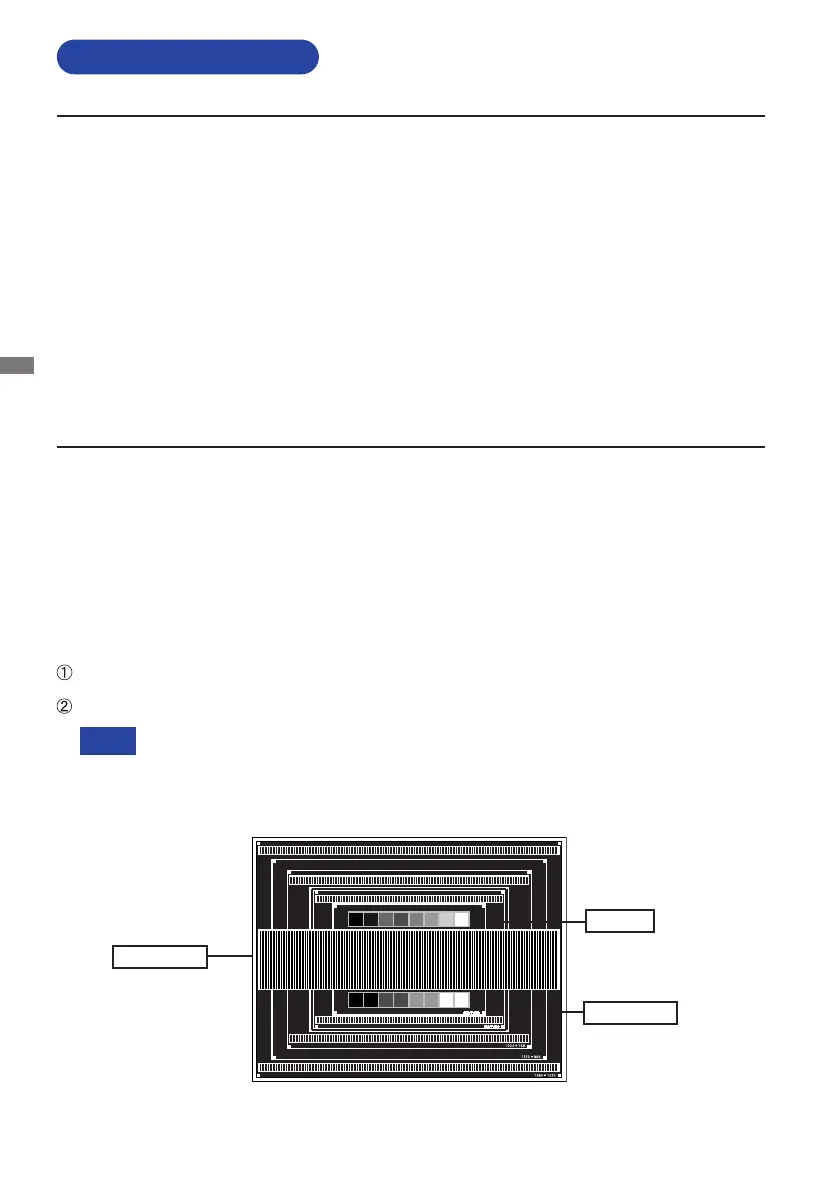

[Adjustment pattern]
Zebra pattern
Color bar
Picture frame
NOTE
Adjust the image by following the procedure below to get the desired picture when selecting Analog input.

Iiyama ProLite TE8612MIS Specifications

General

Haze rate	28 %
Panel life	50000 h
Pixel pitch	0.4935 x 0.4935 mm
Response time	8 ms
Display diagonal	86 \
Surface hardness	7H
Display brightness	400 cd/m²
Display technology	LED
Number of displays	1
Native aspect ratio	16:9
Horizontal scan range	30 - 135 kHz
LED backlighting type	Direct-LED
Touchscreen technology	Infrared
Display number of colors	1.073 billion colors
Display diagonal (metric)	217.4 cm
Active display area (W x H)	1895 x 1066 mm
Number of simultaneous touchpoints	40
Orientation	Horizontal
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	16.5 mm
Placement supported	Indoor
Bezel width (bottom)	31 mm
Positioning accuracy	1.5 mm
Panel mounting interface	800 x 600 mm
Bluetooth version	5.0
Power supply type	Internal
Internal memory	32 GB
Processor cores	4
Internal storage capacity	4 GB
Operating system installed	Android 11
On-board graphics card model	ARM Mali-G52
DVI port	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
USB connector type	USB Type-C
USB ports quantity	6
HDMI input ports quantity	3
Ethernet LAN (RJ-45) ports	2
RMS rated power	32 W
Purpose	Commercial
HDCP version	2.2
Number of OSD languages	9
Operating hours (hours/days)	16/7
On Screen Display (OSD) languages	CZE, DEU, DUT, ENG, ESP, FRE, ITA, POL, RUS
Sustainability certificates	RoHS, WEEE
Cables included	AC, HDMI, USB
Base material	Metal
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	215 W
Package depth	225 mm
Package width	2110 mm
Package height	1283 mm
Package weight	75900 g

Weight and Dimensions

Display depth	100 mm
Display width	1957 mm
Display height	1160 mm
Display weight	58600 g
