Connection examples

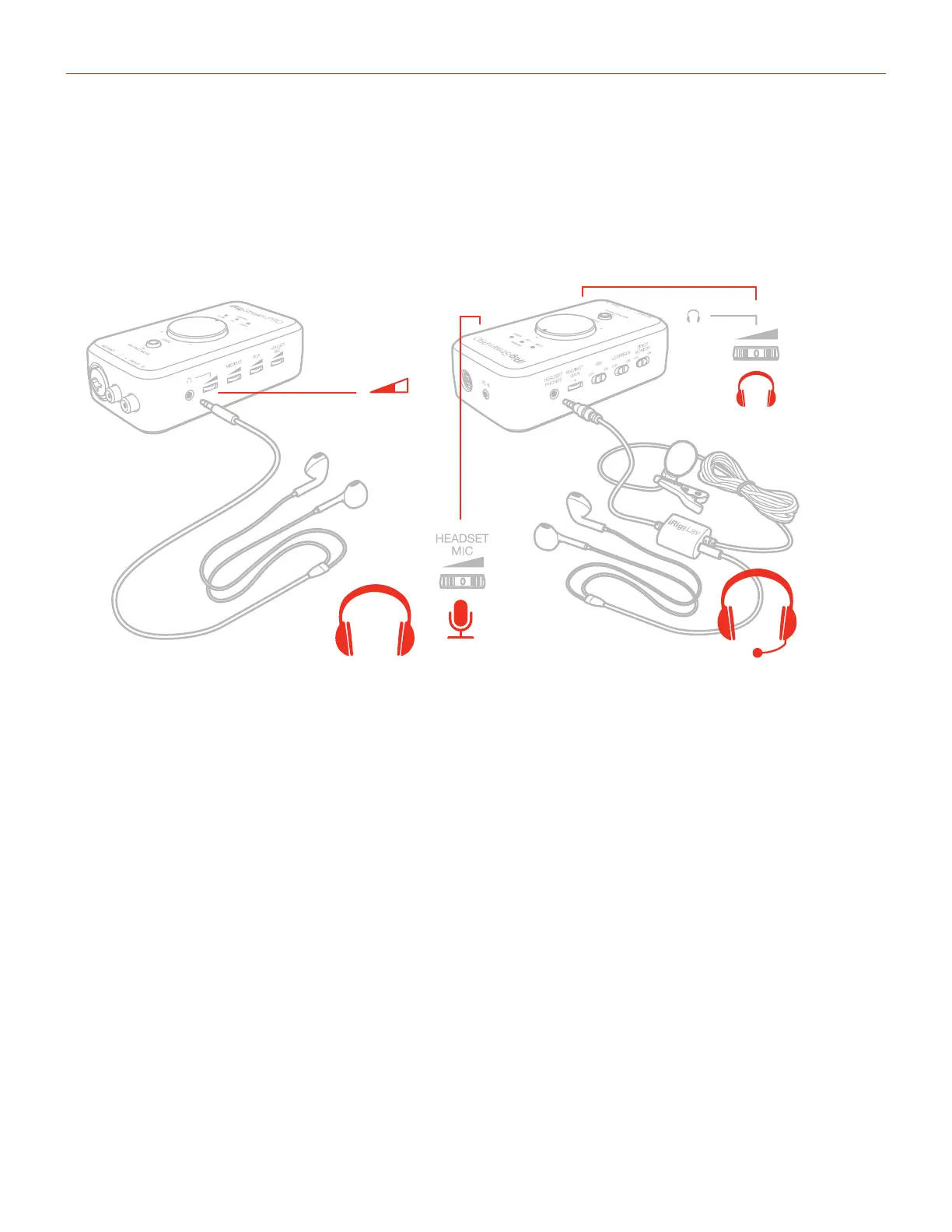

Here are some examples of connecting mic or line level signals to iRig Stream Pro.
Connecting headset/phones
1/8"
TRRS
1/8"
TRS
It is possible to connect an headset (compatible with CTIA wiring standard) or an iRig analogue microphone to
the “Headset/Phones” port and an headphones to the “Headphones” port. The headset’s microphone gain can
be controlled with the “Headset Mic” thumbwheel. In this case the main Level knob will control the overall signal
level that is streamed to the connected host. If an headphones is connected, its volume can be controlled with
the “Headphones” thumbwheel.
