11
Only certain cooktop models may be installed over
certain built-in electric oven models. Approved cooktops
and built-in ovens are listed by the MFG ID number
and product code (see the insert sheet included in
G
F
H
35¾” Min.
(90.8 cm) Min.
Use 3/4” (1.9 cm) plywood, installed
on two runners, ush with toe plate.
Base must be capable of supporting
200 pounds (90 kg).
Cut an opening in wood base minimum
9” x 9” (23 X 23 cm), 2” (5 cm) from left
side ller panel, to route armored cable to
junction box.
208/240 Volt junction
box for built-in oven.

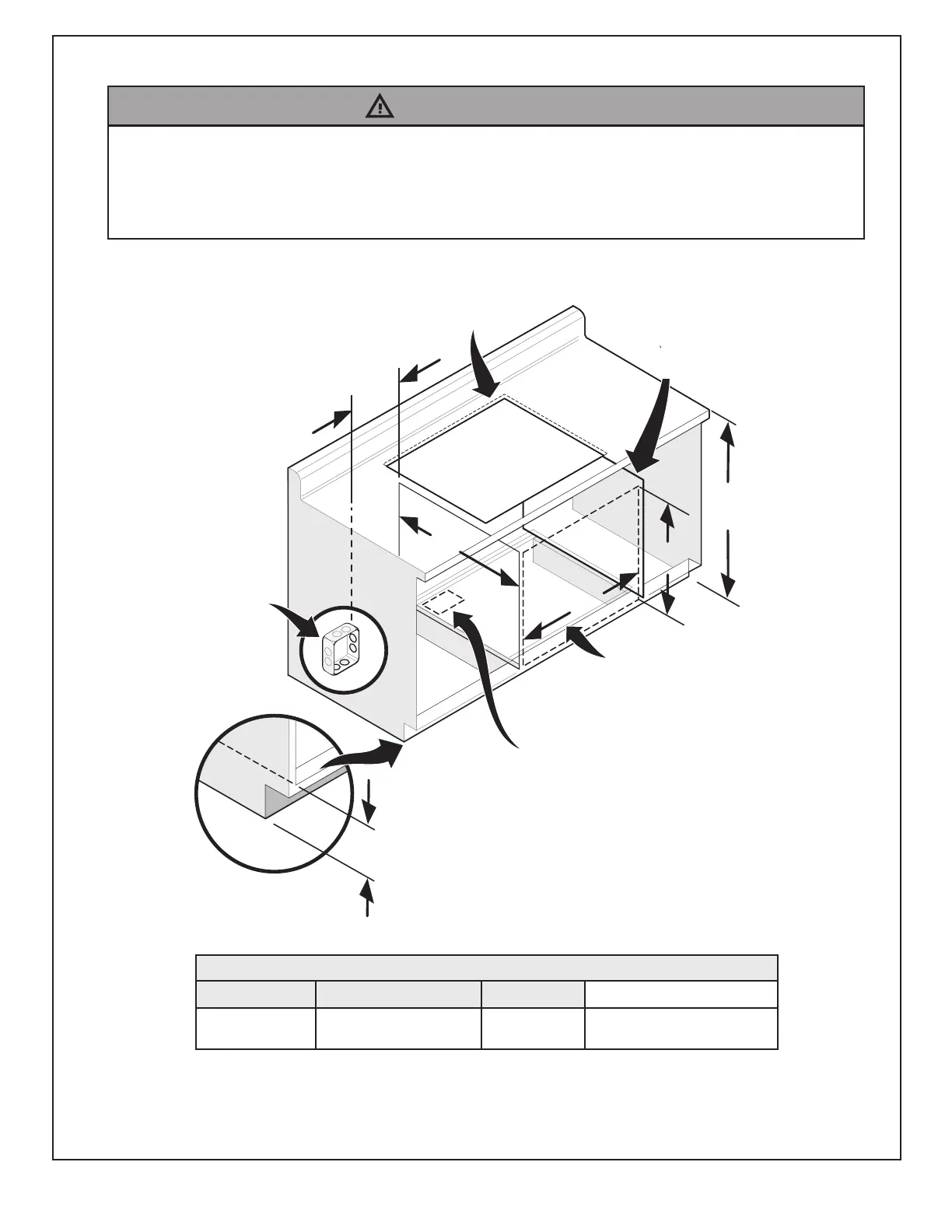

Figure 8 - TYPICAL UNDER COUNTER INSTALLATION OF A SINGLE ELECTRIC BUILT-IN
OVEN WITH AN ELECTRIC COOKTOP MOUNTED ABOVE
Approx. 3”
(7.5 cm)
Cabinet side ller panels
are necessary to isolate the
unit from adjoining cabinets.
Cabinet side ller height
should allow for installation
of approved cooktop models
5” (12.7 cm) Max.
CUTOUT DIMENSIONS AND CABINET WIDTH
F. WIDTH G. DEPTH H. HEIGHT
30" (76.2 cm) 28
1
/
2
" (72.4 cm) Min.
29" (73.7 cm) Max.
24 (61.0)
27
1
/
4
(69.2) Min.
28
1
/
8
(71.4) Max.
TYPICAL UNDER-COUNTER INSTALLATION
Do not remove spacers (if equipped) on the side walls of the built-in oven. These spacers
center the oven in the space provided. The oven must be centered to prevent excess heat
buildup that may result in heat damage or re.
To reduce the risk of personal injury and tipping of the wall oven, the wall oven must be
secured to the cabinet (s) by mounting screws.
WARNING!
the literature package and cooktop
installation instructions
for dimensions). Do
not install a side-by-
side conguration
under countertops, or
in combination with a
cooktop.
