IKEA VILSTA - Connection diagram

• You must have the connection and the
connecting links carried out as shown in
the connection diagram.
• The appliance is double insulated and
does not require an earth connection.
• Secure the connecting cable with cable
clips or clamps.
• The appliance works either at 50 Hz or 60
Hz and does not require any additional
action from a qualied electrician in order
to switch between frequencies.

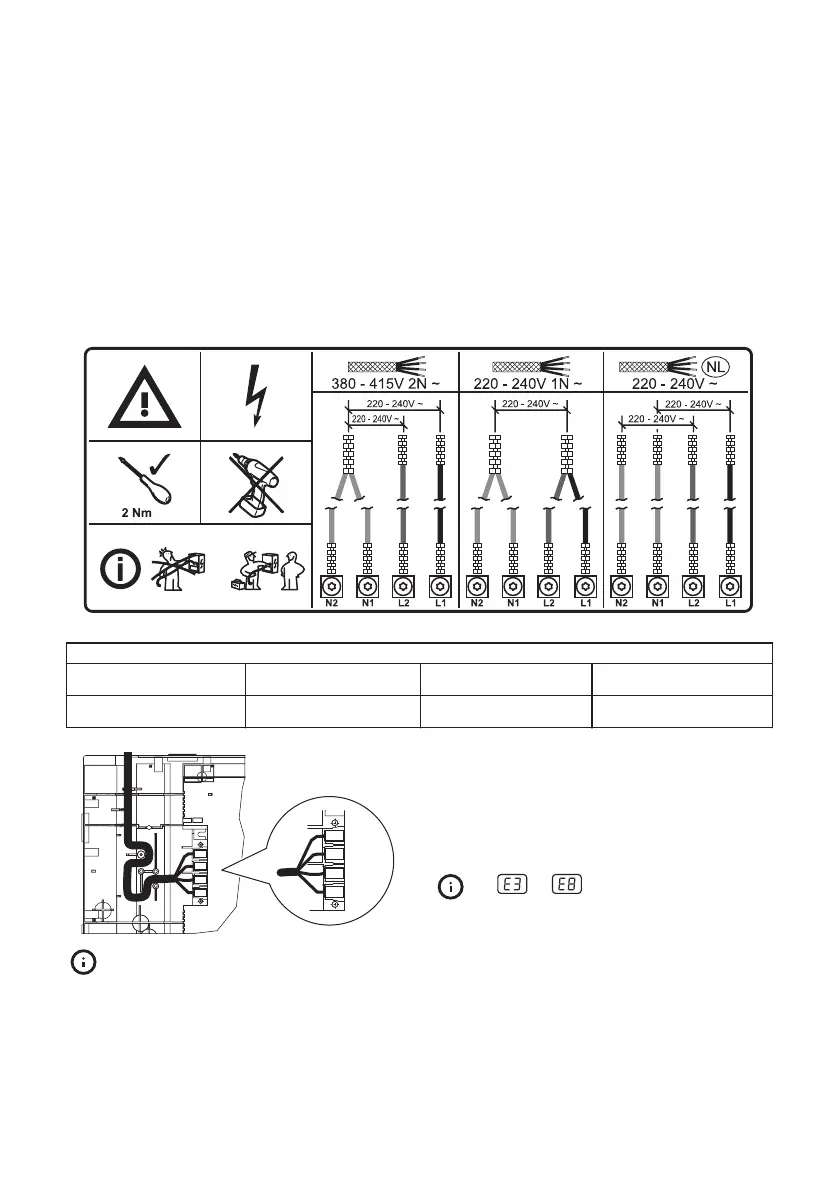

Connection diagram
Wiring colours
N2 N1 L2 L1
Blue Blue - Gray Brown Black
L2
N2
N1
L1
L2
N2
N1
L1
Tighten the terminal screws
securely!
Once you connect the hob to the mains,
check if all the cooking zones are ready to
use. Place a pot with some water on a
cooking zone and set the power setting for
each zone to the maximum level for a short
time.
If or symbol comes on
the display after you switch on
the hob for the rst time, refer to
"Troubleshooting".
ENGLISH 10
