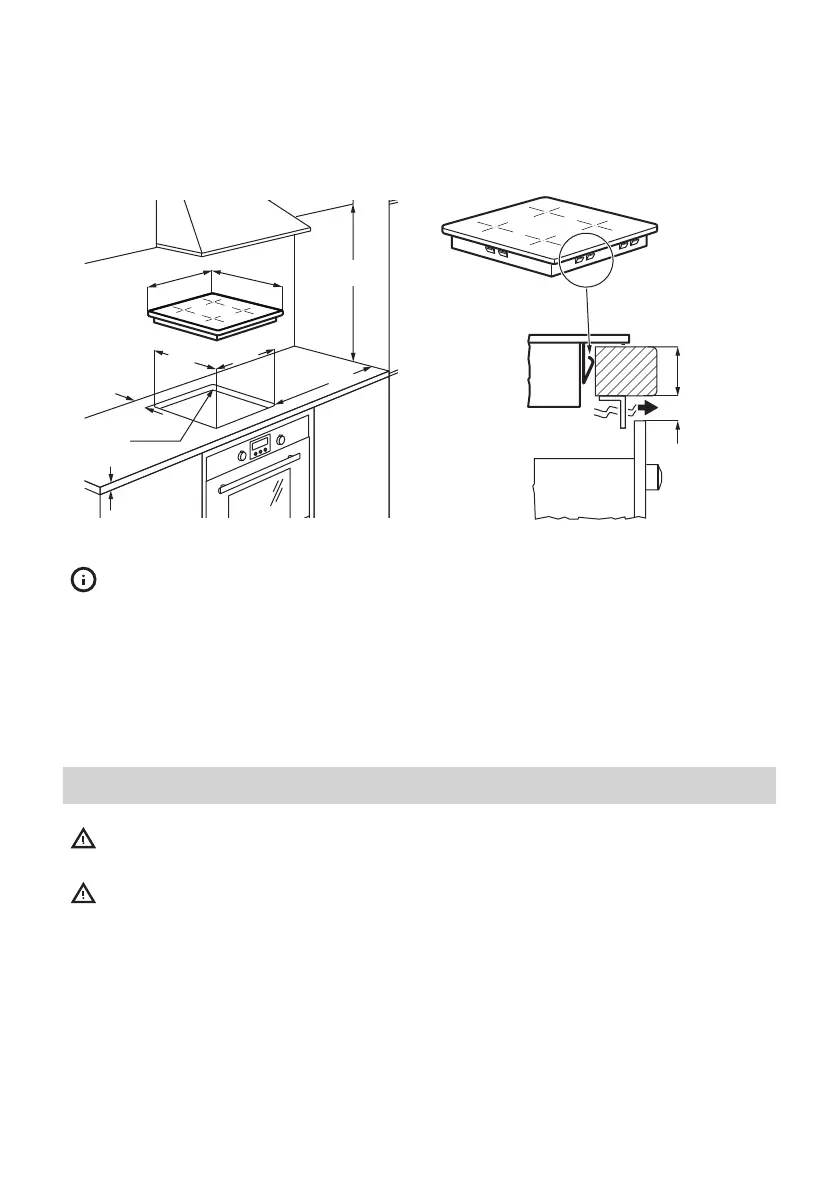

General information
min.
28 mm
max.
R 5 mm
490
±1
mm
560
±1
mm
520 mm
590 mm
min.
55 mm
min.
500 mm
min.
28 mm
min. 50 mm
min.
5 mm
Installation process must follow
the laws, ordinances, directives
and standards (electrical safety
rules and regulations, proper
recycling in accordance with the
regulations, etc.) in force in the
country of use!
• For further information on the installation
refer to the Assembly Instruction.
• If there is no oven beneath the hob,
install a separation panel under the
appliance according to the Assembly
Instruction.
• Do not use silicon sealant between the
appliance and the worktop.
Electrical connection
Warning! Refer to Safety
chapters.
Warning! All electrical
connections must be made by an
authorised installer.
Electrical connection
• Before connecting, check if the nominal
voltage of the appliance, provided on the
rating plate, corresponds to the available
supply voltage. The rating plate is located
on the lower casing of the hob.
• Follow the connection diagram (it is
located on the underneath surface of the
casing of the hob).
• Use only original spare parts provided by
spare parts service.
• The hob is supplied with a connection
cable. To replace the damaged mains
cable, use the cable type: H05V2V2-F or
equivalent, which withstands a
temperature of 70 °C or higher. The
connection cable may only be replaced by
a qualied electrician.
• You must have the means for
disconnection incorporated in the xed
wiring.
