\J
):::,
;;o
-I
(/)
r
1-i
(/)
-I
I
--"

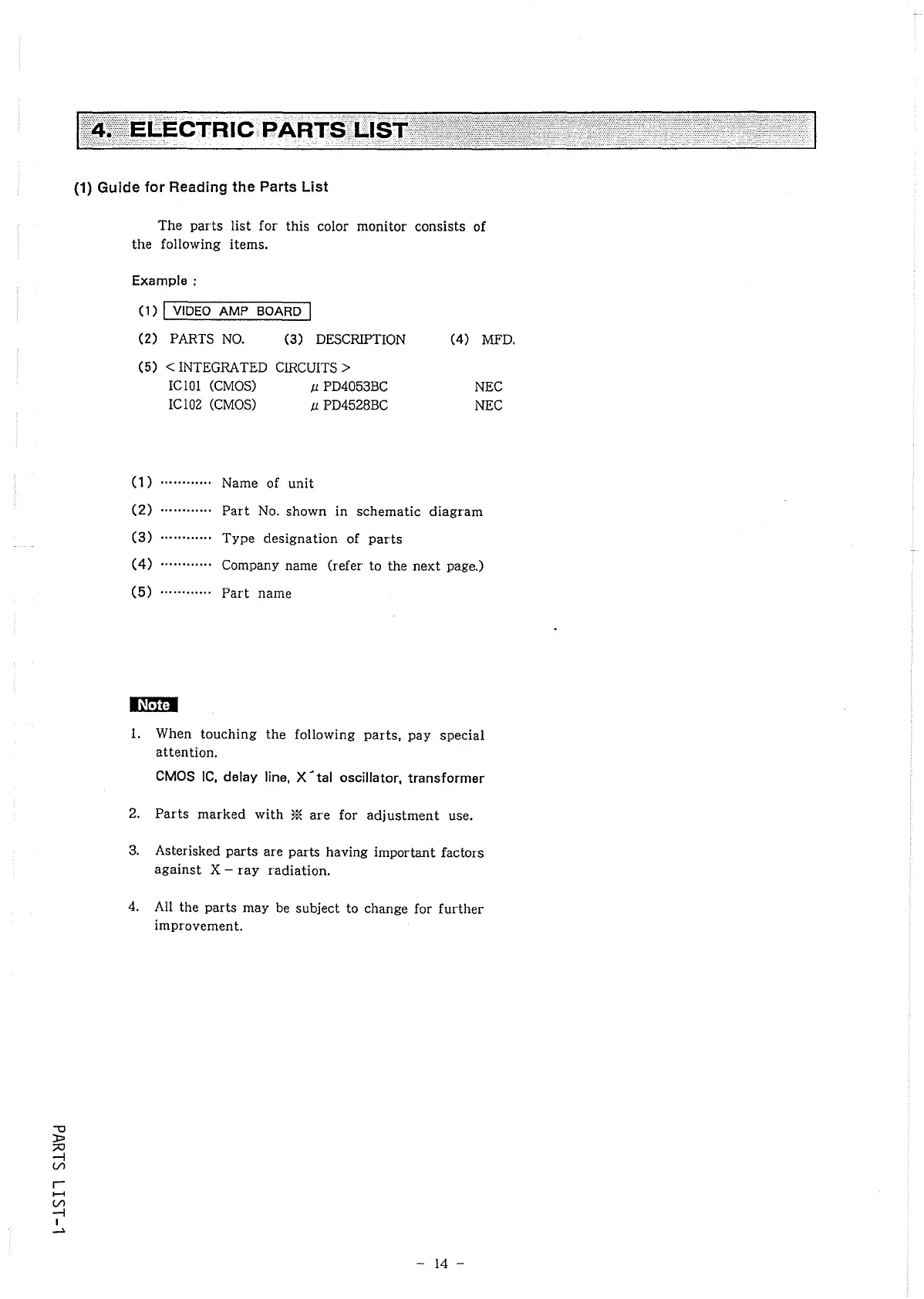

(1) Guide for Reading the Parts List
The parts list for this color monitor consists of
the following items.
Example :
(1) I VIDEO AMP BOARD I
(2) PARTS NO.
(3) DESCRIPTION
( 5) < INTEGRATED CIRCUITS >
ICl0l (CMOS) µ PD4053BC
IC102 (CMOS) µ PD4528BC
( 1)
············
Name
of unit
(4) MFD.
NEC
NEC
(2)
············
Part
No. shown in
schematic
diagram
(3)
············
Type
designation
of parts
(4)
············
Company name
(refer to the next page.)
(5)
············
Part
name
1. When touching the following parts, pay special
attention.
CMOS IC, delay line, X 'tal oscillator, transformer
2. Parts marked with * are for adjustment use.
3. Asterisked parts are parts having important factors
against X - ray radiation.
4. All the parts may be subject to change for further
improvement.
- 14 -
