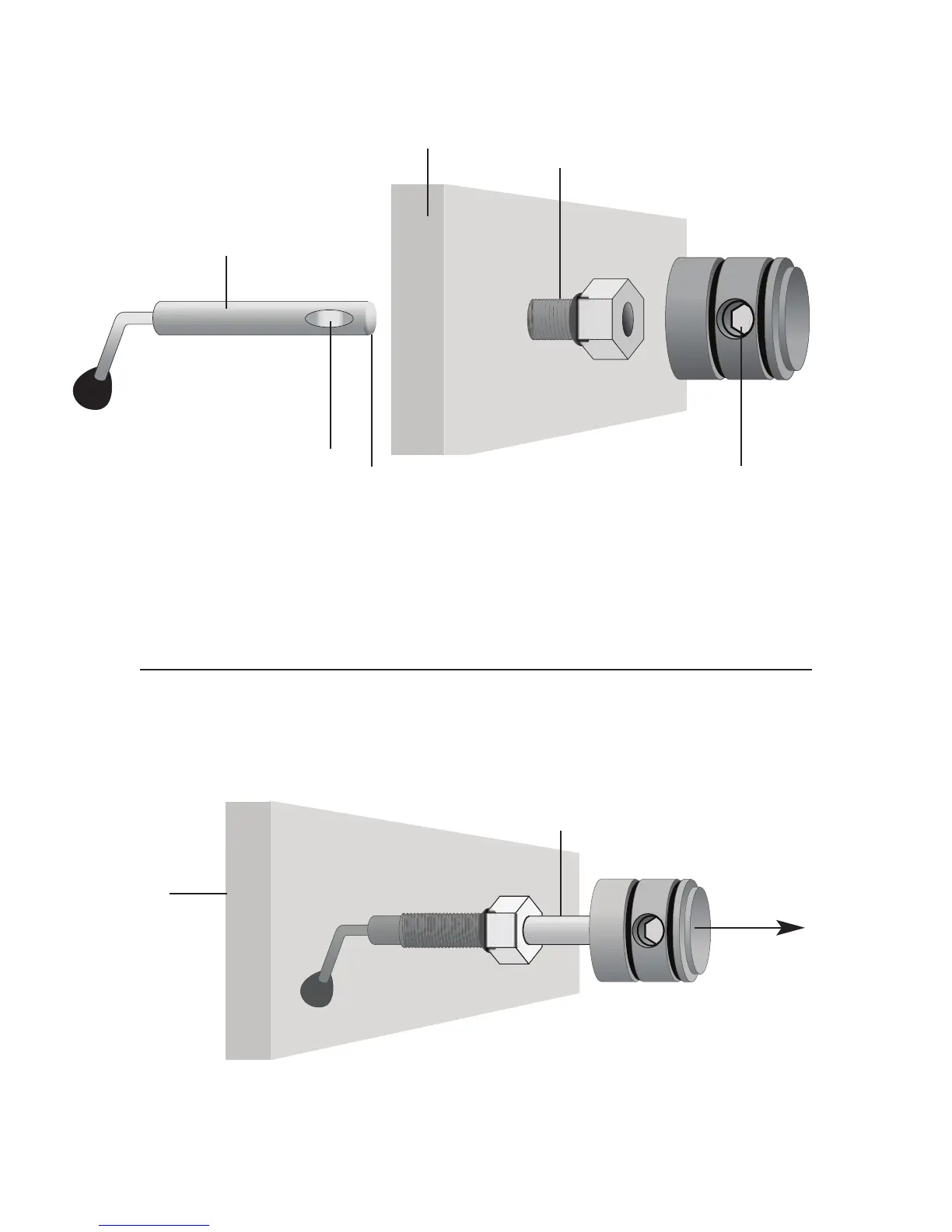

Housing
Lubricate Shaft
Pull out to
expose shaft
Diagram B
Loosen set screw
(allen wrench required)
Tighten set screw down
against this flat area
when replacing the knob.
Housing
Gland
Control Shaft
Lubricate end of shaft
before reinserting into
gland
Diagram A
