Operating manual - English NOVA 2000
11

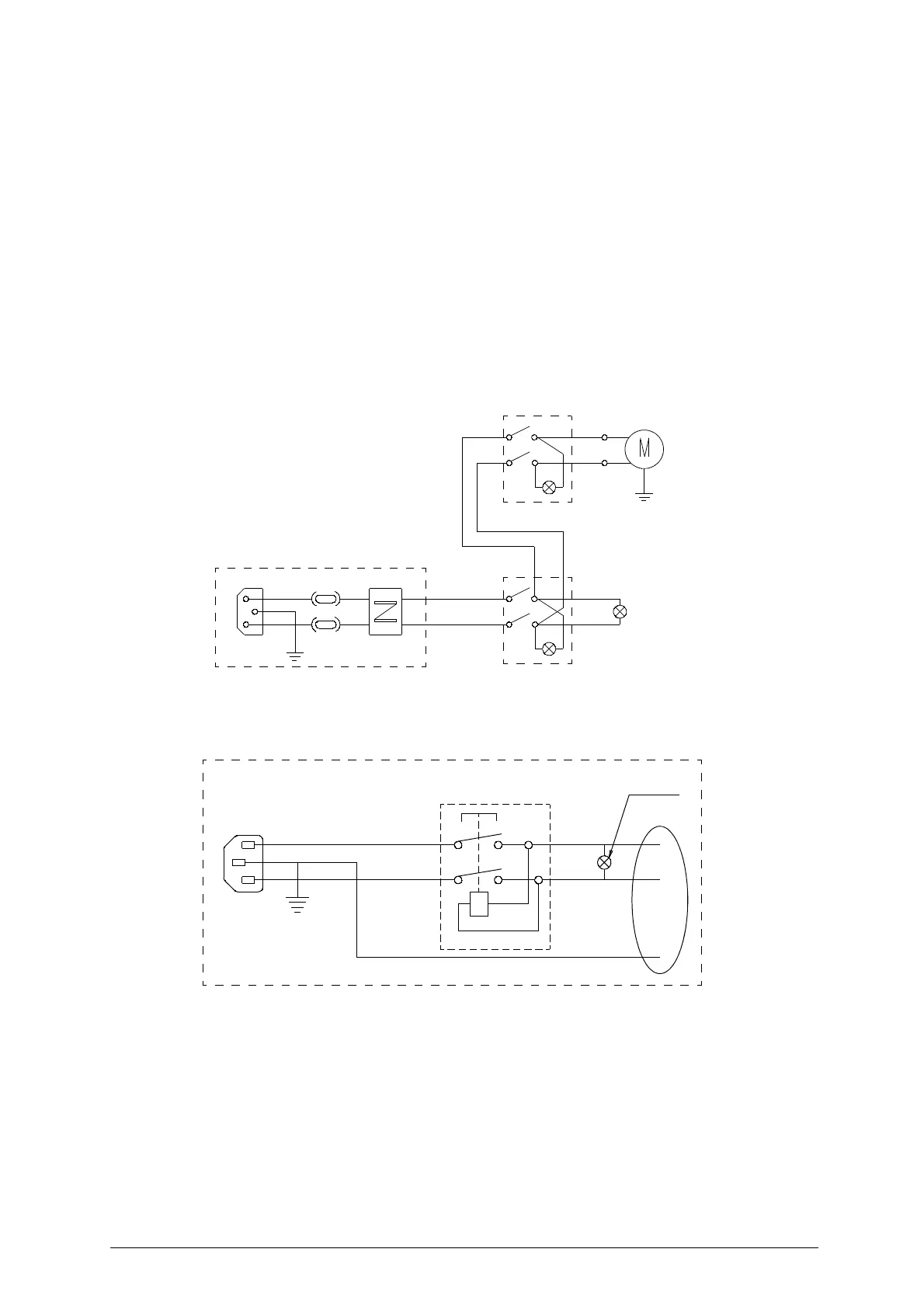

3.3 Electrical circuit
The main parts of the electrical and electronic circuit on the NOVA 2000 are listed below:
1 - Safety device inlet
2- Safety main switch
3- Warning light
4- Wiring clip
5 - Machine plug
6 - Fuse rapid 5x20 3,15A - 250V
7 - Master switch
8 - Lamp 25W 230V
9 - Motor start switch
10 - Electric motor with collector 200W - 220V - 50Hz
Fig. 8
Safety device
3
brown
blue
yellow-green
brown
blue
OUT
IN
4
1
2
6
6
5
8
10
9
7
Filter
Motor
