NOVA 2000 Operating manual - English
14
6 MACHINE REGULATION AND UTILIZATION
Before carrying out cutting operations is necessary proceed with regulation about:
• fitting the tools and setting
• inserting the spring system (for dimple keys) (ch.7.4, page 16)
6.1 Fitting and regulating the tools
ATTENTION: switch on the machine with the master switch.
to remove the tracer point and cutting tool from the sleeves:
1) place the tracer point all the way into the left-hand sleeve and secure by tightening the grub screw
(M) (
fig. 10).
2) place the cutting tool all the way into the right-hand sleeve and secure by tightening the grub screw
(M1).
Releasing the tools
Unscrew the grub screw (M) and (M1) to remove the tracer point and cutting tool from the sleeves.

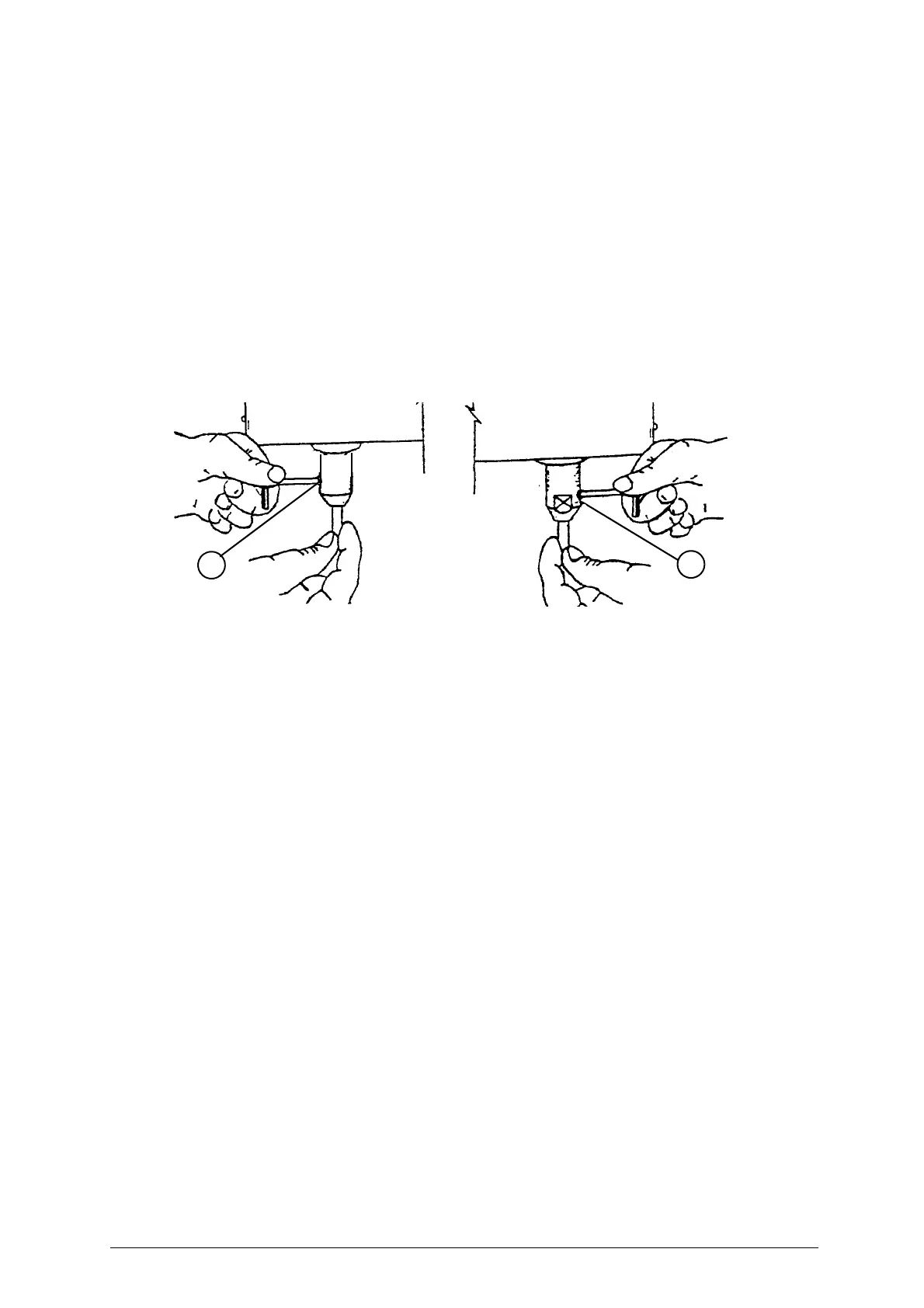

Fig. 10
6.2 Setting
Set up the tools, place two keys into the clamps and proceed as follows (see fig. 6 on page 9):
1) turn the micrometric ring nut (N) anti-clockwise.
2) lower the vertical carriage by means of the lever (I) and rest the tracer point lightly on the relative
key.
3) turn the micrometric ring nut (N) clockwise until the cutting tool touch the relative key.
4) lock ring nut (O) and the knob.
M1
M
