Illustra Flex 3MP and 8MP Outdoor Bullet Quick Start Guide
3 8200-1456-03 G0

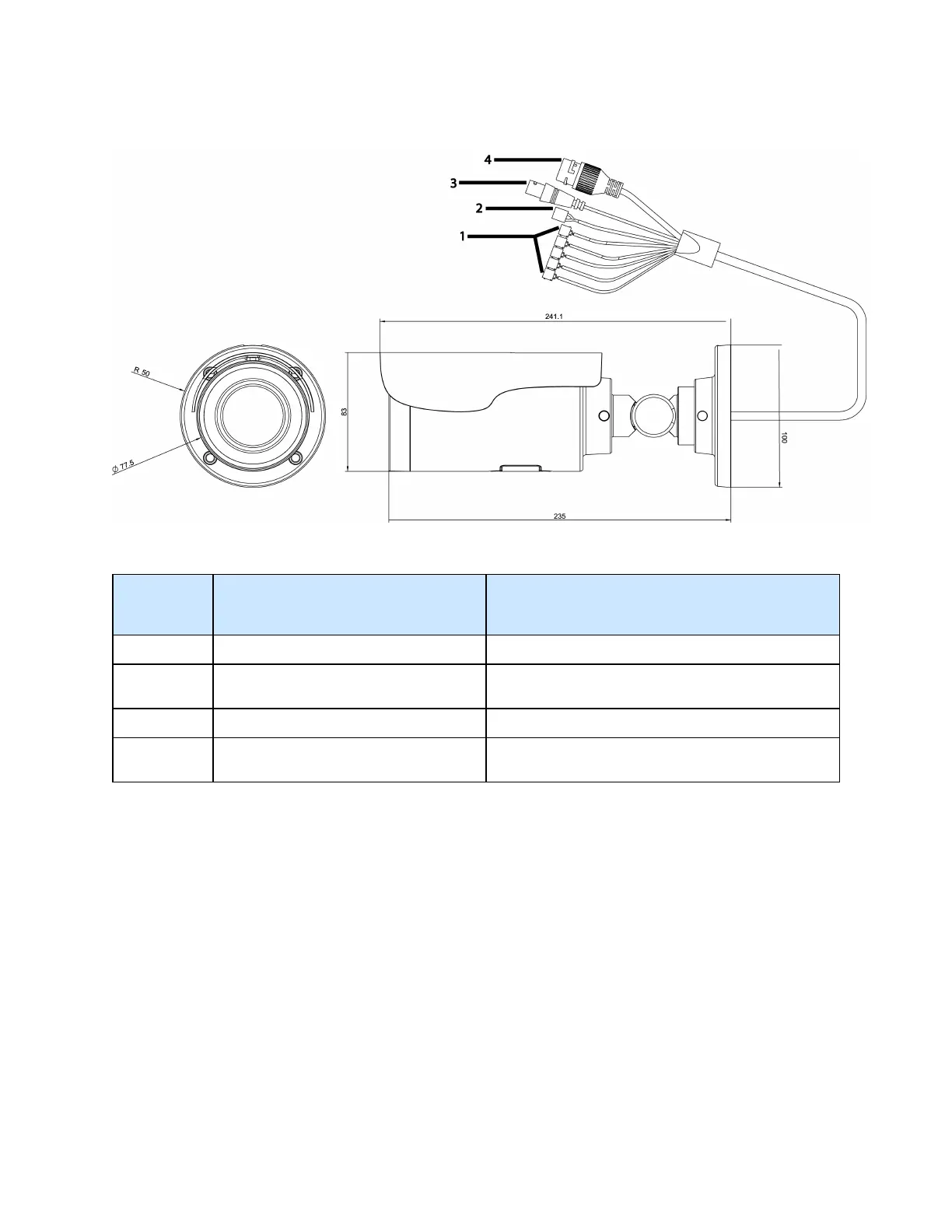

Figure 4 3MP (IFS03B1ONWIT) and 8MP Cameras dimensions (mm) and pictorial index
Table 5 Pictorial index descriptions
Index
number
Name Description
1 I/O connectors Connection for Input/Output devices.
2 Power Connector
Connection to the external power source at AC 24V
only.
3 BNC cable Connection for a BNC cable for analog out.
4
RJ-45 Ethernet Connector/Power over
Ethernet (PoE)
Connection for the RJ-45 cable for network
connection as well as PoE.
The input and output cables of the Illustra Flex Bullet cameras are labeled with icons that designate
their usage. Input/Output connector descriptions on page 4 illustrates and describes these icons.
