Imada ZTS Series How To Use

IMADA CO.,LTD..
Standard Model Digital Force gauge ZTS series
3 / 8
2015/07/28

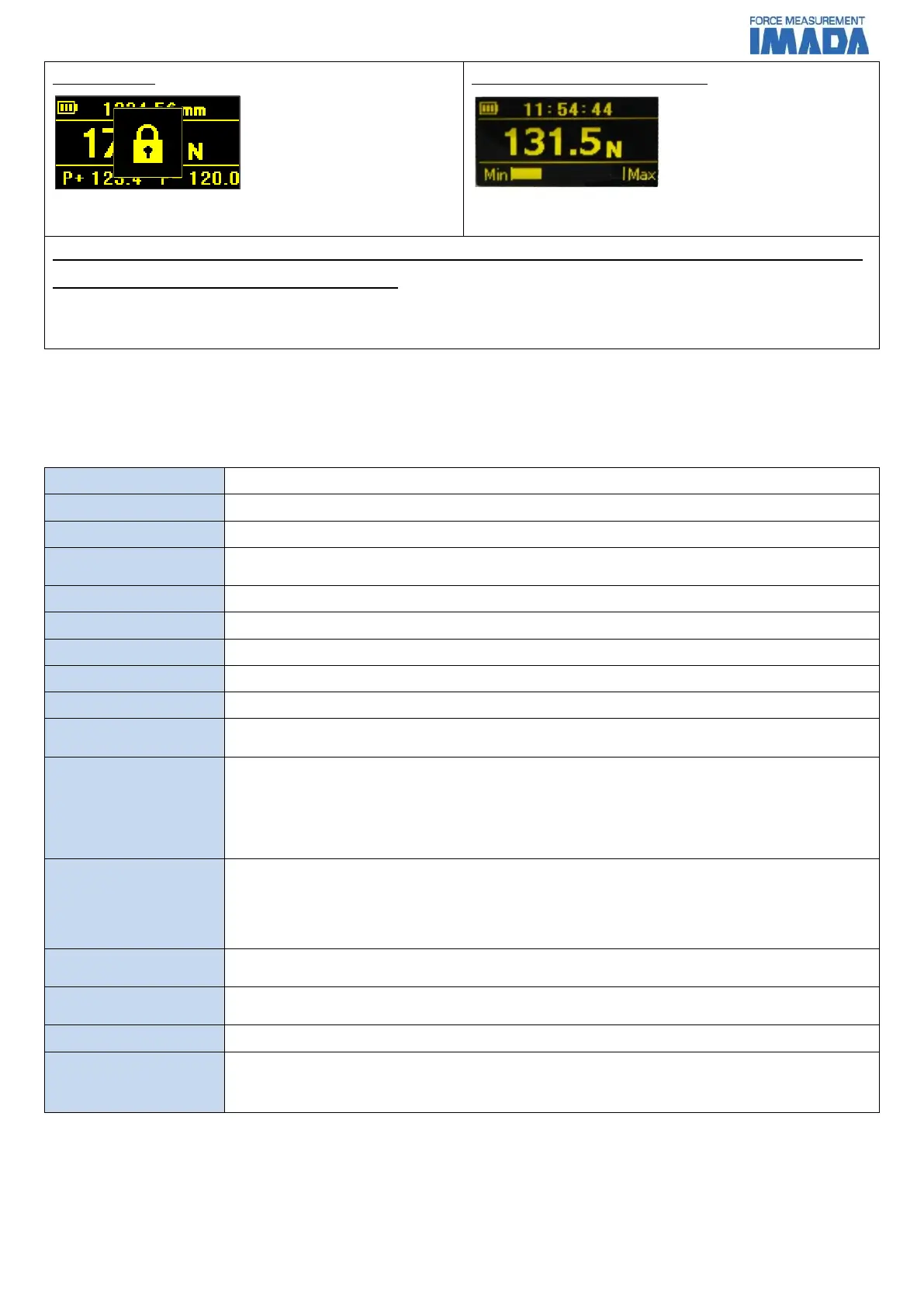

Setting LOCK
It prevents unintentional changes of settings.
Saving measured Date and Time
It has calendar and clock functions which enable saving
measurement data with its time and date record.
When you connect ZTS to a motorized test stand (External equipment) with a dedicated cable,
more useful functions can be activated:
For example… - Avoiding overload (sensor break-down) *2
- Operation control according to selected load values.
*1 It does NOT completely prevent overload. It may be overloaded before the warning indication shows up in the case when high
load is added in a moment.
*2 A motorized test stand and a dedicated cable are necessary to activate this function.
We cannot assure the perfect prevention against overload (sensor break-down).
[Specifications of ZT series]
Model
ZTS
Feature
Standard model with high functionality and usability.
Accuracy
+/-0.2%F.S.+/-1digit
Unit of
measurement(*1)
N, kgf, lbf (*2)
Display
4-digit Organic EL
Display update
16 / sec
Sampling rate
2000 data / sec at maximum
Battery
8 hours (2 hours charge)
Safe overload rating
Approx.200%F.S.
Operating
environment
Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH
Function
Customized display (header and footer), Peak hold (tension and compression), Internal
1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign
inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping,
Time display, Setting lock
Output
USB, RS232C, Mitutoyo digimatic (*3), 2 VDC analog output (D/A),
Comparator 3 steps (-NG/OK/+NG), Overload alarm
Overload warning
Approx.110%F.S. (Warning message and alarm )
External connecting
switch
SEND (a point of contact holding), Zero reset, Peak ON/OFF setting
Weight
From 2N to 1000N model: Approx.490g (*4)
2500N, 5000N: Approx.1100g (*4)
Dimensions
Please refer to dimensions.
Accessory
AC adapter, Inspection certificate, CD driver (including simple software for data
logging), Attachments (The set of attachments varies according to range.), USB cable,
Carrying case.
*1 These are the specifications for International model. Please note that this unit is different from Japanese domestic model and
international one.
*2 [N indication] The indication of 2N and 5N models is mN or N. The indication of 1000N,2500N and 5000N model is N or kN.
[kgf indication] The indication of 2N and 5N models is gf.
[lbf indication] The indication of 2N and 5N models is ozf.
*3 Not always available for Mitutoyo digimatic products.
*4 Weight is slightly different according to range.
Locking the current
settings
Easy data
management

Imada ZTS Series Specifications

General

Display	LCD
Sampling Rate	2000 Hz
Measurement Units	N, kgf, lbf
Data Output	USB, RS-232
Power Supply	AC adapter or battery
Battery Life	Approx. 8 hours
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 50°C (14°F to 122°F)
Accuracy	+/- 0.2% F.S.
