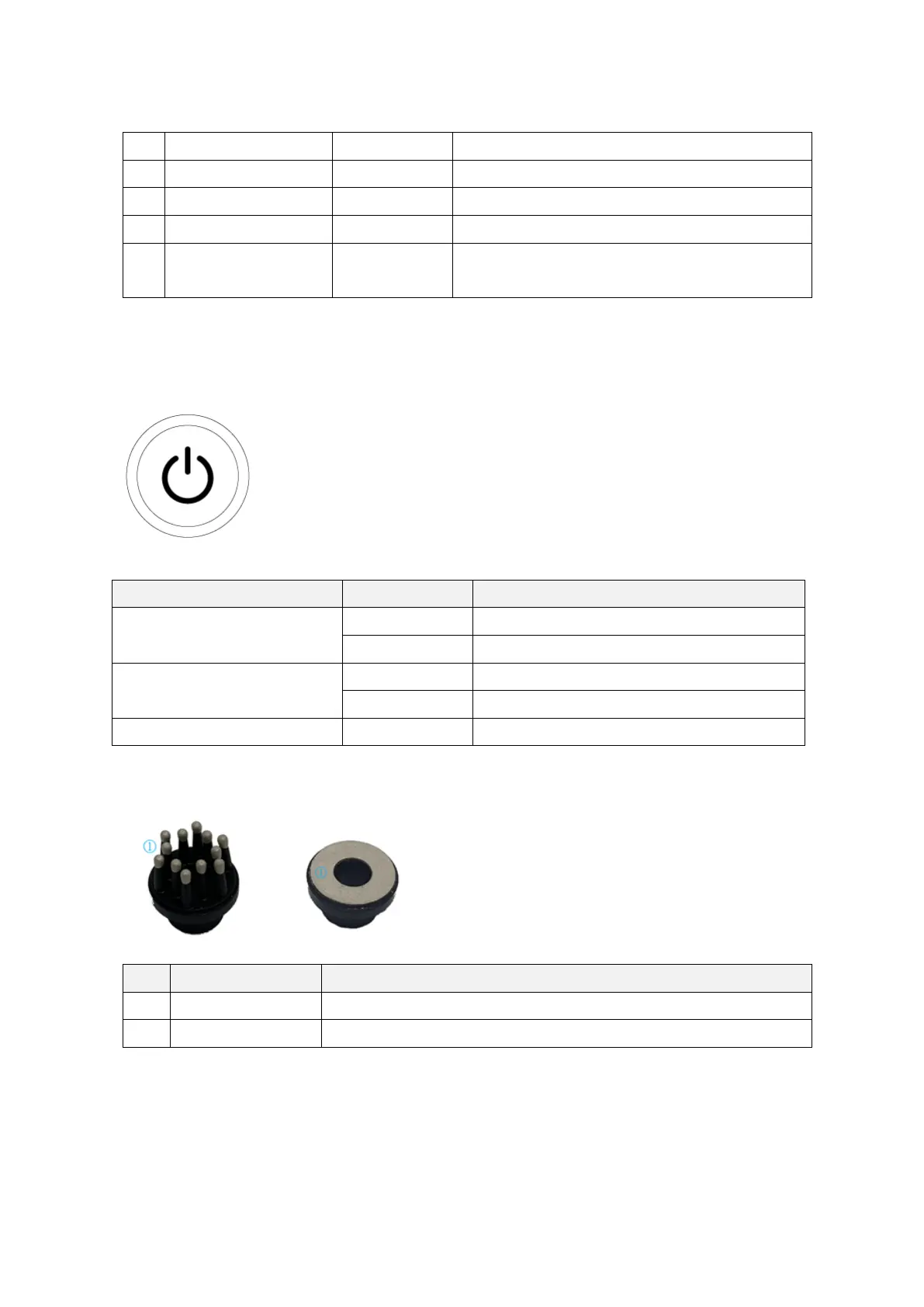

iMediSync iSyncWave - Right Side Component View; Types of Electrodes

Page 12 of 46
2
PPG sensor
PPG-W01
Ear clip sensor measuring PPG
3
USB-C charging port
-
Charge lithium-ion battery
4
Power button
-
Turn the device power on and off
5
Electrode
-
Electrodes for EEG measurement
6
Chin strap
-
Secure the device on patient/subject when
using the device
4.2 Right
The power button is at the right side of the device. When the device is turned on or charging, the
LED light on the power button will indicate the status of the device.
<Power Button LED Status>
Status
Color
Description
When turned on
Green
Battery level above 30%
Magenta
Battery level below 30%
When charging
Green
Battery level above 95%
Magenta
Battery level below 95%
When measuring
None
4.3 Types of Electrodes
No.
Name
Description
1
Brush electrode
Ag/AgCl coated conductive polymer (Used except on forehead)
2
Flat electrode
Ag/AgCl coated conductive polymer (Used on the forehead)
5. How to Use the Device
After unpacking from the box, check if the package contains all components; iSyncWave device,
accessories, and user manual.
• Carefully read the user manual and share the documentation if necessary.
