Operation Modes & LED Indications
General Notes:
• Short Press to turn laser tool ON to project all laser beams in Full Time
Pulse Mode;
• Press repeatedly to cycle through the available modes.
• Press and hold for ≥ 2 seconds to turn laser tool OFF ONLY when the
pendulum is locked.
• Press and hold for ≥ 2 seconds to activate Outdoor Pulse Mode when the
pendulum is unlocked, and laser beams will flash 5 times to alert user that
Outdoor Pulse Mode is activated.
• Press and hold again for ≥ 2 seconds to get back to Full Time Pulse
Mode
Self-leveling Mode
• When the pendulum is unlocked the LX3D is in self-leveling mode. If the
LX3D is tilted beyond the self leveling parameters then the laser will rapidly
blink to warn the user.
• The LX3D has a Full Time Pulse Mode as well as an Outdoor Pulse Mode
that can be used with a Laser Detector in much brighter environments or at
much greater working distances.
Manual Mode
• When the pendulum is locked the LX3D can be tilted to any angle.
When locked the laser will slowly blink to notify the user that it is not
self-leveling.

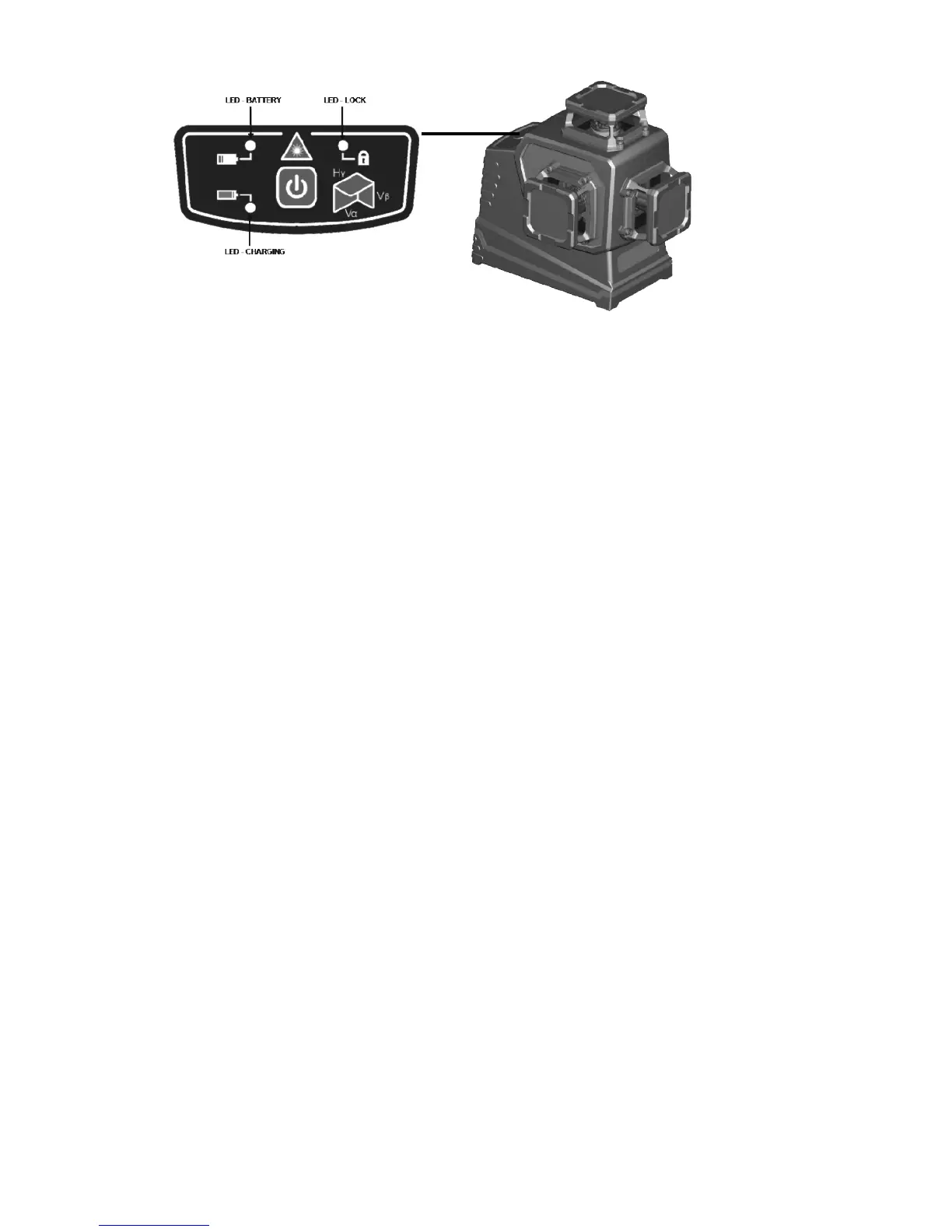

LED Indications
• LED-BATTERY is solid red when LX3D is powered on, and it will blink when
voltage is ＜3.6V±0.2V;
• LED-LOCK is OFF when LX3D pendulum is unlocked, and it’s solid red
when LX3D pendulum is locked.
• LED-CHARGING is OFF when no charger is plugged in, and it blinks green
during charging and turns solid green when charging is complete.
