Applications

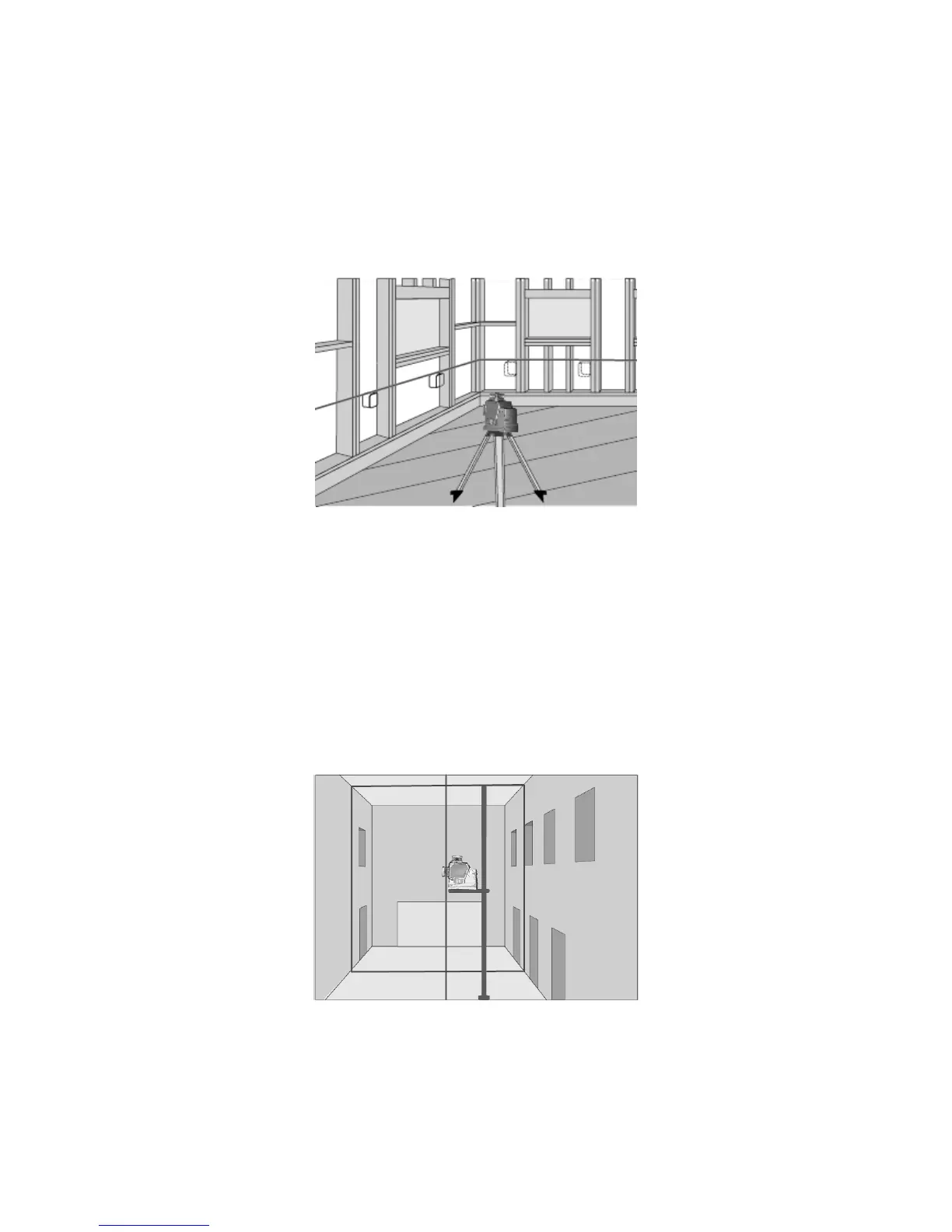

Level / Point Transfer
• Establish a horizontal reference plane by using the horizontal laser beam.
• Position the desired object(s) until they are aligned with the horizontal
reference plane to make sure that the object(s) are level.
Plumb / Point Transfer
• Establish a vertical reference plane by using the vertical beam.
• Position the desired object(s) until they are aligned with the vertical
reference plane to make sure that the object(s) are plumb.
• Establish 2 reference points which need to be plumb.
• Align either the up or the down plumb beam to a set reference point.
• The opposing plumb beam(s) will be projecting a point which is plumb.
• Position the desired object until the laser beam is aligned with the second
reference point which needs to be plumb with the set reference point.
