Technical specications
Maximum capacity of the contacts 16(2,5)A/250V~
Type of action 1B
Temperature regulation range 5°÷30°C
Temperature differential 0,4K÷0,8K
Output switching contacts
Degree of protection IP 20
Insulation class Double insulation
Pollution degree 2
Storage temperature 0°÷50°C
Rated impulse withstand voltage 4kV
Installation to the wall
Temperature rate of change 1K/15min.
It is recommended to install the appliance strictly in compliance with all safety and law provisions in
force.

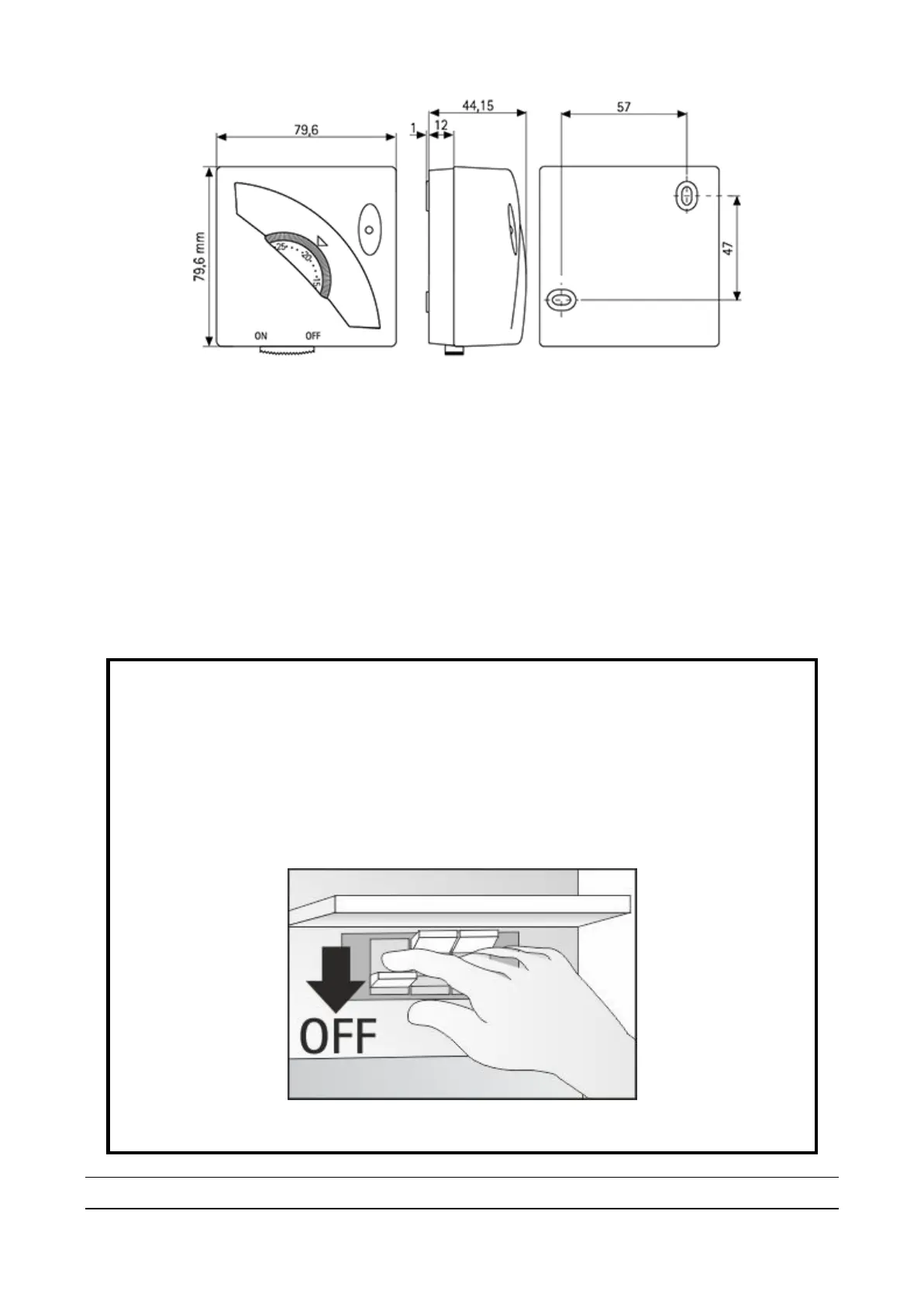

Before connecting the thermostat, make sure that the supply voltage of the UNIT TO BE
CONTROLLED (boiler, pump, air-conditioning system, etc.) is NOT CONNECTED and that it matches
the indication given inside the appliance (250V~ max). (g.5)
In case of repeated malfunctioning, please call our Technical Service. Do not tamper for any reason
with any part of the thermostat.
FIG. 5
THERMOSTAT CONTROL KEYS
