INSTALLATION
PLACEMENT OF THE THERMOSTAT
FIG. 6

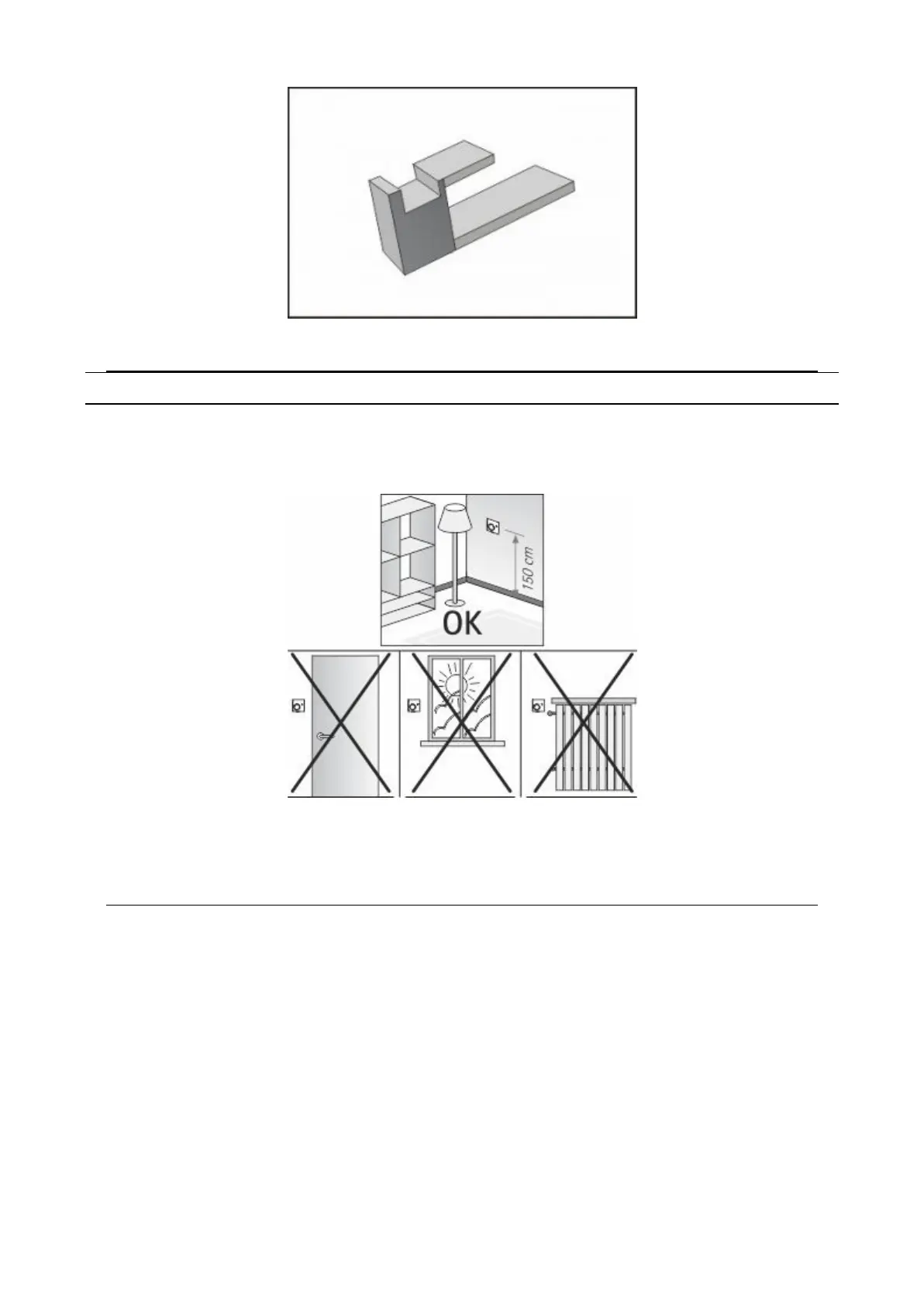

Install the thermostat away from heat sources (radiators, sunrays, and kitchens) and away from
doors/windows, at approx. 1,5 m height from the oor. (g.6)
INSTALLATION AND WIRING CONNECTIONS
A) In case the thermostat shall be installed either in a round built-in box (having distance between centres
equal to 60mm), or on an uneven wall surface or in other particular locations, it is recommended to use a sub-
base tting (see paragraph “Optional Accessories ”). Fix the tting to the wall through two holes other than the
ones marked as B-B, which are exclusively provided for the thermostat installation. (g.7)
