FIG. 12

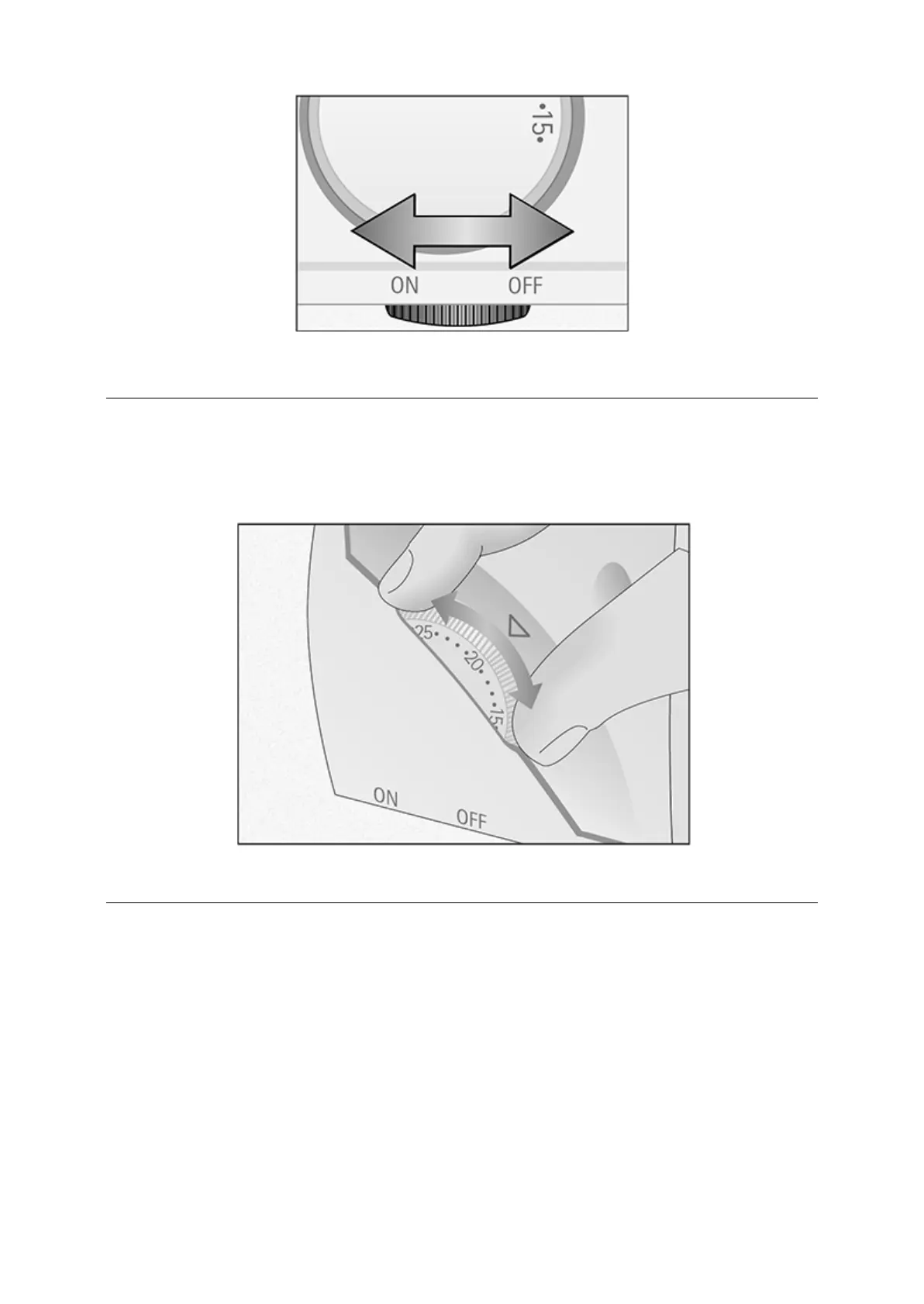

TEMPERATURE SETTING
When the appliance is connected and the electric power is switched on, set the desired room temperature
simply by turning the temperature-adjusting knob to the corresponding value on the graduated scale. (g.11)
FIG. 11
TEMPERATURE RANGE
RESTRICTION AND TEMPERATURE LOCK
WARNING:
THE TEMPERATURE RANGE RESTRICTION AND TEMPERATURE LOCK OPERATIONS MUST BE CARRIED
OUT BY QUALIFIED PERSONNEL ONLY.
TEMPERATURE RANGE RESTRICTION
Remove the front cover from the thermostat base by releasing the provided clip. (g.8)
