Imit TA3 - Controls and Operation; Turning the Thermostat On and Off

21/9/2018 TA3 - TA3 A - TA3 B - TA3 C - Imit Control System s.r.l.
https://manimit.it/en/ta3-ta3-ta3-b-ta3-c-10/ 6/10

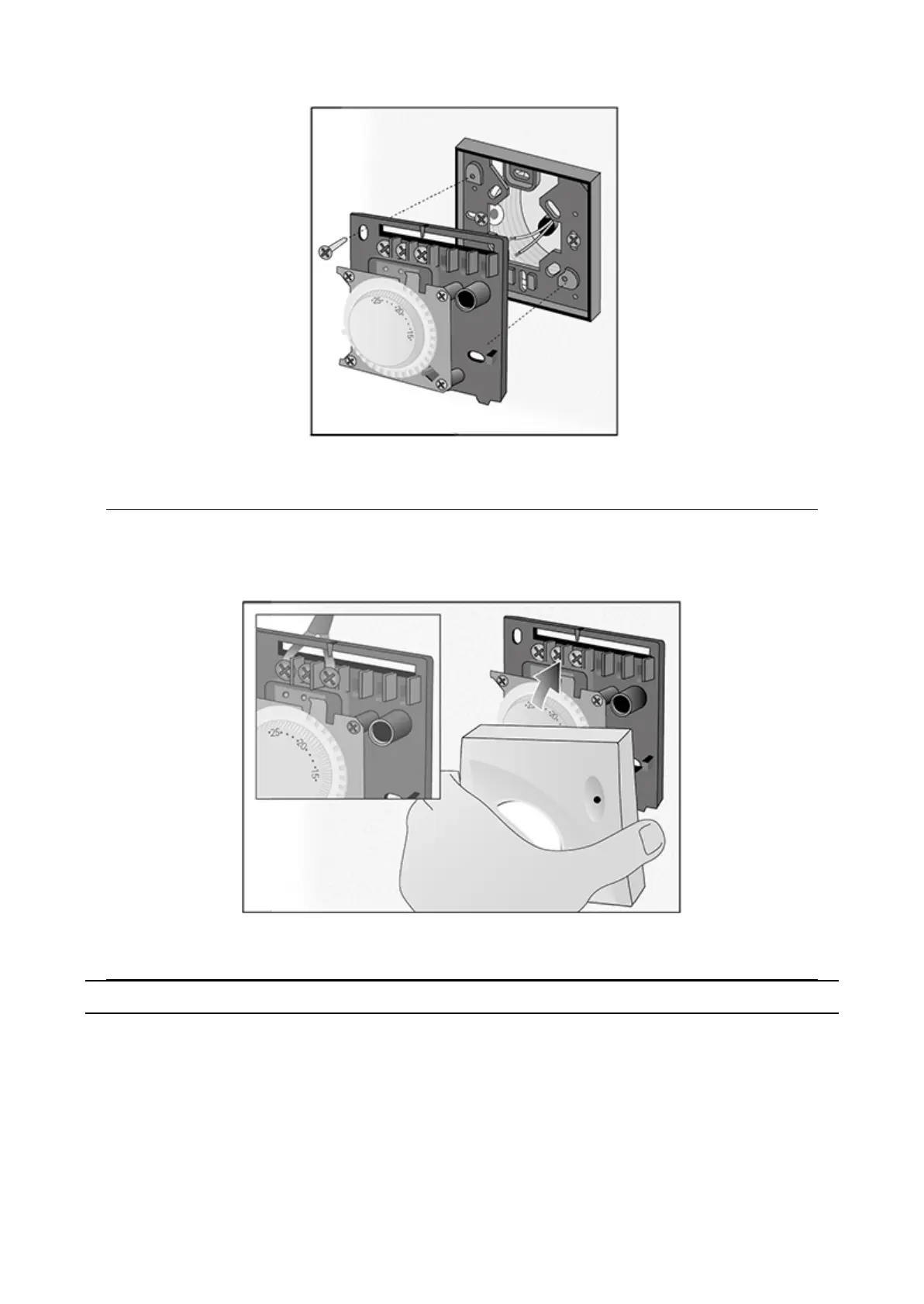

FIG. 9
C) Thread the power supply wires through the slot in the base and connect them to the terminals as per the
wiring diagram sketched inside the appliance. Snap the front cover back. (g.10)
FIG. 10
DESCRIPTION OF CONTROLS AND OPERATION
TURNING THE THERMOSTAT ON AND OFF
On TA3-B, put the switch onto the “ON” position to start the equipment or onto the “OFF” to turn it off. (g.12)
