3
STCS ed 07/02 CAESAR Star
Technical Documentation Technical Documentation

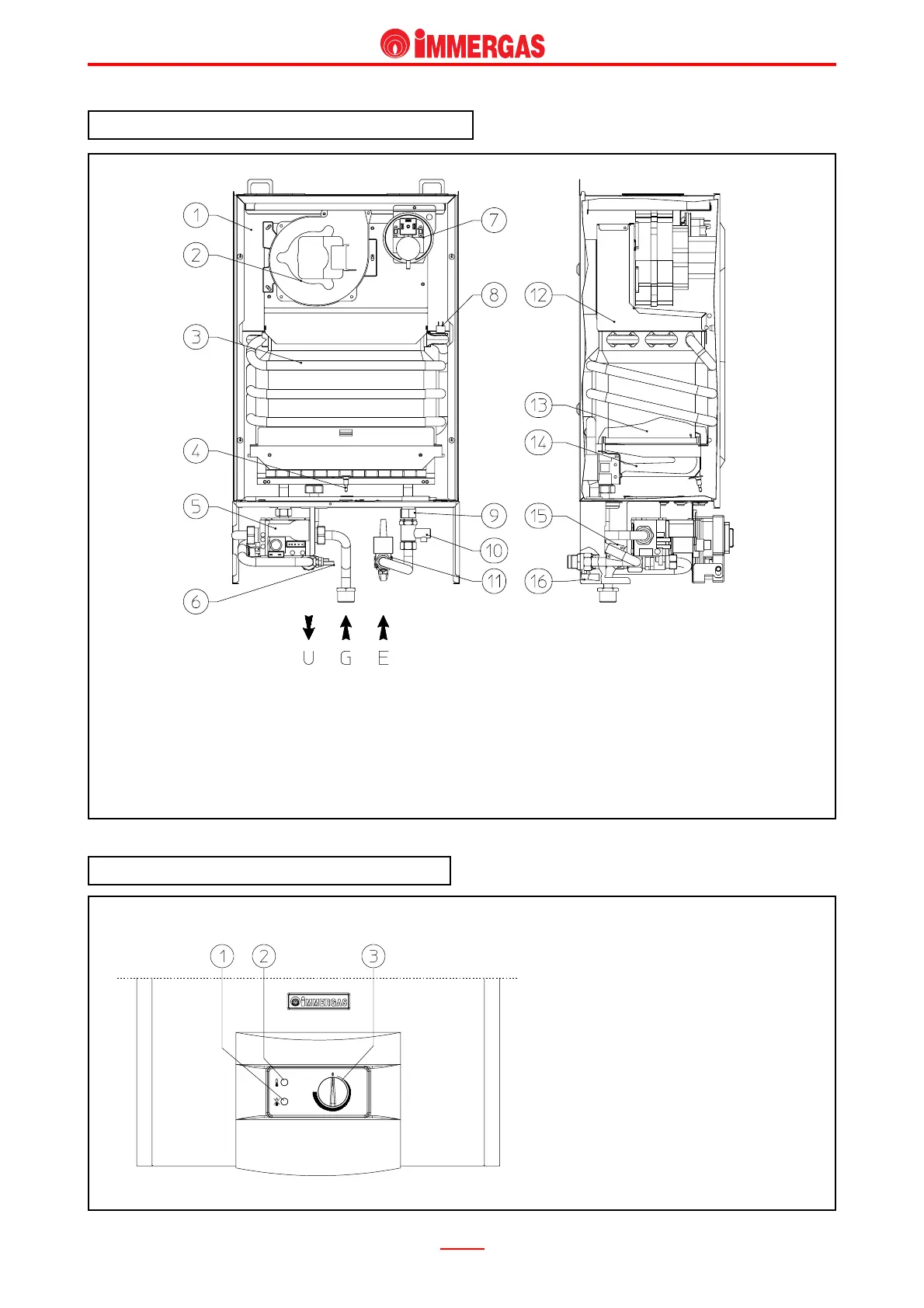

CAESAR Star main component parts.
Key:
1 - Sealed chamber
2 - Fume expulsion fan
3 - D.h.w. exchanger
4 - Ignition/detection glow electrode
5 - Gas valve
6 - D. h. w. NTC probe
7 - Fan safety pressure switch
8 - Overheat. safety thermostat
CAESAR Star Control Panel.
Key:
1 - Bathroom water heater stop red indicator
light
2 - Flame yellow indicator light
3 - Operation switch: 0/ (Reset) and on
temperature switch
9 - Flow limiter
10 - 10 bar safety valve / one way valve
11 - Flow meter
12 - Draught diverter.
13 - Combustion chamber
14 - Burner
15 - D.h.w. limit thermostat
16 - Cold water inlet cock
