Immergas CAESAR 14 Star - Hydraulic Circuit

4
STCS ed 07/02 CAESAR Star
Technical Documentation
Technical Documentation

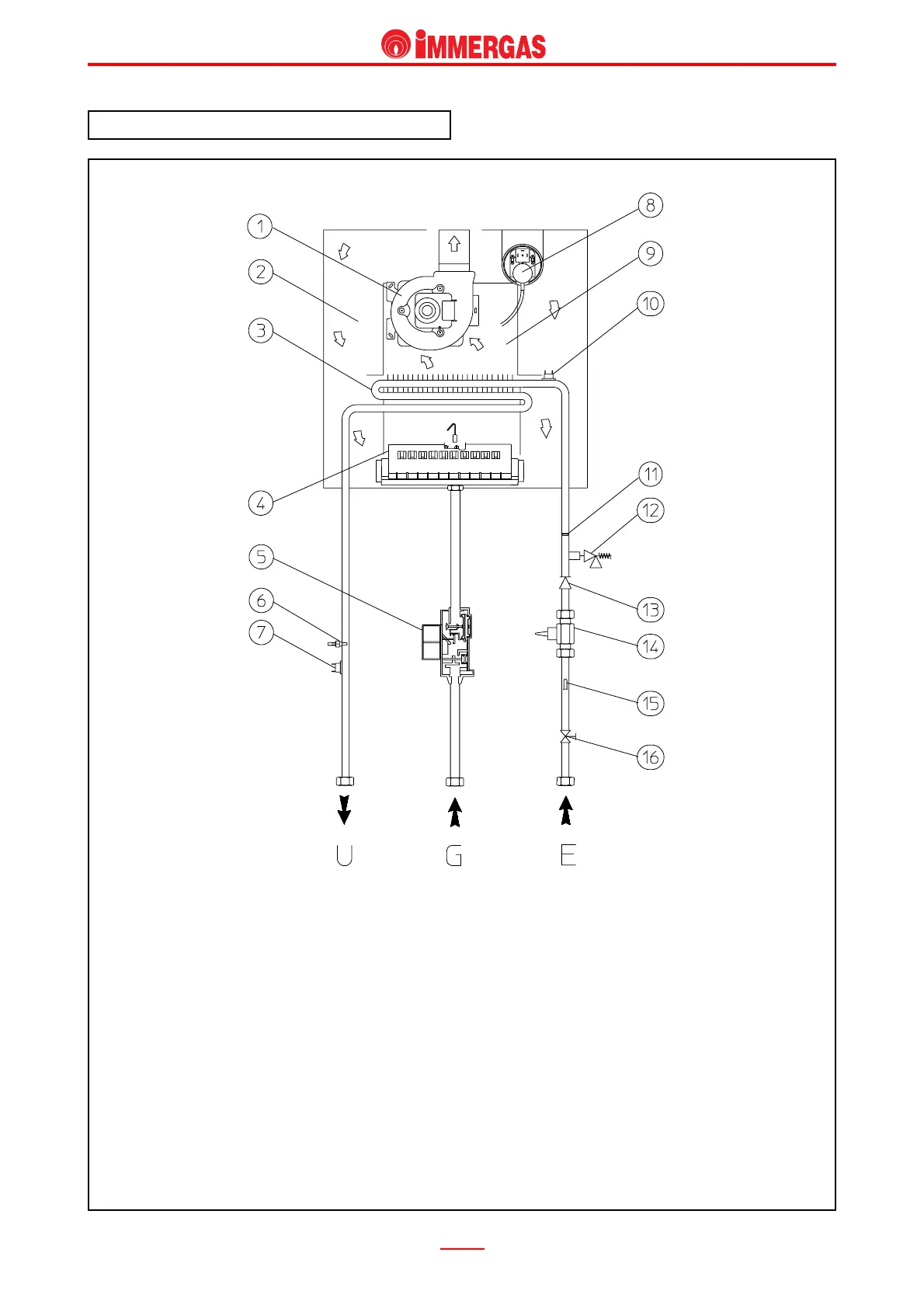

Hydraulic circuit.
Key:
1 - Fume extraction fan
2 - Sealed chamber
3 - Exchanger
4 - Main burner
5 - Gas valve
6 - D.h.w. adjustment NTC probe
7 - Overheat. temp. safety thermostat
8 - Air pressure switch
9 - Draught diverter
10 - Exchanger safety thermostat
11 - Flow limiter
12 - 10 bar safety valve
13 - One way valve
14 - Flow meter
15 - Water inlet filter
16 - D.h.w. inlet cock
U - D.h.w. outlet
G - Gas supply
E - D.h.w. inlet
