3.3 WIRING DIAGRAM
Pursuant to applicable national regulations, xed wiring
must have an integrated single-pole disconnect device with
a distance between contacts of at least 3 mm on all poles and
a circuit breaker of at least 10 mA.
e device must be installed in compliance with the national
regulations in force.

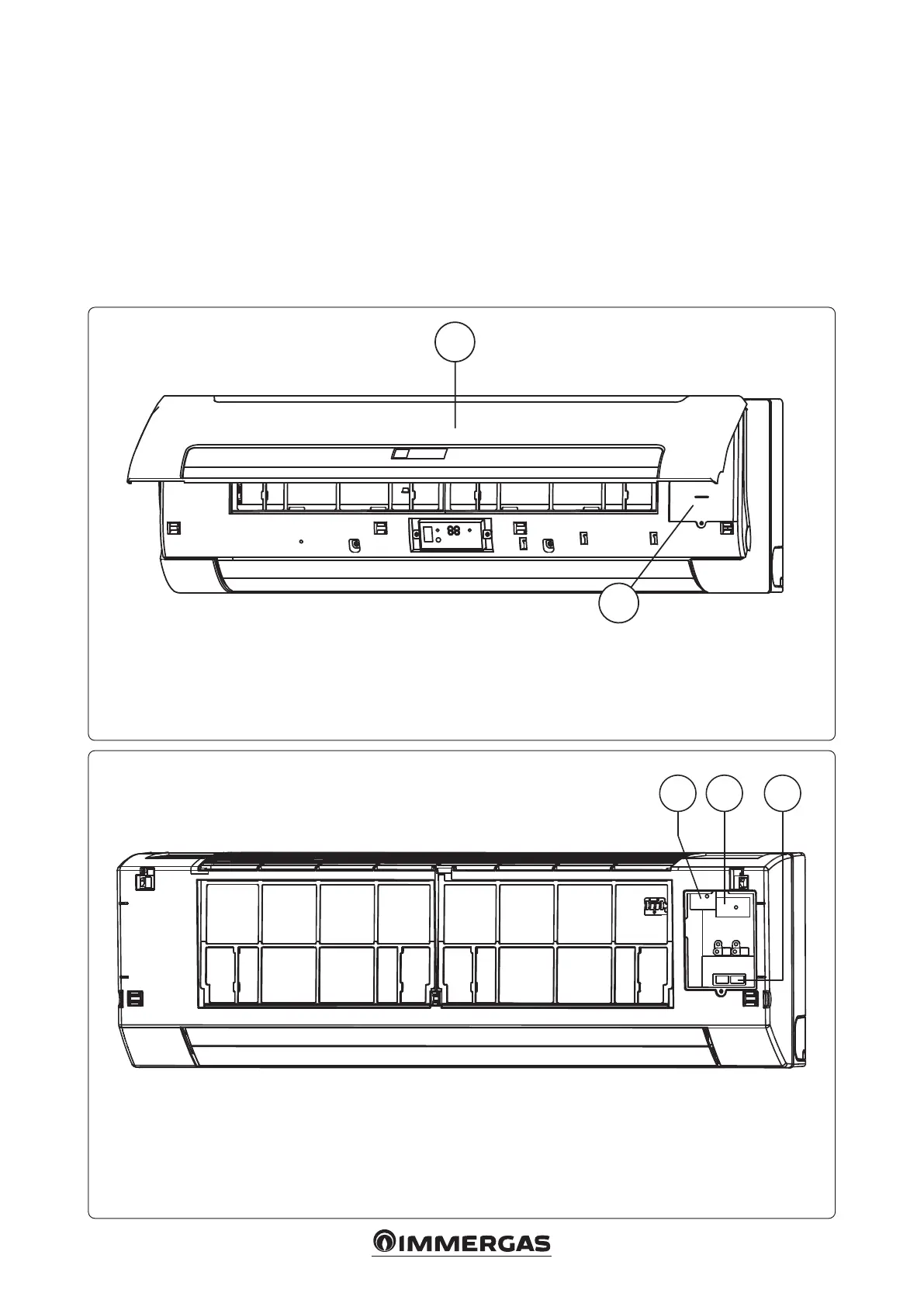

- remove the front protection and take o the plate (Fig. 16).
- Connect the power cable and the auxiliary lines, then
congure if necessary (Fig. 17).
Key:
1 - Auxiliary lines terminal block (5 positions)
2 - Power cable terminal block (3 positions)
3 - Conguration dip switch
Key:
1 - Front panel
2 - Display cover plate
