1.12 CONCENTRIC VERTICAL KIT
INSTALLATION.
Type C configuration, sealed chamber and
fan assisted.
Concentric vertical intake and exhaust kit. is
vertical terminal is connected directly to the out-
side of the building for air intake and ue exhaust.
N.B.: the vertical kit with aluminium tile enables
installation on terraces and roofs with a maxi-
mum slope of 45% (approx 25°) and the height
between the terminal cap and half-shell (374 mm
for Ø 60/100 and 260 mm for Ø 80/125) must
always be observed.
Vertical kit with aluminium tile Ø 60/100.

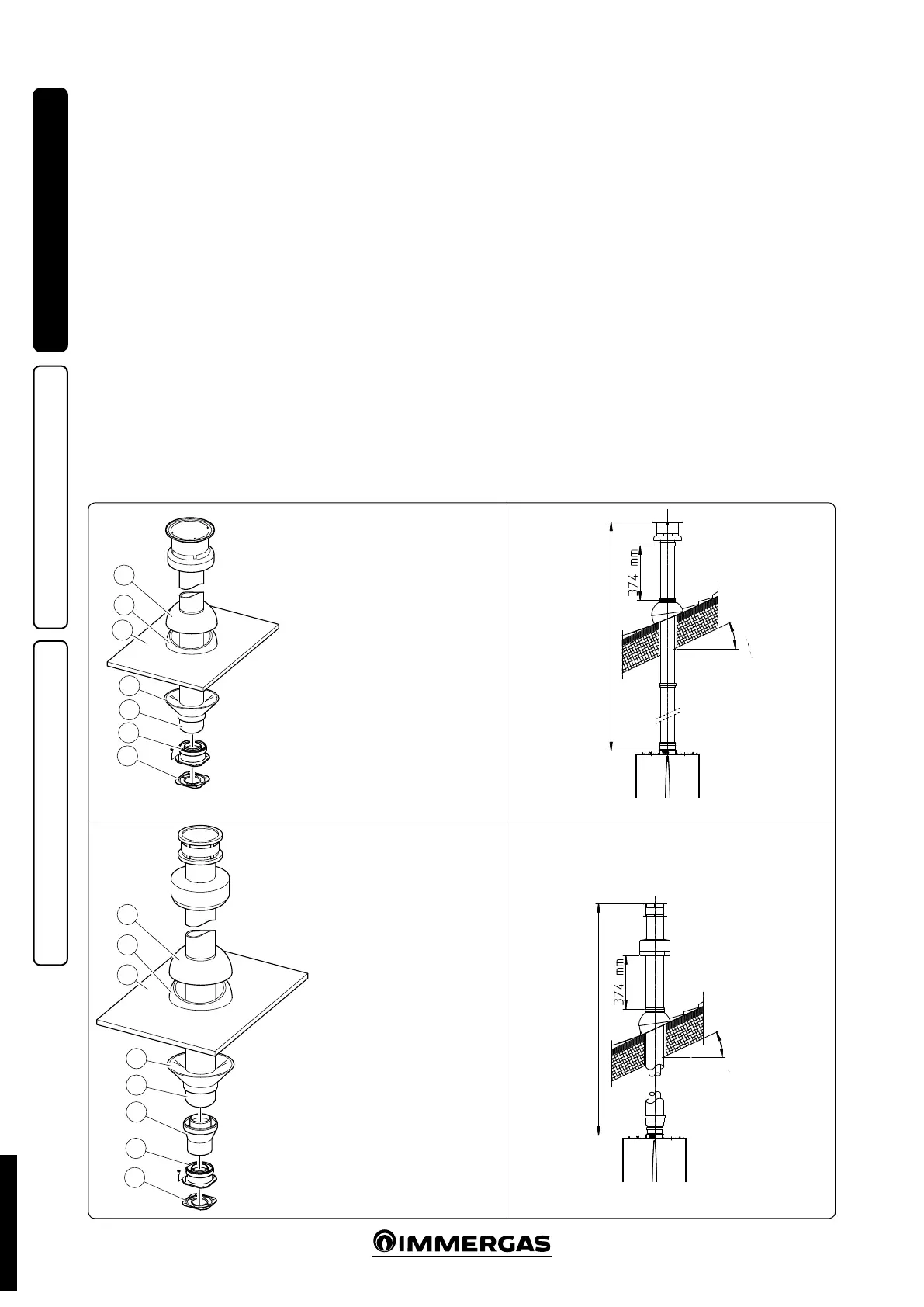

Kit assembly (Fig. 1-17): install the concentric
ange (2) on the central hole of the boiler, posi-
tioning gasket (1) with the circular projections
downwards in contact with the boiler ange, and
tighten using the screws contained in the kit.
Installation of the fake aluminium tile: replace
the tiles with the aluminium sheet (4), shaping
it to ensure that rainwater runs o. Position
the xed half-shell (6) on the aluminium tile
and insert the intake-exhaust pipe (5). Fit the
Ø 60/100 (3) concentric terminal pipe with the
male side (5) (smooth) into the ange (2) up to
the end stop; making sure that the wall sealing
plate has been tted (3), this will ensure sealing
and joining of the elements making up the kit.
• Extensions for vertical kit Ø 60/100 (Fig.
1-18). e kit with this conguration can be
extended to a max. straight vertical length of 4,7
m, including the terminal. is conguration
corresponds to a resistance factor of 100. In this
case specic extensions must be requested.
Vertical kit with aluminium tile Ø 80/125.
Kit assembly (Fig. 1-19): to install the kit Ø
80/125 one must use the anged adapter kit in
order to install the ue system Ø 80/125. Install
the anged adaptor (2) on the central hole of the
boiler, positioning gasket (1) with the circular
projections downwards in contact with the boiler
ange and tighten using the screws contained
in the kit. Installation of the fake aluminium
tile: replace the tiles with the aluminium sheet
(4), shaping it to ensure that rainwater runs o.
Position the xed half-shell (5) on the aluminium
tile and insert the intake-exhaust pipe (7). Fit the
Ø 80/125 concentric terminal pipe with the male
side (smooth) to the female side of the adapter (1)
(with lip gaskets) up to the end stop; making sure
that the wall sealing plate (3) has been tted, this
will ensure sealing and joining of the elements
making up the kit.
• Extensions for vertical kit Ø 80/125 (Fig. 1-20).
e kit with this conguration can be extended
up to a max. length of 12,2 m including the ter-
minal. If additional components are assembled,
the length equivalent to the maximum allowed
must be subtracted. In this case specic exten-
sions must be requested.
MAX 45%
MAXIMUM LENGTH 12200 mm
MAX 45%
MAXIMUM LENGTH 4700 mm
e xing plate kit includes:
N° 1 - Gasket (1)
N° 1 - Female concentric ange (2)
e vertical kit includes:
N° 1 - Int./exhaust concentric pipe 0
60/100 (3)
N° 1 - Wall sealing plate (4)
N° 1 - Aluminium tile (5)
N° 1 - Fixed half-shell (6)
N° 1 - Mobile half-shell (7)
e kit includes:
N° 1 - Gasket (1)
N° 1 - Female concentric ange
(2)
N° 1 - Adapter
Ø 80/125 (3)
N° 1 - Int./exhaust concentric
pipe 0 80/125 (4)
N° 1 - Wall sealing plate (5)
N° 1 - Aluminium tile (6)
N° 1 - Fixed half-shell (7)
N° 1 - Mobile half-shell (8)
