STMiN3E ed 09/11 MINI NIKE 3 E
Technical Documentation
Technical Documentation

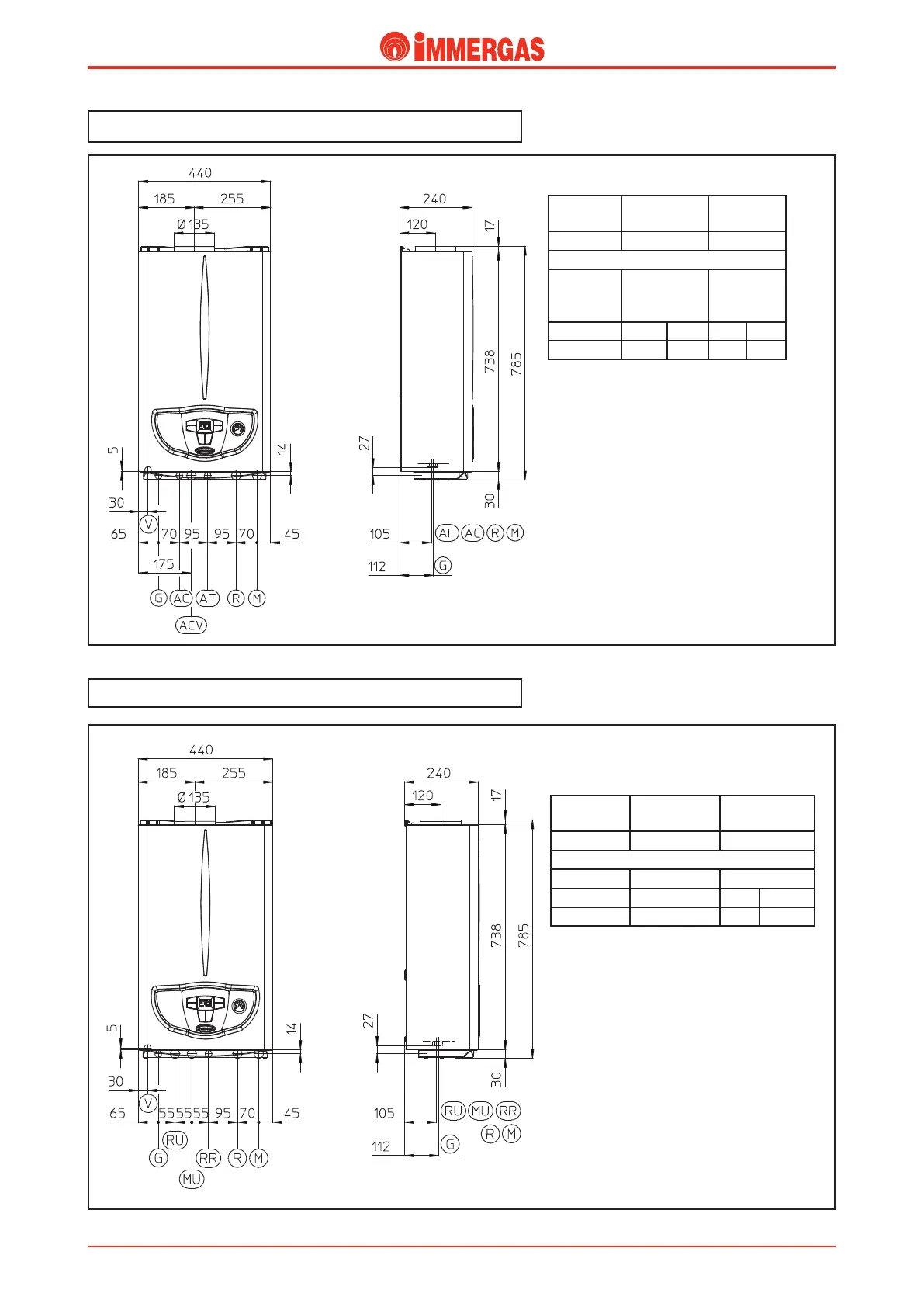

Main MINI NIKE 24 measurements and connections
Main MINI NIKE X 24 measurements and connections
Height
(mm)
Width
(mm)
Depth
(mm)
785 440 240
CONNECTIONS
GAS
DOMESTIC
HOT
WATER
SYSTEM
G AC AF R M
3/4” 1/2” 1/2” 3/4” 3/4”
Key:
G - Gas supply
AC - Domestic hot water outlet
ACV - Solar valve kit DHW inlet
(Optional)
AF - Domestic cold water inlet
R - System return
M - System ow
V - Electrical connection
N.B.: connection group (optional)
Key:
V - Electrical connection
G - Gas supply
RU - Storage tank unit return (optional)
MU - Storage tank unit ow (optional)
RR - System lling
R - System return
M - System ow
N.B.: connection group (optional)
Height
(mm)
Width
(mm)
Depth
(mm)
785 440 240
CONNECTIONS
GAS DOMESTIC SYSTEM
G RR R M
3/4” 1/2” 3/4” 3/4”
