11
STVP ed 02/06 VICTRIX Plus

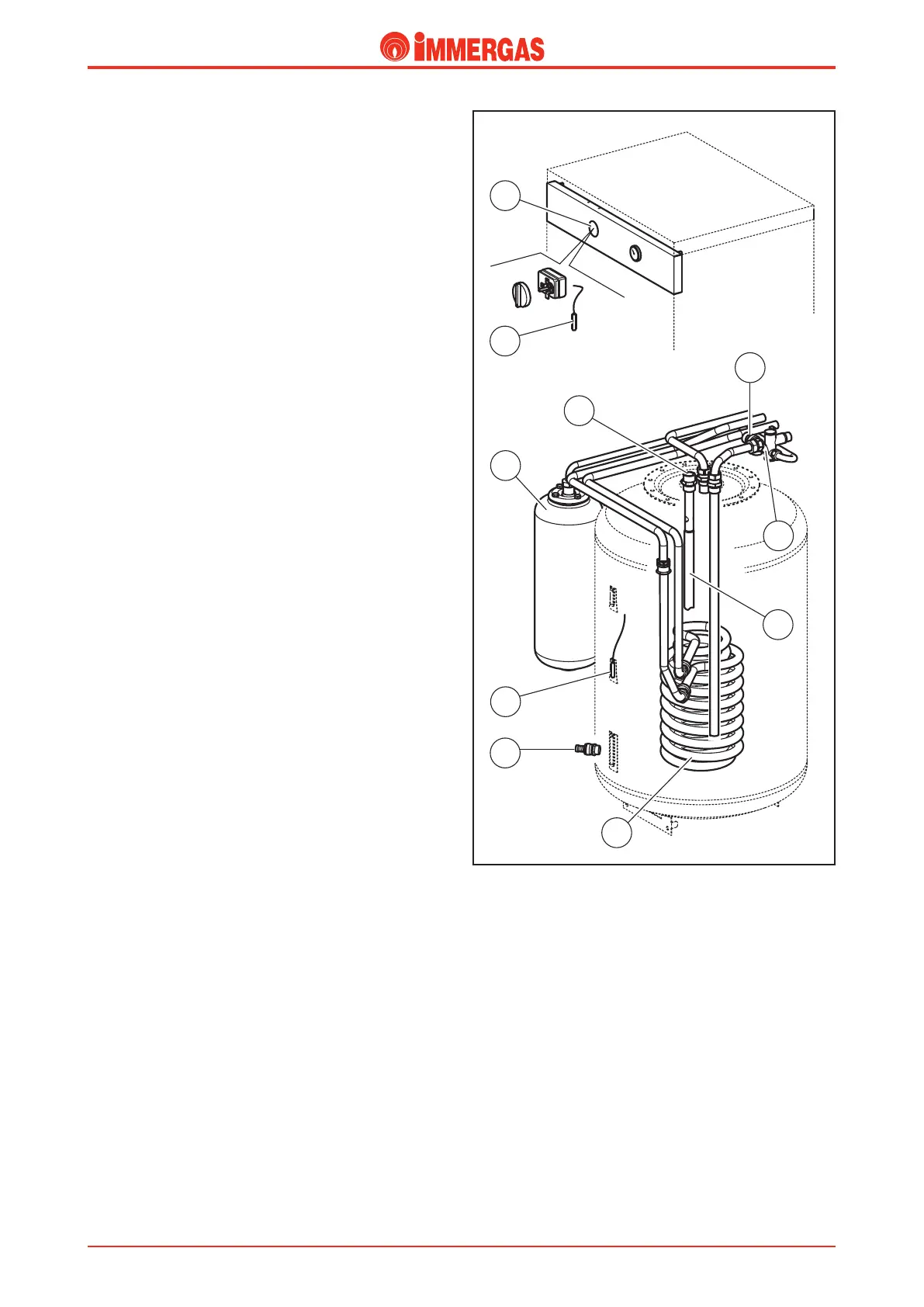

ON-OFF thermostat kit (12) (optional).
is kit adapts storage tank operation to systems with ON-
OFF type temperature control.
It consists of a thermostat whose bulb is put in place of the
NTC sensor and electrically wired to the storage tank’s control
panel terminal board.
It is adjusted by way of the control panel after having removed
the cap (13).
Recirculation kit (11)
(optional).
If your boiler includes a d.h.w. recirculation system, this kit
is used to connect it.
It consists of a pipe that is inserted in the storage tank after
have removed the anode (6) and relative cap.
With installation of the kit, the anode (6) has to be screwed
on the end of the pipe.
Note: the recirculation probe fitting (11) is already mounted
on the 105 and 200 litre storage tanks.
Domestic hot water drainage cock (10).
is brass cock features a hose-end fitting and is screwed on
the outside wall of the storage tank through which the water
inside the tank can be drained.
Storage tank NTC sensor (B4) (4).
anks to this sensor the modulating control board is able to
read the temperature of the water inside the storage tank.
It is fitted inside a bulb holder against the outside wall of the
storage tank.
Domestic hot water expansion vessel (9).
It offsets volume variations resulting from heating the water
in the storage tank.
It has a 4-litre capacity in the 80- and 105-litre versions, 5 litres
in the 120-litre version and 8 litres in the 200-litre version.
